Transmission

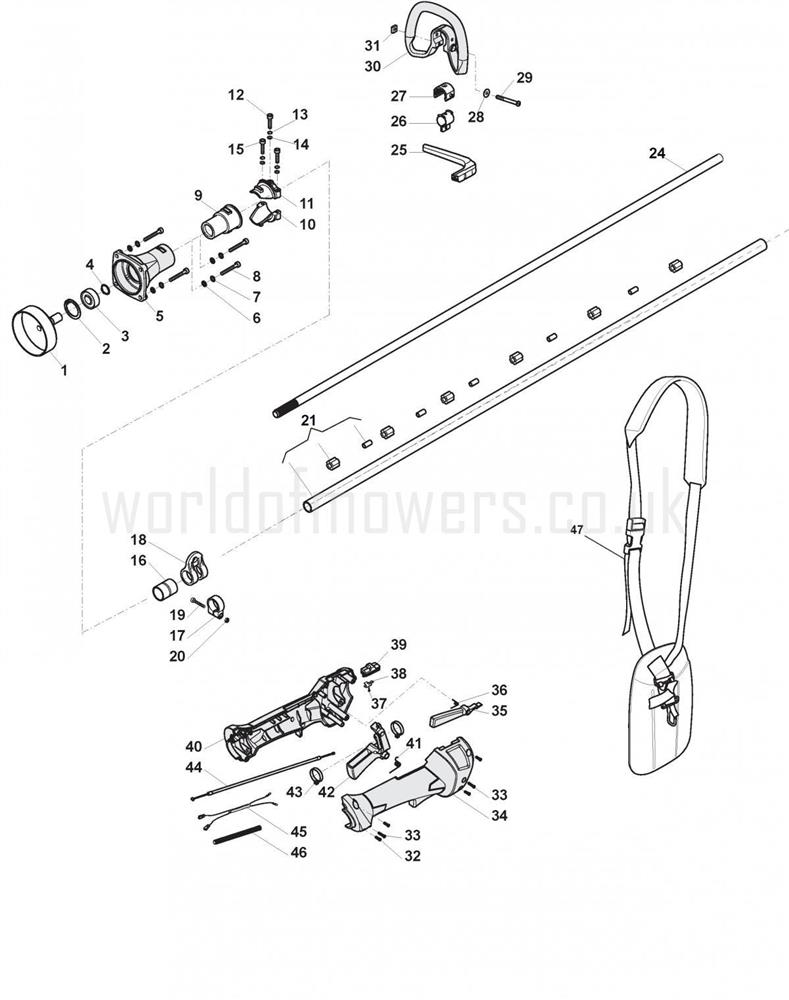

Transmission assembly details for Stiga SBC 627 K 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802459/0CLUTCH DRUM£15.21 Add to
002112610800/0CIRCLIP D=35£2.06 Add to
003119216048/0BEARING£18.27 Add to
004112609200/0CIRCLIP D=15£2.06 Add to
005118802458/0OUTPUT BLOCK (OBSOLETE)N/A
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
008112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
009118802582/0REDUCTION COLLAR£3.55 Add to
010118802584/0LOWER SUPPORT£3.55 Add to
011118802583/0UPPER SUPPORT£3.55 Add to
012112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
013112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
014112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0152132550SCREW TCCE M5 x 25£1.79 Add to
016118802586/0Plastic BushingsN/A POA
017118802587/0HARNESS SUPPORT ASSEMBLY£3.96 Add to
018118802585/0HARNESS SUPPORT HOOK£3.69 Add to
019112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
020112291000/0HEXAGON NUT M5£2.06 Add to
021118802491/0TRANSMISSION PIPE (OBSOLETE) (OBSOLETE)N/A
024118802457/0TRANSMISSION SHAFT£13.91 Add to
025118802535/0PROTECTIVE FRONT HANDLE BAR£3.69 Add to
026118802539/0LOCKING COLLAR£3.69 Add to
027118802537/0RUBBER SLEEVE£3.41 Add to
028112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
029118802542/0LOCKING SCREW£3.64 Add to
030118802534/0FRONT D HANDLE [GREY]£26.18 Add to
031112154320/0SELF-LOCKING NUT M5£2.06 Add to
032123878020/0TORX SCREW M4 x 10£1.79 Add to
033112727794/0CHEESE-HEAD SCREW M6 x 12£1.79 Add to
034118802471/0RIGHT HANDGRIP [GREY]£14.90 Add to
035118802472/0SAFETY TRIGGER [YELLOW]£2.06 Add to
036118802562/0TRIGGER TORSION SPRING£2.06 Add to
0372123070TORX SELF-THREAD SCREW£1.79 Add to
038118802468/0FLAMEOUT REED£3.55 Add to
039118802469/0FLAMEOUT SWITCH [RED]£2.06 Add to
040118802470/0LEFT HANDGRIP [GREY]£18.44 Add to
041118802474/0TRIGGER SPRING£2.06 Add to
042118802473/0THROTTLE TRIGGER [YELLOW]£2.06 Add to
043118802479/0FIXING RING£3.55 Add to
044118802476/0THROTTLE CABLE£7.23 Add to
045118802477/0Flame linesN/A POA
046118802478/0Conductor casingN/A POA
047118801327/0SINGLE HARNESS£12.96 Add to
