Transmission

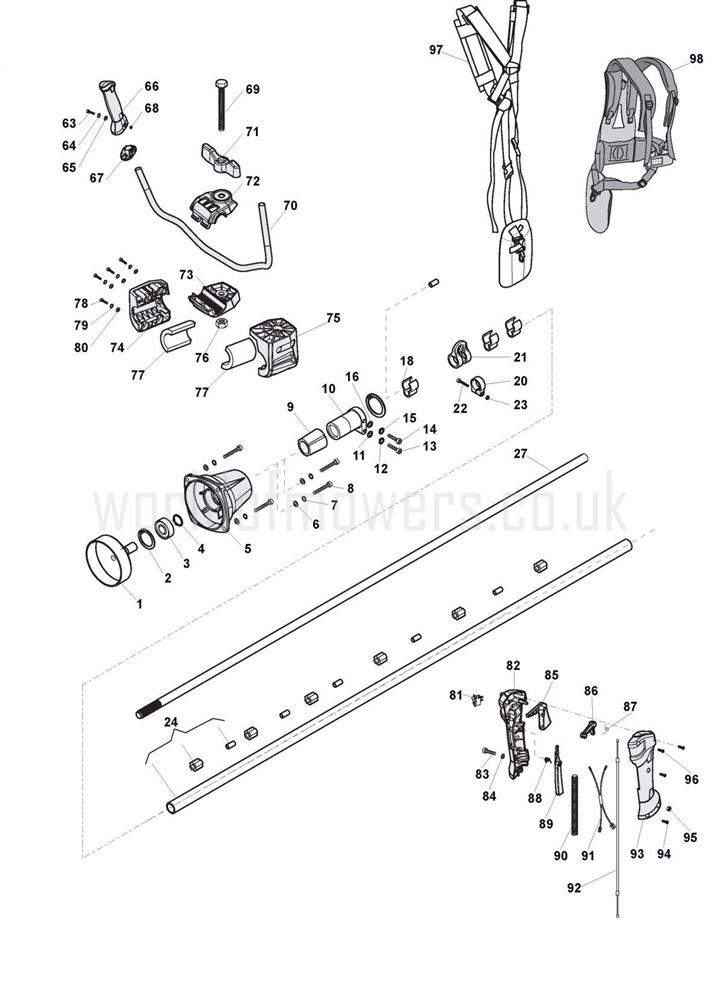

Transmission assembly details for Stiga SBC 635 KD 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802495/0CLUTCH DRUM£16.78 Add to
002112610800/0CIRCLIP D=35£2.06 Add to
003119216048/0BEARING£18.27 Add to
004112609200/0CIRCLIP D=15£2.06 Add to
005118802492/0OUTPUT BLOCK£27.41 Add to
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0082132180SCREW TCCE M6 x 25£1.79 Add to
009118802493/0OUTPUT BLOCK BUMPERS£3.55 Add to
010118802494/0CLAMPING SLEEVES£5.12 Add to
011112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0132132180SCREW TCCE M6 x 25£1.79 Add to
0142135010TORX SCREW M5 x 14 - NLA£1.79 Add to
015112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
016112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
018118802596/0WIRE BUCKLE£2.06 Add to
020118802588/0RING HOLDER - NLA£3.96 Add to
021118802587/0HARNESS SUPPORT ASSEMBLY£3.96 Add to
022112760475/0SCREW TC M5 x 20£2.06 Add to
023112291000/0HEXAGON NUT M5£2.06 Add to
024118802491/0TRANSMISSION PIPE (OBSOLETE) (OBSOLETE)N/A
027118802457/0TRANSMISSION SHAFT£13.91 Add to
0632122520ScrewN/A POA
064112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
065112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
066118802563/0LEFT HANDGRIP£16.91 Add to
067118802564/0HANDGRIP SUPPORT£3.55 Add to
068112291000/0HEXAGON NUT M5£2.06 Add to
069112691900/0HEX-HEAD SCREW£1.91 Add to
070118802482/0OPERATING HANDLE£22.93 Add to
071118802489/0LOCKING KNOB£3.55 Add to
072118802485/0HANDLE COVER£6.23 Add to
073118802486/0LOWER HANDLE COVER£6.23 Add to
074118802488/0HANDLEBAR HOLDER L/H£18.44 Add to
075118802487/0HANDLEBAR HOLDER R/H£10.33 Add to
076112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
077118802490/0RUBBER PAD£3.96 Add to
078112760475/0SCREW TC M5 x 20£2.06 Add to
079112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
080112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
081118800202/0EXTINCTION SWITCH£2.18 Add to
082118802557/0LEFT HANDLEBAR COVER£14.90 Add to
0832123110SCREW 4.8 x 35£1.79 Add to
084112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
085118802558/0TRIGGER£2.06 Add to
086118802559/0ADJUSTMENT LEVER£2.06 Add to
087118802560/0TORSION SPRING£2.18 Add to
088118802562/0TRIGGER TORSION SPRING£2.06 Add to
089118802561/0SAFETY LEVER£2.06 Add to
090118802598/0EARTH CABLE£5.87 Add to
091118802598/0EARTH CABLE£5.87 Add to
092118802483/0THROTTLE CABLE£7.10 Add to
093118802556/0RIGHT HANDLEBAR COVER£17.59 Add to
094112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
095112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
096123878020/0TORX SCREW M4 x 10£1.79 Add to
097118801312/0HarnessN/A POA
098123046002/0Harness£81.56 Add to
