Knap sack

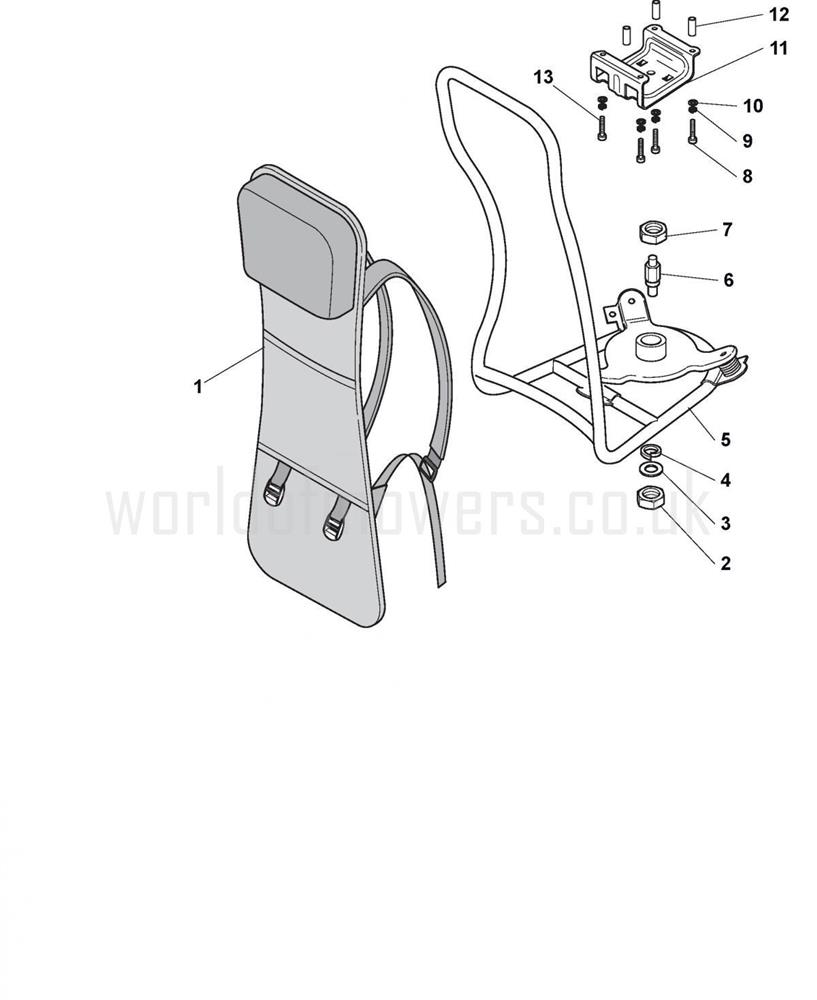

Knap sack assembly details for Stiga SBC 645 KF 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802517/0BACKPACK£64.32 Add to
002112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
003112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
004112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
005118802589/0BACK REST£34.35 Add to
006118802520/0AXIS OF ROTATION - NLA£3.69 Add to
007112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
008112728720/0ScrewN/A POA
009112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
010112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
011118802518/0BLACK BASE£31.89 Add to
012118802519/0GUO SETS£5.12 Add to
0132122520ScrewN/A POA
