Gear case

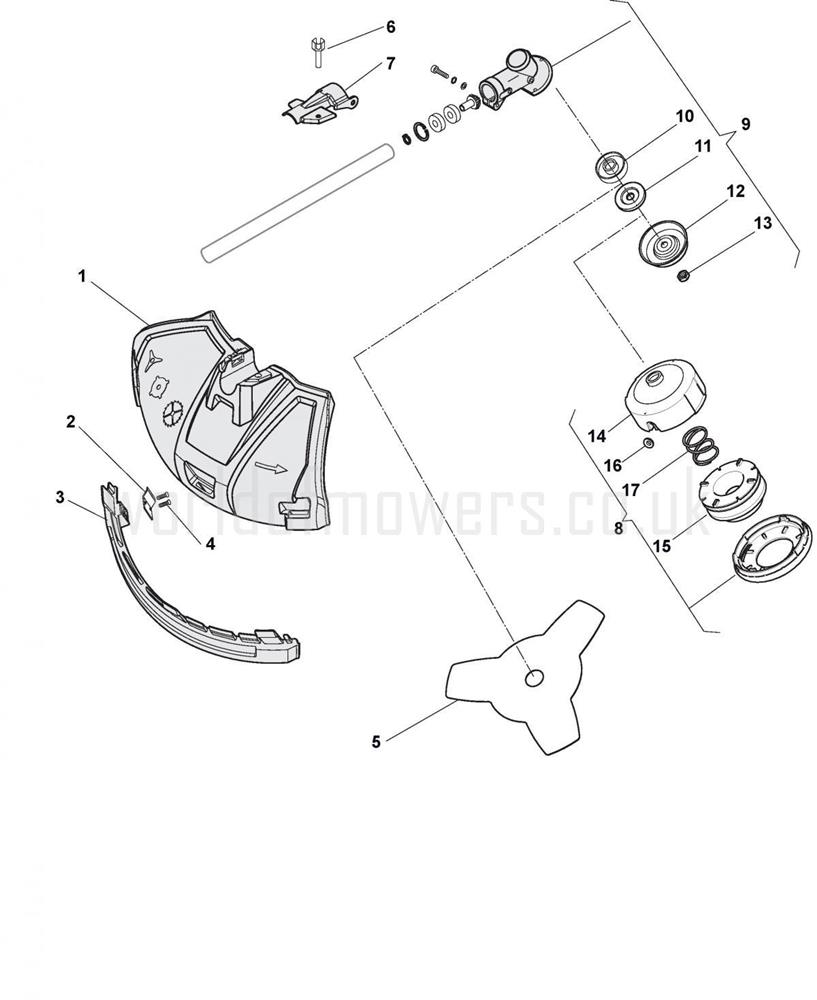

Gear case assembly details for Stiga SBC 653 KD [288421002-14] 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802323/0Safety Cover Assy£29.21 Add to
002118802578/0LINE CUTTER BLADE£3.55 Add to
003118802580/0Safety cover Ass.Y£9.94 Add to
004112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
0051911-9148-01BLADE 3 TEETH D=255mm£21.67 Add to
006118802579/0BOLT£4.78 Add to
007118802508/0Plate To 31-august-2014N/A POA
007118803481/0CONNECTION PLATE£5.73 Add to
0081911-9142-01NYLON HEAD [M10-FEMALE LH-THREAD]£32.99 Add to
009118802498/0GEAR CASE ASSEMBLY£110.66 Add to
009118803482/0GEAR CASE ASSEMBLY£61.60 Add to
010118802502/0UPPER RING NUT£12.00 Add to
010118803485/0BLADE PLATE£13.00 Add to
011118802503/0BLADE LOWER PLATE£5.46 Add to
011118803484/0BLADE LOWER PLATE£5.46 Add to
012118802504/0PROTECTIVE COVER£12.55 Add to
012118803483/0GEAR CASE DUST COVER£7.63 Add to
0132452090LEFT SELF-LOCKING NUT£5.73 Add to
014118804099/0NYLON HEAD COVER£7.36 Add to
015118804088/0SPOOL WITHOUT LINE£6.55 Add to
016118804089/0LINE RETAINER EYELET£2.32 Add to
017118804090/0SPRING£3.69 Add to
