Brushcutter Part

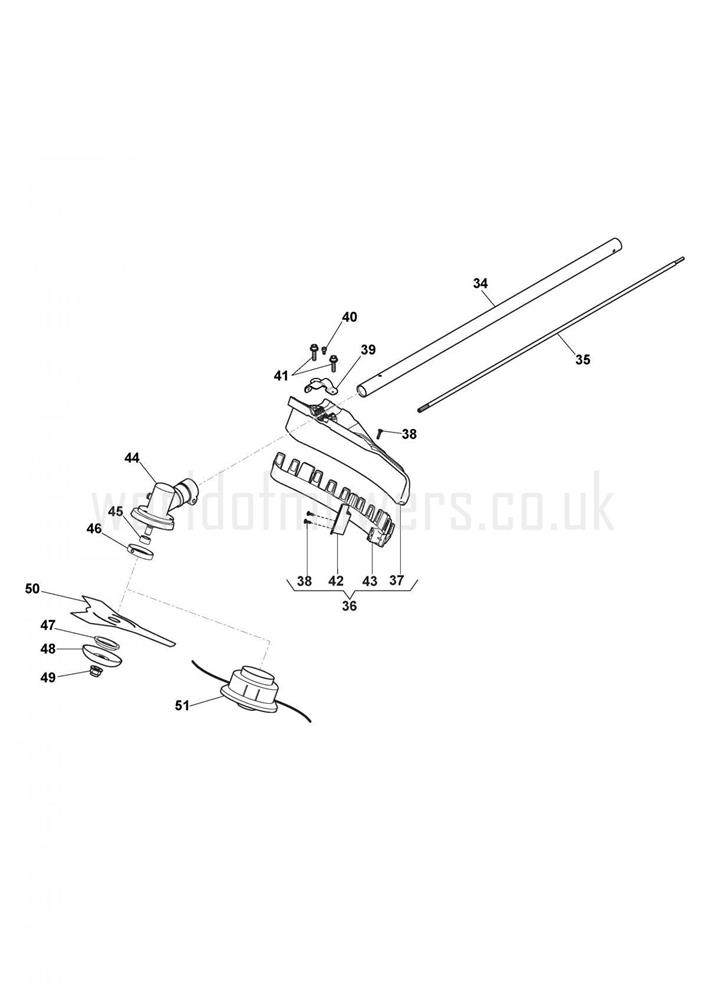

Brushcutter Part assembly details for Stiga SMT 226 - 5 in 1 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
034118803195/1BC 26cc SHORT TRANSMISSION PIPE ASSY£16.63 Add to
035118803197/0SHORT TRANSMISSION DRIVE SHAFT 26cc£27.11 Add to
036118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
037118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
0382123050SCREW TC 4.2 x 16£2.00 Add to
039118804054/0PLASTIC PROTECTION GUARD D26£2.87 Add to
0402122260SCREW TCCI 5 x 10£3.64 Add to
041112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
042118804056/0LINE CUTTER BLADE£2.18 Add to
043118803954/1SAFETY COVER ASSY£25.35 Add to
044118801184/0GEAR CASE ASSEMBLY£67.05 Add to
045118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
046118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
047118803205/0LOWER BLADE WASHER£3.89 Add to
048118803206/0GEAR CASE DUST COVER£3.83 Add to
0492452090LEFT SELF-LOCKING NUT£5.73 Add to
050118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
051118801124/0NYLON HEAD ASSEMBLY 2.4 x 5M£13.17 Add to
