Transmission

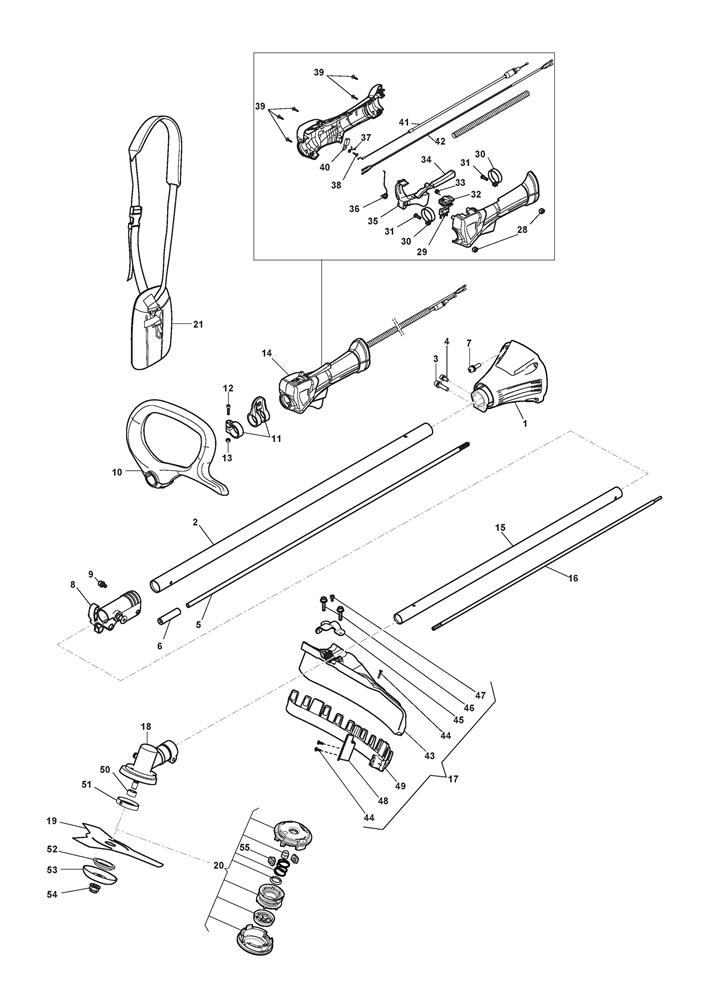

Transmission assembly details for Stiga SBC 226 J 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804899/0TRANSMISSION HUB BC 26cc£44.02 Add to
002118804900/0TRANSMISSION PIPE 26cc£13.64 Add to
0032135050TORX SCREW M5 x 30£1.79 Add to
0042135180TORX SCREW M5 x 12£1.79 Add to
005118803141/0LONG TRANSMISSION DRIVE SHAFT 26cc£13.91 Add to
006118803142/0SHAFT CONNECTOR£2.18 Add to
0072135150TORX SCREW M6 x 23£1.79 Add to
008118802099/0SHAFT CONNECTOR ASSEMBLY£17.72 Add to
0092135180TORX SCREW M5 x 12£1.79 Add to
010118804209/0FRONT HANDLE [YELLOW]£22.76 Add to
010118804210/0FRONT LOOP HANDLE [WHITE]£22.76 Add to
010118804211/0FRONT LOOP HANDLE [RED]£22.76 Add to
011118801182/0HARNESS SUPPORT SET£2.00 Add to
0122135020TORX SCREW M5 x 10£1.79 Add to
013112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
014118805302/0CONTROL HANDLE ASSEMBLY£26.18 Add to
015118803195/1BC 26cc SHORT TRANSMISSION PIPE ASSY£16.63 Add to
016118803197/0SHORT TRANSMISSION DRIVE SHAFT 26cc£27.11 Add to
017118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
018118801184/0GEAR CASE ASSEMBLY£67.05 Add to
019118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
0201911-9226-01NYLON HEAD [M10-FEMALE LH-THREAD] 109mm£19.22 Add to
021118804016/0SINGLE HARNESS£19.90 Add to
028118804189/0THREADED INSERT (OBSOLETE) (OBSOLETE)N/A
029118803145/0SWITCH£4.18 Add to
030118803146/0RING CLAMP£1.79 Add to
0316981269SCREW£3.64 Add to
032118803147/0ON/OFF SWITCH [RED]£1.79 Add to
033118803148/0SPRING£1.79 Add to
034118803149/0SAFETY SWITCH [YELLOW]£1.79 Add to
035118803150/0THROTTLE TRIGGER£1.79 Add to
036118803151/0SWITCH SPRING£1.79 Add to
037118803152/0SWITCH STOP SPRING£2.00 Add to
0382123060SELF-THREAD SCREW£1.79 Add to
039112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
040118803153/0SWITCH PART (OBSOLETE)N/A
041118803144/1HANDLE ASSEMBLY [YELLOW]£21.95 Add to
042118803155/0STOP CABLE 26cc£4.35 Add to
043118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
0442123050SCREW TC 4.2 x 16£2.00 Add to
045118804054/0PLASTIC PROTECTION GUARD D26£2.87 Add to
046112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
0472122260SCREW TCCI 5 x 10£3.64 Add to
048118804056/0LINE CUTTER BLADE£2.18 Add to
049118803954/1SAFETY COVER ASSY£25.35 Add to
050118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
051118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
052118803205/0LOWER BLADE WASHER£3.89 Add to
053118803206/0GEAR CASE DUST COVER£3.83 Add to
054112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
055118804890/0LINE RETAINER£5.73 Add to
