Engine

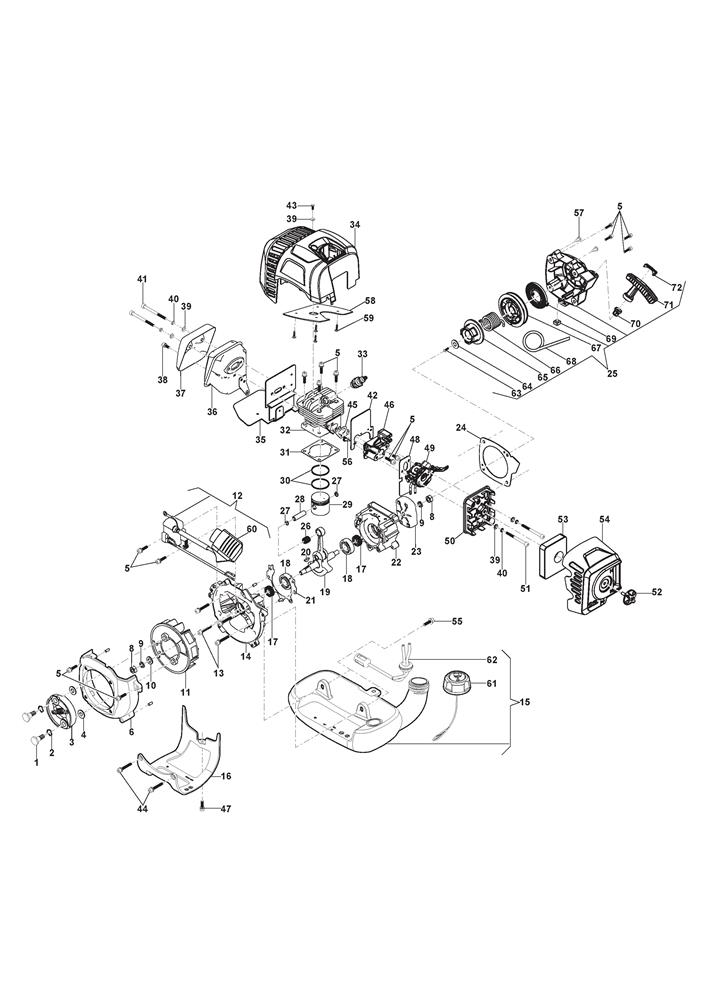

Engine assembly details for Stiga SBC 232 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804038/0SCREW£1.50 Add to
002118804045/0WASHER£1.58 Add to
003118804000/0CLUTCH ASSEMBLY£11.73 Add to
004118804046/0WASHER£1.58 Add to
005112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
006118804032/0TRANSMISSION SUPPORT CASE£10.82 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
009112369500/0SPRING WASHER D=8£1.79 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
011118804012/0FLYWHEEL£21.26 Add to
012118804011/0IGNITION COIL£31.34 Add to
0132135130TORX SCREW M5 x 35£1.79 Add to
014118804024/0FRONT-HALF CRANKCASE£16.36 Add to
015118804003/0FUEL TANK ASSEMBLY£16.55 Add to
016118803961/0FUEL TANK SUPPORT£8.44 Add to
017118801188/0OIL SEAL 12 x 22 x 7£1.79 Add to
0183112030BEARING 6201 C3£15.41 Add to
019118803988/0CRANKSHAFT£38.44 Add to
020123072002/0FLYWHEEL KEY£1.79 Add to
021118804076/0CRANKCASE GASKET£1.79 Add to
022118804026/0BACK-HALF CRANKCASE£15.13 Add to
023118803996/0STARTER CUP£4.78 Add to
024118804051/0STARTER GASKET£2.18 Add to
025118803994/0RECOIL ASSEMBLY c/w YELLOW INSERT£22.52 Add to
026118803997/0NEEDLE BEARING£3.41 Add to
027118804059/0PISTON PIN WASHER£1.58 Add to
028118804041/0PISTON PIN£2.06 Add to
029118804031/0PISTON 32.6cc£8.84 Add to
030118804021/0PISTON RING 32.6cc£2.59 Add to
031118804077/0CYLINDER GASKET£1.79 Add to
032118804030/0CYLINDER 32.6cc£41.17 Add to
0333210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
034118803969/0CYLINDER COVER [YELLOW]£15.41 Add to
035118804084/0MUFFLER GASKET£6.32 Add to
036118803991/0MUFFLER£37.08 Add to
037118804047/0MUFFLER PROTECTION£5.85 Add to
0382135180TORX SCREW M5 x 12£1.79 Add to
039112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0416981283SCREW OUTFIT£3.64 Add to
042118804053/0INTAKE MANIFOLD GASKET£2.47 Add to
043112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
0442135120SCREW TX M5 x 40£1.79 Add to
045118804078/0INLET PIPE GASKET£2.06 Add to
046118804067/0INTAKE MANIFOLD£3.49 Add to
0476981102SCREW SET (OBSOLETE)N/A
048118804082/0CARBURETTOR GASKET£2.06 Add to
049118804007/0CARBURETTOR£49.68 Add to
050118804063/0AIR FILTER BASE£2.06 Add to
0512135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
052118803174/0AIR FILTER KNOB [GREY]£3.00 Add to
053118804074/0AIR FILTER SPONGE£2.18 Add to
054118803968/0AIR FILTER COVER [YELLOW]£5.37 Add to
055112760475/0SCREW TC M5 x 20£2.06 Add to
0566981268SCREW£2.00 Add to
057112727356/0SELF-TAP SCREW TCB 3.5 x 16£2.06 Add to
058118804086/0AIR FILTER GUIDE£4.82 Add to
059112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
060118803163/0SPARK PLUG CAP£6.23 Add to
061322735152/1FUEL TANK CAP£3.72 Add to
062118804005/0FUEL PIPE SET£10.59 Add to
063112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
064112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
065118803975/0STARTER CAM£3.69 Add to
066118804061/0SPRING£2.87 Add to
067118803976/0STARTER PULLEY£7.10 Add to
068118803181/0RECOIL ROPE£3.00 Add to
069118804060/0STARTER SPRING£6.42 Add to
070118804068/0ROPE GUIDE£4.10 Add to
071118803984/0STARTER HANDLE£2.32 Add to
072118804069/0STARTER HANDLE INSERT£1.79 Add to
