Transmission

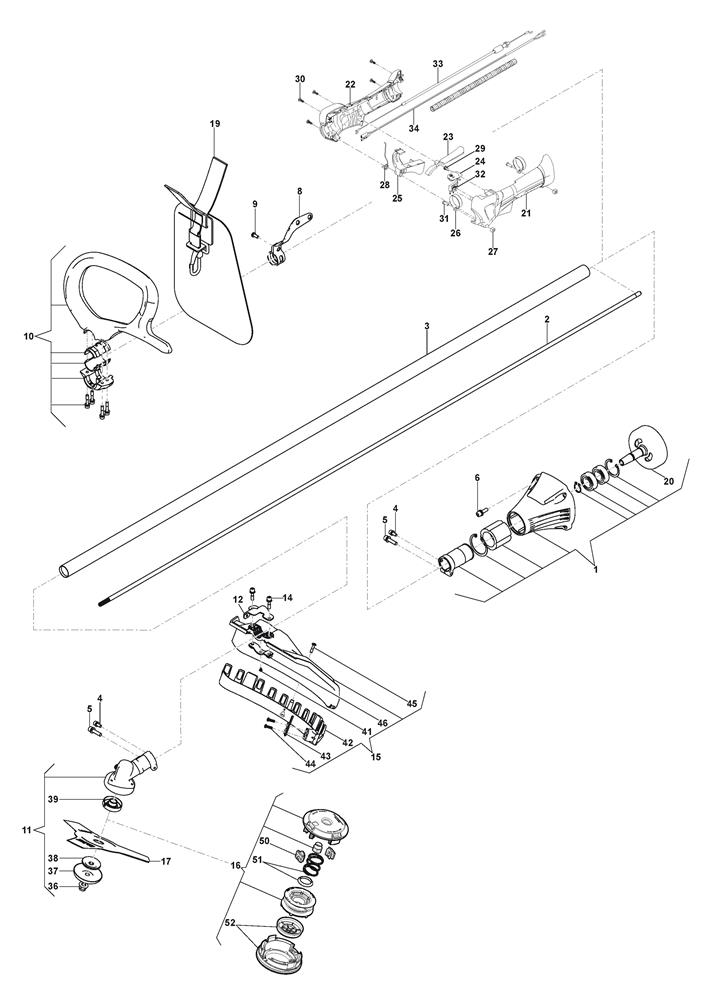

Transmission assembly details for Stiga SBC 232 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804001/0TRANSMISSION SUPPORT D=26£42.91 Add to
002118804042/0TRANSMISSION SHAFT£37.25 Add to
003118803959/0TRANSMISSION PIPE D=26£23.58 Add to
0046981145SCREW (OBSOLETE)N/A
0052132180SCREW TCCE M6 x 25£1.79 Add to
006112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
008118804057/0HARNESS CONNECTOR£3.56 Add to
0092135180TORX SCREW M5 x 12£1.79 Add to
010118803955/0FRONT LOOP HANDLE [YELLOW]£23.94 Add to
011118801184/0GEAR CASE ASSEMBLY£67.05 Add to
012118804054/0PLASTIC PROTECTION GUARD D26£2.87 Add to
0142132180SCREW TCCE M6 x 25£1.79 Add to
015118803954/0SAFETY COVER ASSEMBLY£19.85 Add to
0161911-9227-01NYLON HEAD [M10-FEMALE LH-THREAD] 130mm£21.26 Add to
017118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
019118804016/0SINGLE HARNESS£19.90 Add to
020118804037/0CLUTCH DRUM£14.45 Add to
021118803966/0LEFT HANDGRIP [YELLOW]£5.32 Add to
022118803972/0RIGHT HANDGRIP [YELLOW]£5.32 Add to
023118803149/0SAFETY SWITCH [YELLOW]£1.79 Add to
024118803147/0ON/OFF SWITCH [RED]£1.79 Add to
025118803150/0THROTTLE TRIGGER£1.79 Add to
026118803146/0RING CLAMP£1.79 Add to
027118804189/0THREADED INSERT (OBSOLETE) (OBSOLETE)N/A
028118803151/0SWITCH SPRING£1.79 Add to
029118803148/0SPRING£1.79 Add to
030112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
031112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
032118804014/0STOP SWITCH£2.47 Add to
033118803985/0THROTTLE CABLE£7.10 Add to
034118803155/0STOP CABLE 26cc£4.35 Add to
0362452090LEFT SELF-LOCKING NUT£5.73 Add to
037118803206/0GEAR CASE DUST COVER£3.83 Add to
038118803205/0LOWER BLADE WASHER£3.89 Add to
039118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
0416981268SCREW£2.00 Add to
042118803954/1SAFETY COVER ASSY£25.35 Add to
043118804056/0LINE CUTTER BLADE£2.18 Add to
0446981149SCREW£4.01 Add to
045112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
046118804058/0LOWER PROTECTION GUARD PLATE£2.14 Add to
050118804890/0LINE RETAINER£5.73 Add to
051118804889/0SPRING£3.83 Add to
052118804888/0COVER & KNOB£12.27 Add to
