Transmission

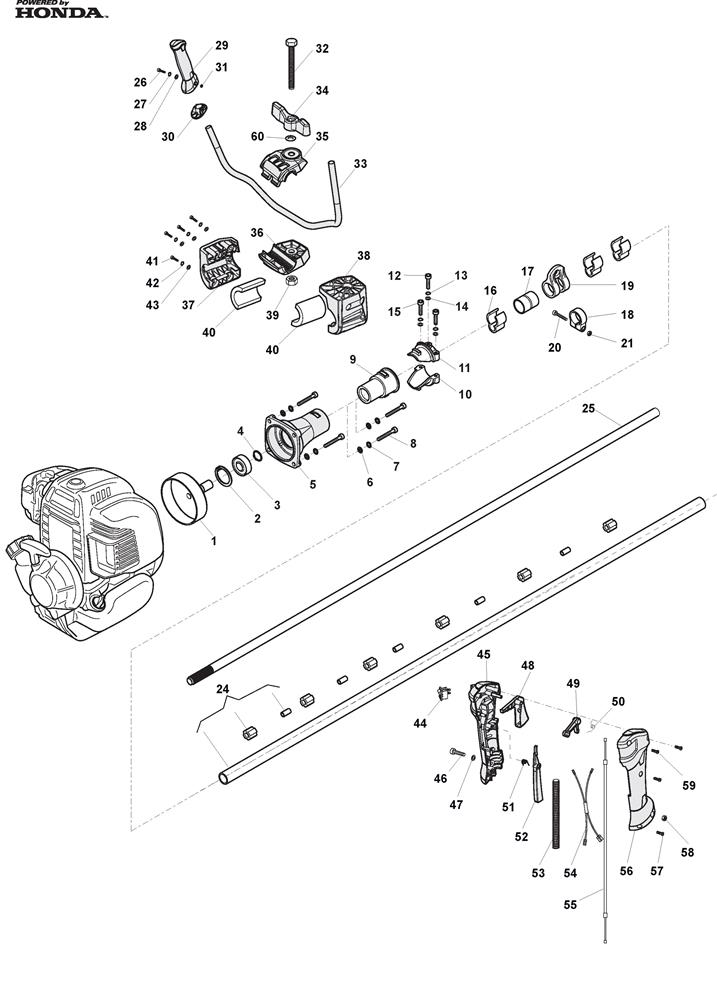

Transmission assembly details for Stiga SBC 425 HD 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802459/0CLUTCH DRUM£15.21 Add to
002112610800/0CIRCLIP D=35£2.06 Add to
003119216048/0BEARING£18.27 Add to
004112609200/0CIRCLIP D=15£2.06 Add to
005118802458/0OUTPUT BLOCK (OBSOLETE)N/A
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
008112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
009118802582/0REDUCTION COLLAR£3.55 Add to
010118802584/0LOWER SUPPORT£3.55 Add to
011118802583/0UPPER SUPPORT£3.55 Add to
012112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
013112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
014112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0152132550SCREW TCCE M5 x 25£1.79 Add to
016118802596/0WIRE BUCKLE£2.06 Add to
017118802586/0Plastic BushingsN/A POA
018118802585/0HARNESS SUPPORT HOOK£3.69 Add to
019118802587/0HARNESS SUPPORT ASSEMBLY£3.96 Add to
020112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
021112291000/0HEXAGON NUT M5£2.06 Add to
024118802481/0TRANSMISSION PIPE£35.71 Add to
025118802457/0TRANSMISSION SHAFT£13.91 Add to
0262122520ScrewN/A POA
027112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
028112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
029118802563/0LEFT HANDGRIP£16.91 Add to
030118802564/0HANDGRIP SUPPORT£3.55 Add to
031112154320/0SELF-LOCKING NUT M5£2.06 Add to
032112691900/0HEX-HEAD SCREW£1.91 Add to
033118802482/0OPERATING HANDLE£22.93 Add to
034118802489/0LOCKING KNOB£3.55 Add to
035118802485/0HANDLE COVER£6.23 Add to
036118802486/0LOWER HANDLE COVER£6.23 Add to
037118802488/0HANDLEBAR HOLDER L/H£18.44 Add to
038118802487/0HANDLEBAR HOLDER R/H£10.33 Add to
039112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
040118802490/0RUBBER PAD£3.96 Add to
0412132550SCREW TCCE M5 x 25£1.79 Add to
042112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
043112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
044118800202/0EXTINCTION SWITCH£2.18 Add to
045118802557/0LEFT HANDLEBAR COVER£14.90 Add to
0462122270SCREW TCCI M5 x 35£1.79 Add to
047112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
048118802558/0TRIGGER£2.06 Add to
049118802559/0ADJUSTMENT LEVER£2.06 Add to
050118802560/0TORSION SPRING£2.18 Add to
051118802562/0TRIGGER TORSION SPRING£2.06 Add to
052118802561/0SAFETY LEVER£2.06 Add to
053118802598/0EARTH CABLE£5.87 Add to
054118802598/0EARTH CABLE£5.87 Add to
055118802724/0THROTTLE CABLE£7.10 Add to
056118802556/0RIGHT HANDLEBAR COVER£17.59 Add to
057112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
058112154320/0SELF-LOCKING NUT M5£2.06 Add to
059123878020/0TORX SCREW M4 x 10£1.79 Add to
060112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
