Transmission

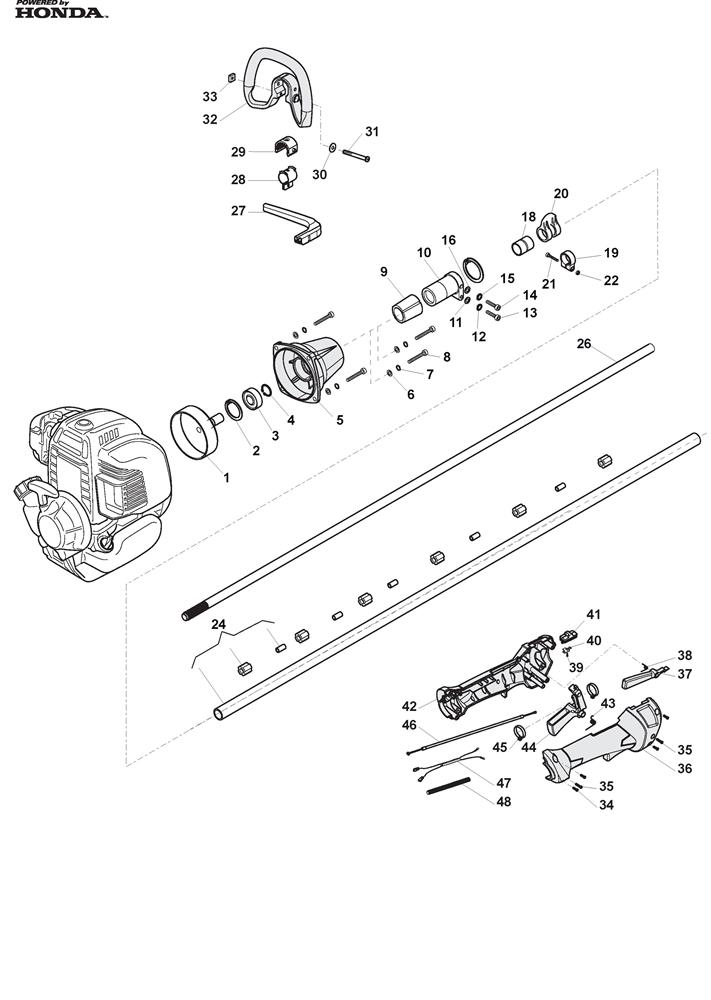

Transmission assembly details for Stiga SBC 435 H 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802495/0CLUTCH DRUM£16.78 Add to
002112610800/0CIRCLIP D=35£2.06 Add to
003119216048/0BEARING£18.27 Add to
004112609200/0CIRCLIP D=15£2.06 Add to
005118802492/0OUTPUT BLOCK£27.41 Add to
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0082132180SCREW TCCE M6 x 25£1.79 Add to
009118802493/0OUTPUT BLOCK BUMPERS£3.55 Add to
010118802494/0CLAMPING SLEEVES£5.12 Add to
011112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0132132180SCREW TCCE M6 x 25£1.79 Add to
0142135010TORX SCREW M5 x 14 - NLA£1.79 Add to
015112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
016112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
018118802586/0Plastic BushingsN/A POA
019118802588/0RING HOLDER - NLA£3.96 Add to
020118802587/0HARNESS SUPPORT ASSEMBLY£3.96 Add to
021112760475/0SCREW TC M5 x 20£2.06 Add to
022112291000/0HEXAGON NUT M5£2.06 Add to
024118802491/0TRANSMISSION PIPE (OBSOLETE) (OBSOLETE)N/A
026118802457/0TRANSMISSION SHAFT£13.91 Add to
027118802535/0PROTECTIVE FRONT HANDLE BAR£3.69 Add to
028118802539/0LOCKING COLLAR£3.69 Add to
029118802537/0RUBBER SLEEVE£3.41 Add to
030112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
031118802542/0LOCKING SCREW£3.64 Add to
032118802534/0FRONT D HANDLE [GREY]£26.18 Add to
033112154320/0SELF-LOCKING NUT M5£2.06 Add to
034123878020/0TORX SCREW M4 x 10£1.79 Add to
035112727794/0CHEESE-HEAD SCREW M6 x 12£1.79 Add to
036118802471/0RIGHT HANDGRIP [GREY]£14.90 Add to
037118802472/0SAFETY TRIGGER [YELLOW]£2.06 Add to
038118802562/0TRIGGER TORSION SPRING£2.06 Add to
0392123070TORX SELF-THREAD SCREW£1.79 Add to
040118802468/0FLAMEOUT REED£3.55 Add to
041118802469/0FLAMEOUT SWITCH [RED]£2.06 Add to
042118802470/0LEFT HANDGRIP [GREY]£18.44 Add to
043118802474/0TRIGGER SPRING£2.06 Add to
044118802473/0THROTTLE TRIGGER [YELLOW]£2.06 Add to
045118802479/0FIXING RING£3.55 Add to
046118802725/0THROTTLE CABLE£7.10 Add to
047118802477/0Flame linesN/A POA
048118802478/0Conductor casingN/A POA
