Engine 1

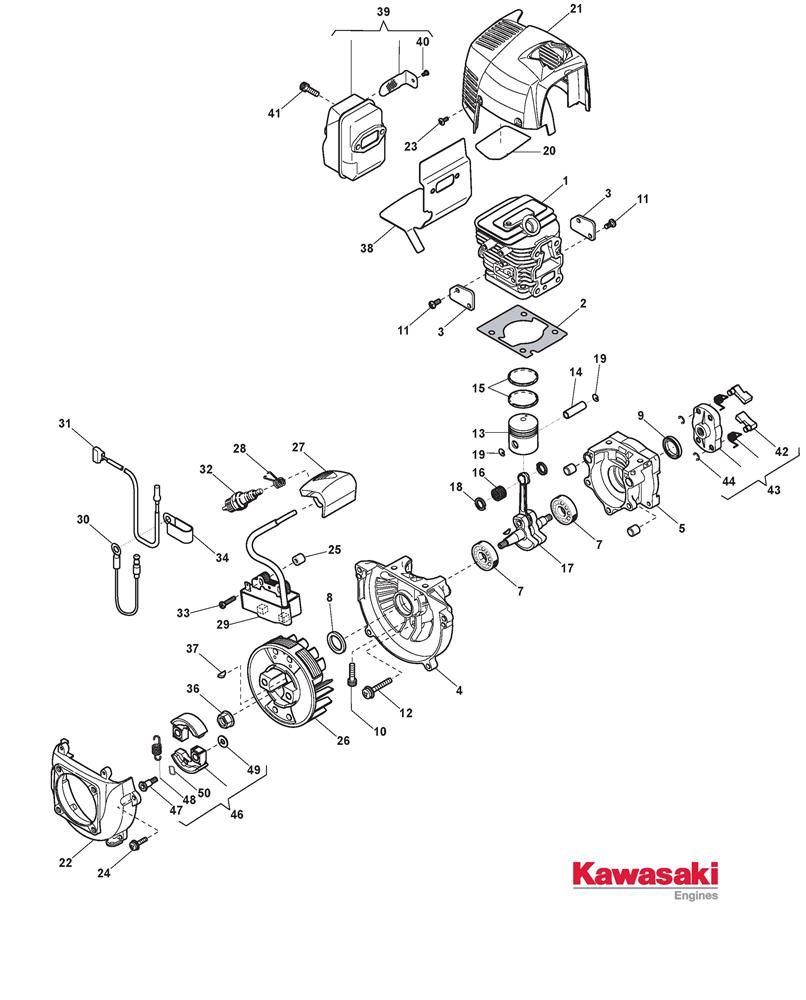

Engine 1 assembly details for Stiga SBC 627 K 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801961/0CYLINDER£198.80 Add to
002118801773/0CYLINDER GASKET£4.23 Add to
003118801814/0PLATE£2.00 Add to
004118801820/0CRANKCASE£84.77 Add to
005118801981/0CRANKCASE£76.59 Add to
007119216039/0BEARING 6001-2Z C3£3.69 Add to
008118801921/0Seal RingN/A POA
009118801994/0Seal RingN/A POA
0102135030TORX SCREW M5 x 20£1.79 Add to
011123878020/0TORX SCREW M4 x 10£1.79 Add to
0122135050TORX SCREW M5 x 30£1.79 Add to
013118801976/0PISTON£38.97 Add to
014118801796/0PISTON PIN£12.54 Add to
015118801801/0PISTON RING SET£20.72 Add to
016118801806/0BEARING-SMALL END£13.37 Add to
017118801885/0CRANKSHAFT£281.49 Add to
018118801907/0SPACER£4.66 Add to
019118801911/0CIRCLIP£1.50 Add to
020118801988/0PAD£3.55 Add to
021118802004/0CYLINDER COVER [YELLOW]£50.70 Add to
022118801895/0HOUSING-FAN£84.70 Add to
023123878020/0TORX SCREW M4 x 10£1.79 Add to
0242135040TORX SCREW M5 x 18£1.79 Add to
025118801830/0INSULATOR£2.07 Add to
026118801837/0FLYWHEEL£153.95 Add to
027118801842/0SPARK PLUG COVER£8.14 Add to
0283657050SPARK PLUG SPRING£3.83 Add to
029118801846/0IGNITION COIL£136.64 Add to
030118801851/0EARTH CABLE£2.86 Add to
031118801986/0COIL-SWITCH CABLE£6.87 Add to
0323210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0332132510SCREW TCCE M4 x 22 - NLA£1.79 Add to
034118801943/0CLAMP£2.18 Add to
0362432050Nut£4.01 Add to
0373151010FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70£1.79 Add to
038118801774/0MUFFLER GASKET£25.07 Add to
039118801868/0MUFFLER£80.76 Add to
040118801906/0SCREW£1.38 Add to
0412135040TORX SCREW M5 x 18£1.79 Add to
042118801812/0PAWL£3.81 Add to
043118801990/0RECOIL PULLEY£11.73 Add to
044118801912/0CIRCLIP£1.38 Add to
046118801810/0CLUTCH ASSEMBLY£76.83 Add to
047118801917/0PIN£7.92 Add to
048118801935/0SPRING£4.90 Add to
0492312080Washer£4.01 Add to
050118802002/0WASHER£2.32 Add to
