Engine 2

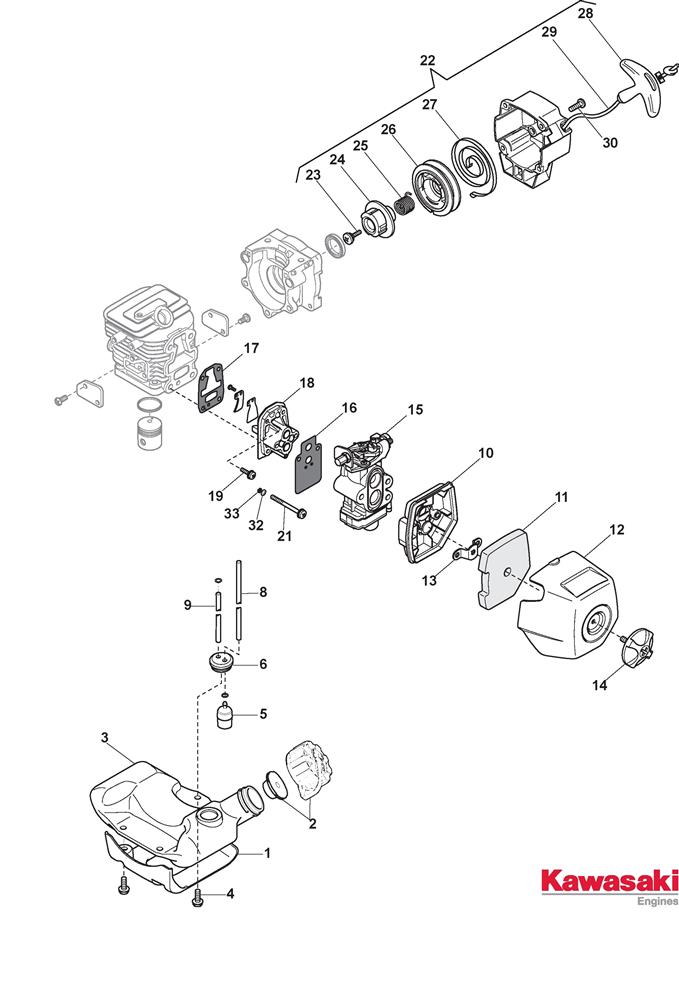

Engine 2 assembly details for Stiga SBC 627 K 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118801855/0	TANK SUPPORT	£7.92	Add to
002	118801957/0	FUEL CAP & BREATHER	£31.89	Add to
003	118801890/0	FUEL TANK	£42.53	Add to
004	2135030	TORX SCREW M5 x 20	£1.79	Add to
005	183520004/0	INTAKE FILTER	£18.36	Add to
006	118801926/0	GROMMET-FUEL TANK	£5.06	Add to
008	118801952/0	FUEL TUBE 3 x 5 x 174	£12.55	Add to
009	118801999/0	TUBE 3 x 6 x 80	£8.37	Add to
010	118801962/0	AIR FILTER BASE	£16.78	Add to
011	118801767/0	AIR FILTER	£5.85	Add to
012	118801974/0	FILTER COVER	£13.95	Add to
013	118801834/0	Baffle	N/A	POA
014	118801939/0	BOLT	£6.63	Add to
015	118801825/0	CARBURETTOR	£201.95	Add to
016	118801969/0	CARBURETTOR GASKET	£3.69	Add to
017	118801965/0	CYLINDER GASKET	£3.56	Add to
018	118801788/0	BREATHER VALVE ASSEMBLY	£73.87	Add to
019	2135040	TORX SCREW M5 x 18	£1.79	Add to
021	2135260	Screw	N/A	POA
022	118801876/0	RECOIL ASSEMBLY [BLACK]	£71.63	Add to
023	118801944/0	SCREW	£3.64	Add to
024	118801864/0	CAM	£30.48	Add to
025	118801996/0	SPRING	£6.95	Add to
026	118801900/0	RECOIL PULLEY	£12.27	Add to
027	118801929/0	RECOIL SPRING	£21.82	Add to
028	118801860/0	RECOIL HANDLE	£11.18	Add to
029	118801904/0	STARTER ROPE 3 x 700	£11.04	Add to
030	2132470	Screw	N/A	POA
032	2312020	FLAT WASHER 5 x 11 x 1	£1.79	Add to
033	2330020	GROWER WASHER D.5	£1.79	Add to
