Engine 2

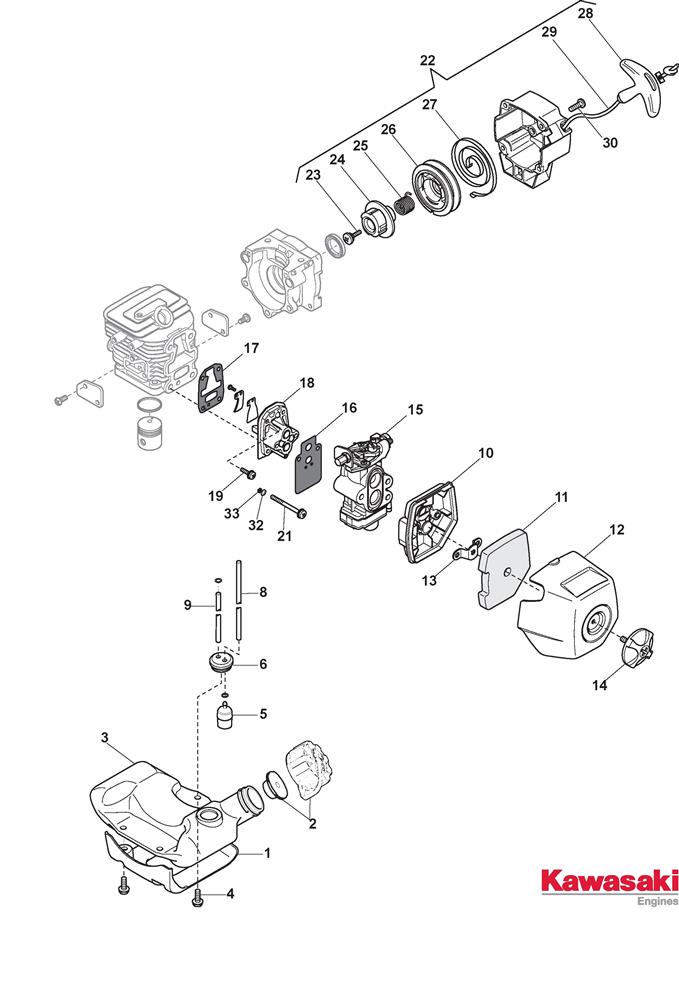

Engine 2 assembly details for Stiga SBC 627 KD 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801855/0TANK SUPPORT£7.92 Add to
002118801957/0FUEL CAP & BREATHER£31.89 Add to
003118801890/0FUEL TANK£42.53 Add to
0042135030TORX SCREW M5 x 20£1.79 Add to
005183520004/0INTAKE FILTER£18.36 Add to
006118801926/0GROMMET-FUEL TANK£5.06 Add to
008118801952/0FUEL TUBE 3 x 5 x 174£12.55 Add to
009118801999/0TUBE 3 x 6 x 80£8.37 Add to
010118801962/0AIR FILTER BASE£16.78 Add to
011118801767/0AIR FILTER£5.85 Add to
012118801974/0FILTER COVER£13.95 Add to
013118801834/0BaffleN/A POA
014118801939/0BOLT£6.63 Add to
015118801825/0CARBURETTOR£201.95 Add to
016118801969/0CARBURETTOR GASKET£3.69 Add to
017118801965/0CYLINDER GASKET£3.56 Add to
018118801788/0BREATHER VALVE ASSEMBLY£73.87 Add to
0192135040TORX SCREW M5 x 18£1.79 Add to
0212135260ScrewN/A POA
022118801876/0RECOIL ASSEMBLY [BLACK]£71.63 Add to
023118801944/0SCREW£3.64 Add to
024118801864/0CAM£30.48 Add to
025118801996/0SPRING£6.95 Add to
026118801900/0RECOIL PULLEY£12.27 Add to
027118801929/0RECOIL SPRING£21.82 Add to
028118801860/0RECOIL HANDLE£11.18 Add to
029118801904/0STARTER ROPE 3 x 700£11.04 Add to
0302132470ScrewN/A POA
0322312020FLAT WASHER 5 x 11 x 1£1.79 Add to
0332330020GROWER WASHER D.5£1.79 Add to
