Engine 2

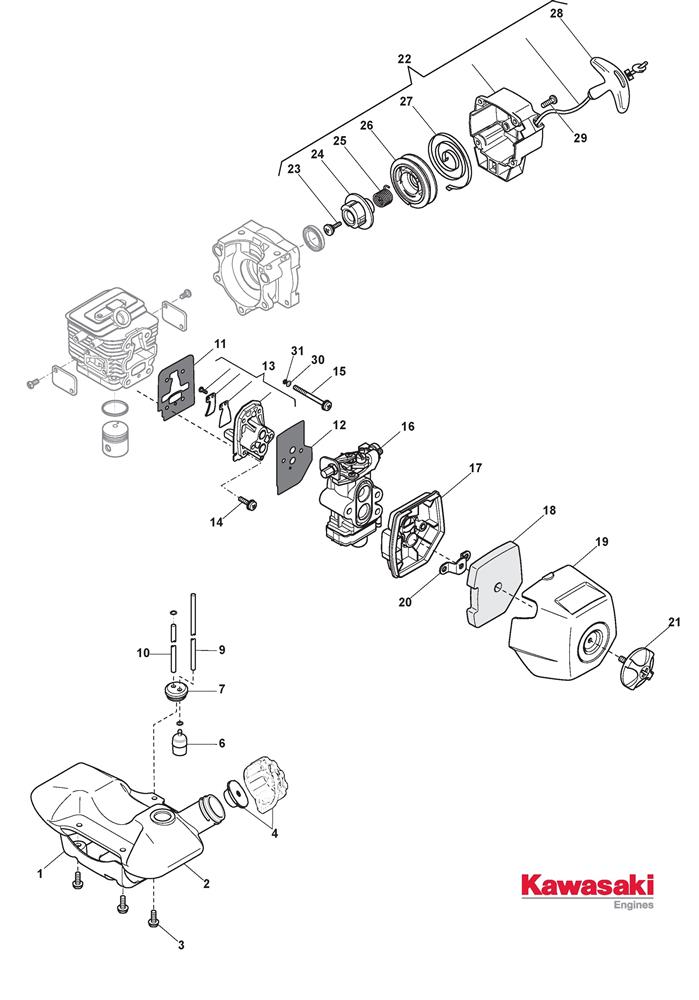

Engine 2 assembly details for Stiga SBC 635 K 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118801856/0	TANK SUPPORT	£8.14	Add to
002	118801891/0	FUEL TANK - NLA	£42.53	Add to
003	2135030	TORX SCREW M5 x 20	£1.79	Add to
004	118801957/0	FUEL CAP & BREATHER	£31.89	Add to
006	183520004/0	INTAKE FILTER	£18.36	Add to
007	118801926/0	GROMMET-FUEL TANK	£5.06	Add to
009	118801950/0	FUEL TUBE 3 x 5 x 182	£3.56	Add to
010	118801953/0	TUBE 3 x 6 x 90	£4.91	Add to
011	118801970/0	CYLINDER GASKET	£3.72	Add to
012	118801966/0	CARBURETTOR GASKET	£3.69	Add to
013	118801789/0	BREATHER VALVE ASSEMBLY	£76.51	Add to
014	2135030	TORX SCREW M5 x 20	£1.79	Add to
015	2135260	Screw	N/A	POA
016	118801826/0	CARBURETTOR	£245.56	Add to
017	118801764/0	AIR FILTER BASE	£16.94	Add to
018	118801768/0	AIR FILTER	£5.85	Add to
019	118801784/0	FILTER COVER	£13.24	Add to
020	118801834/0	Baffle	N/A	POA
021	118801939/0	BOLT	£6.63	Add to
022	118801877/0	RECOIL ASSEMBLY [BLACK]	£71.46	Add to
023	118801944/0	SCREW	£3.64	Add to
024	118801865/0	STARTER HUB	£34.35	Add to
025	118801936/0	SPRING	£2.87	Add to
026	118801901/0	RECOIL PULLEY	£15.41	Add to
027	118801931/0	SPRING	£20.01	Add to
028	118801859/0	RECOIL HANDLE	£11.36	Add to
029	2132470	Screw	N/A	POA
030	2312020	FLAT WASHER 5 x 11 x 1	£1.79	Add to
031	2330020	GROWER WASHER D.5	£1.79	Add to
