Gear case

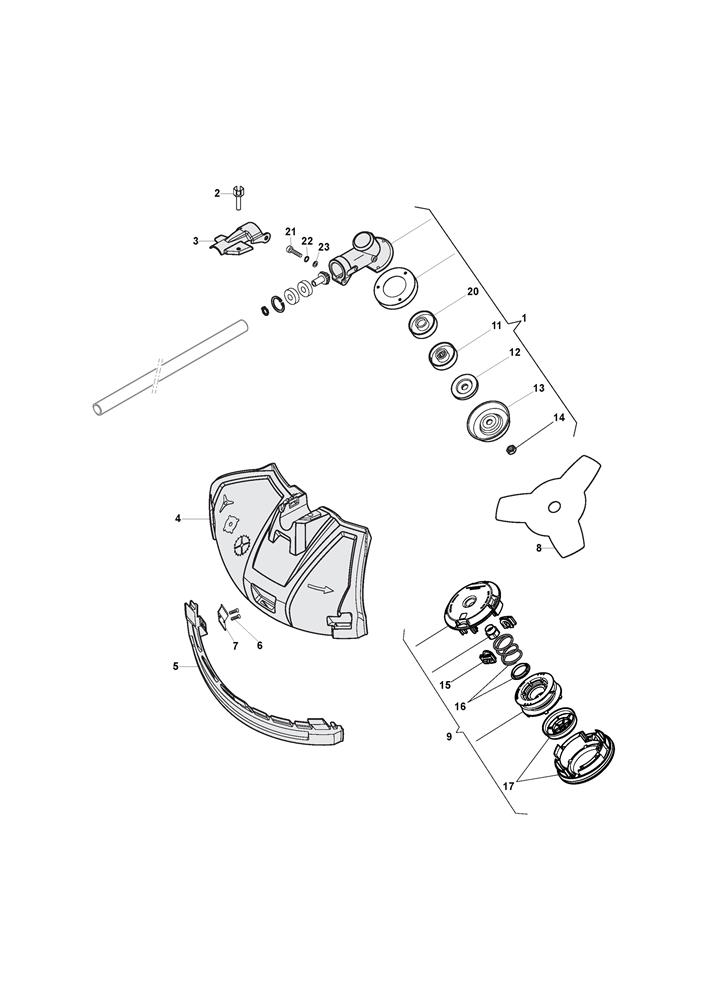

Gear case assembly details for Stiga SBC 635 K 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802460/0GEAR CASE ASSEMBLY£61.60 Add to
002118802579/0BOLT£4.78 Add to
003118802480/0CONNECTION PLATE£5.73 Add to
004118802323/0Safety Cover Assy£29.21 Add to
005118802580/0Safety cover Ass.Y£9.94 Add to
006123878121/0SCREW 4.2 x 13£1.79 Add to
007118802578/0LINE CUTTER BLADE£3.55 Add to
0081911-9146-01BLADE 3T (STIGA ACC.)£16.23 Add to
0091911-9227-01NYLON HEAD [M10-FEMALE LH-THREAD] 130mm£21.26 Add to
011118802464/0BLADE WASHER£5.52 Add to
012118802465/0LOWER BLADE WASHER£5.76 Add to
013118802466/0GEAR CASE DUST COVER£8.44 Add to
0142452090LEFT SELF-LOCKING NUT£5.73 Add to
015118804890/0LINE RETAINER£5.73 Add to
016118804889/0SPRING£3.83 Add to
017118804888/0COVER & KNOB£12.27 Add to
020118802467/0SHAFT COLLAR£5.32 Add to
0212132180SCREW TCCE M6 x 25£1.79 Add to
022112582100/0LOCK WASHER M6£2.06 Add to
023112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
