Engine 1

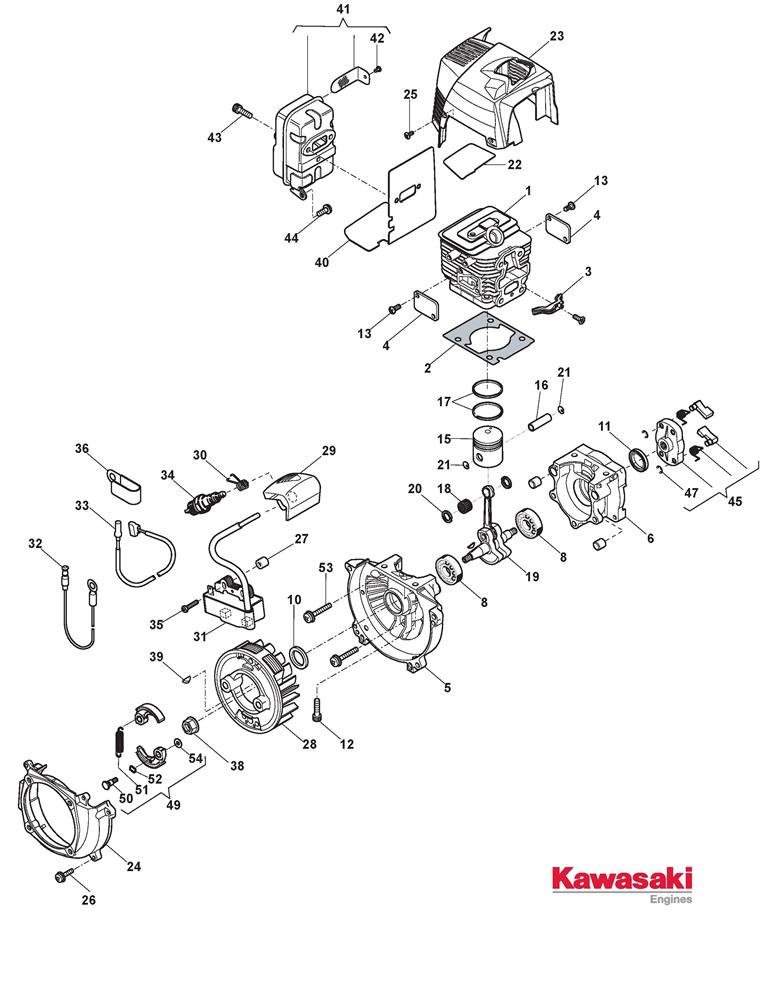

Engine 1 assembly details for Stiga SBC 635 KD 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801958/0CYLINDER£198.80 Add to
002118801775/0CYLINDER GASKET£4.35 Add to
003118801783/0CAP£13.91 Add to
004118801817/0PLATE£5.01 Add to
005118801821/0CRANKCASE£84.77 Add to
006118801982/0CRANKCASE£76.59 Add to
008119216038/0BEARING 6201-2RS C3£6.27 Add to
010118801921/0Seal RingN/A POA
011118801994/0Seal RingN/A POA
0122135030TORX SCREW M5 x 20£1.79 Add to
013123878020/0TORX SCREW M4 x 10£1.79 Add to
015118801975/0PISTON£38.89 Add to
016118801797/0PISTON PIN£35.71 Add to
017118801802/0PISTON RING SET£19.93 Add to
018118801807/0BEARING-SMALL END£13.47 Add to
019118801886/0CRANKSHAFT£308.97 Add to
020118801908/0SPACER 9 x 15 x 1.8£3.96 Add to
021118801913/0CIRCLIP£1.31 Add to
022118801989/0PAD£3.55 Add to
023118802005/0CYLINDER COVER [YELLOW]£43.16 Add to
024118801896/0HOUSING-FAN£84.70 Add to
025123878020/0TORX SCREW M4 x 10£1.79 Add to
0262135040TORX SCREW M5 x 18£1.79 Add to
027118801830/0INSULATOR£2.07 Add to
028118801838/0FLYWHEEL£153.16 Add to
029118801985/0SPARK PLUG COVER£8.14 Add to
0303657050SPARK PLUG SPRING£3.83 Add to
031118801847/0IGNITION COIL£170.61 Add to
032118801851/0EARTH CABLE£2.86 Add to
033118801986/0COIL-SWITCH CABLE£6.87 Add to
0343210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0352132510SCREW TCCE M4 x 22 - NLA£1.79 Add to
036118801942/0CLAMP£2.18 Add to
0382432050Nut£4.01 Add to
0393151010FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70£1.79 Add to
040118801776/0MUFFLER GASKET£17.86 Add to
041118801869/0MUFFLER£80.76 Add to
042118801906/0SCREW£1.38 Add to
0432135040TORX SCREW M5 x 18£1.79 Add to
0442135180TORX SCREW M5 x 12£1.79 Add to
045118801872/0RECOIL PULLEY£23.18 Add to
047118801912/0CIRCLIP£1.38 Add to
049118801811/0CLUTCH ASSEMBLY£78.88 Add to
050118801918/0PIN£8.28 Add to
051118801932/0SPRING£3.56 Add to
052118801956/0SPRING WASHER 10.5 x 14.5 x 0.3£2.38 Add to
0532135050TORX SCREW M5 x 30£1.79 Add to
0542312080Washer£4.01 Add to
