Engine 2

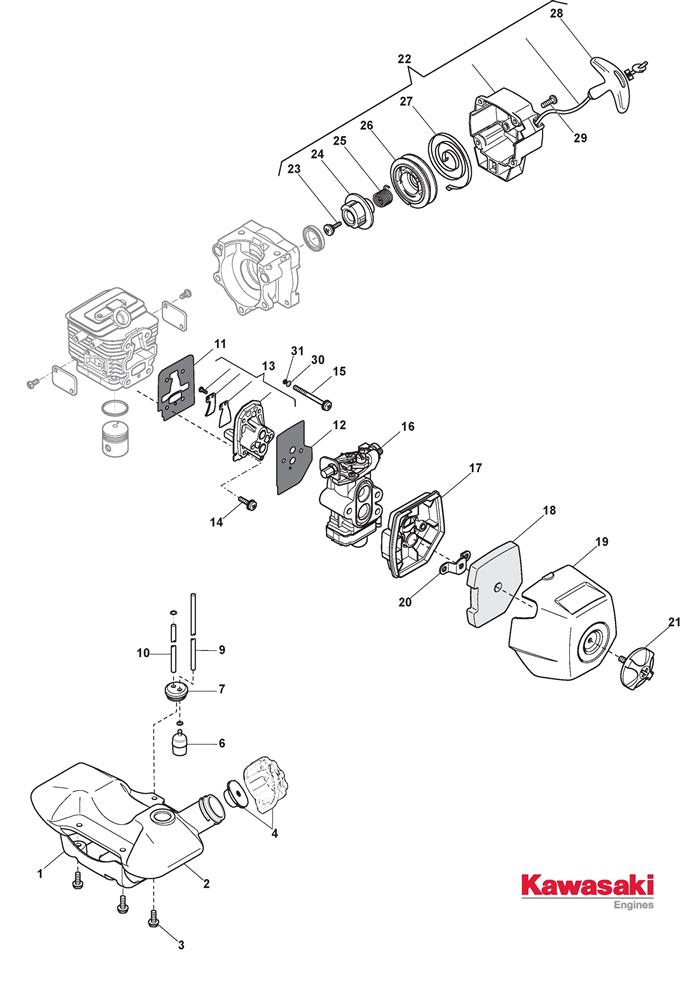

Engine 2 assembly details for Stiga SBC 635 KD 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801856/0TANK SUPPORT£8.14 Add to
002118801891/0FUEL TANK - NLA£42.53 Add to
0032135030TORX SCREW M5 x 20£1.79 Add to
004118801957/0FUEL CAP & BREATHER£31.89 Add to
006183520004/0INTAKE FILTER£18.36 Add to
007118801926/0GROMMET-FUEL TANK£5.06 Add to
009118801950/0FUEL TUBE 3 x 5 x 182£3.56 Add to
010118801953/0TUBE 3 x 6 x 90£4.91 Add to
011118801970/0CYLINDER GASKET£3.72 Add to
012118801966/0CARBURETTOR GASKET£3.69 Add to
013118801789/0BREATHER VALVE ASSEMBLY£76.51 Add to
0142135030TORX SCREW M5 x 20£1.79 Add to
0152135260ScrewN/A POA
016118801826/0CARBURETTOR£245.56 Add to
017118801764/0AIR FILTER BASE£16.94 Add to
018118801768/0AIR FILTER£5.85 Add to
019118801784/0FILTER COVER£13.24 Add to
020118801834/0BaffleN/A POA
021118801939/0BOLT£6.63 Add to
022118801877/0RECOIL ASSEMBLY [BLACK]£71.46 Add to
023118801944/0SCREW£3.64 Add to
024118801865/0STARTER HUB£34.35 Add to
025118801936/0SPRING£2.87 Add to
026118801901/0RECOIL PULLEY£15.41 Add to
027118801931/0SPRING£20.01 Add to
028118801859/0RECOIL HANDLE£11.36 Add to
0292132470ScrewN/A POA
0302312020FLAT WASHER 5 x 11 x 1£1.79 Add to
0312330020GROWER WASHER D.5£1.79 Add to
