Engine 1

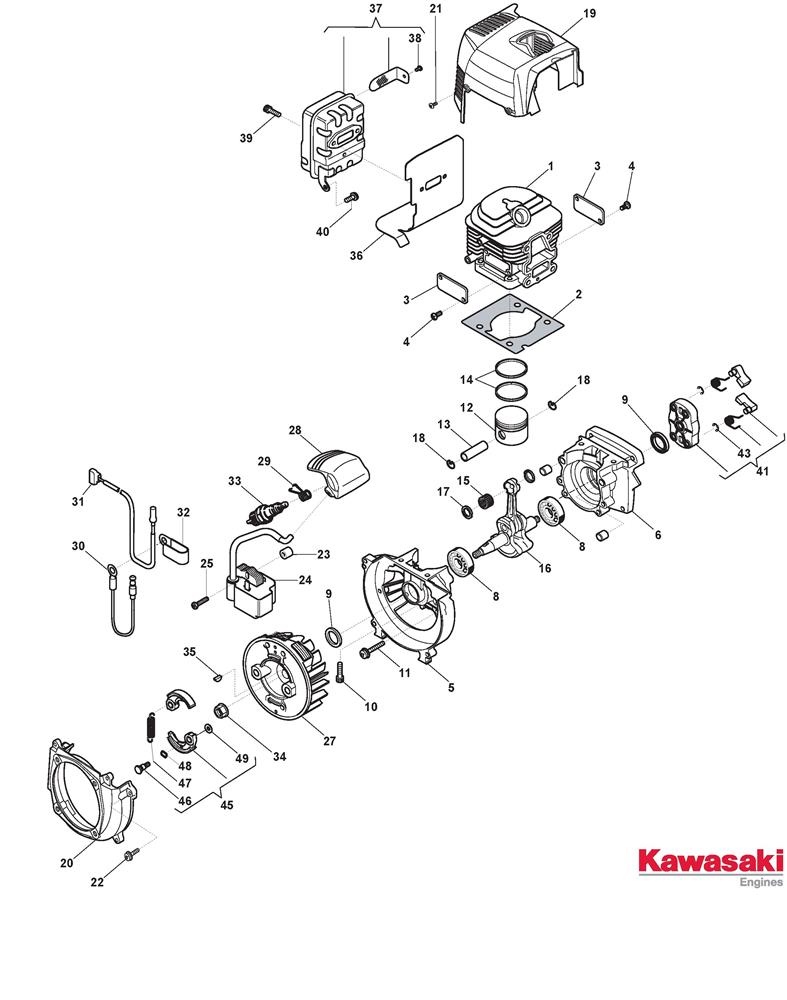

Engine 1 assembly details for Stiga SBC 645 K 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801959/0CYLINDER£227.14 Add to
002118801777/0CYLINDER GASKET£8.04 Add to
003118801815/0PLATE£2.07 Add to
004123878020/0TORX SCREW M4 x 10£1.79 Add to
005118801822/0CRANKCASE£105.95 Add to
006118801983/0CRANKCASE£81.55 Add to
008119216048/0BEARING£18.27 Add to
009118801922/0OIL SEAL£11.98 Add to
0102135030TORX SCREW M5 x 20£1.79 Add to
011112789210/0SCREW M5 x 35£2.06 Add to
012118801793/0PISTON£52.12 Add to
013118801798/0PISTON PIN£6.16 Add to
014118801803/0PISTON RING SET£20.24 Add to
015118801808/0BEARING-SMALL END£14.74 Add to
016118801887/0CRANKSHAFT£308.97 Add to
017118801909/0SPACER£3.00 Add to
018118801914/0CIRCLIP£1.31 Add to
019118802006/0CYLINDER COVER [YELLOW]£48.96 Add to
020118801897/0HOUSING-FAN£91.78 Add to
021123878020/0TORX SCREW M4 x 10£1.79 Add to
0222135040TORX SCREW M5 x 18£1.79 Add to
023118801830/0INSULATOR£2.07 Add to
024118801848/0IGNITION COIL£136.64 Add to
025112728685/0SELF-TAPPING SCREW D=4 x 25£4.10 Add to
027118801839/0FLYWHEEL£153.95 Add to
028118801843/0SPARK PLUG COVER£8.04 Add to
0293657050SPARK PLUG SPRING£3.83 Add to
030118801851/0EARTH CABLE£2.86 Add to
031118801986/0COIL-SWITCH CABLE£6.87 Add to
032118801942/0CLAMP£2.18 Add to
0333210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0342432050Nut£4.01 Add to
0353151010FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70£1.79 Add to
036118801778/0MUFFLER GASKET£29.21 Add to
037118801870/0MUFFLER£198.80 Add to
038118801906/0SCREW£1.38 Add to
0392135040TORX SCREW M5 x 18£1.79 Add to
0402135010TORX SCREW M5 x 14 - NLA£1.79 Add to
041118801873/0STARTER CUP ASSEMBLY£12.14 Add to
043118801912/0CIRCLIP£1.38 Add to
045118801811/0CLUTCH ASSEMBLY£78.88 Add to
046118801918/0PIN£8.28 Add to
047118801932/0SPRING£3.56 Add to
048118801956/0SPRING WASHER 10.5 x 14.5 x 0.3£2.38 Add to
0492312080Washer£4.01 Add to
