Engine 2

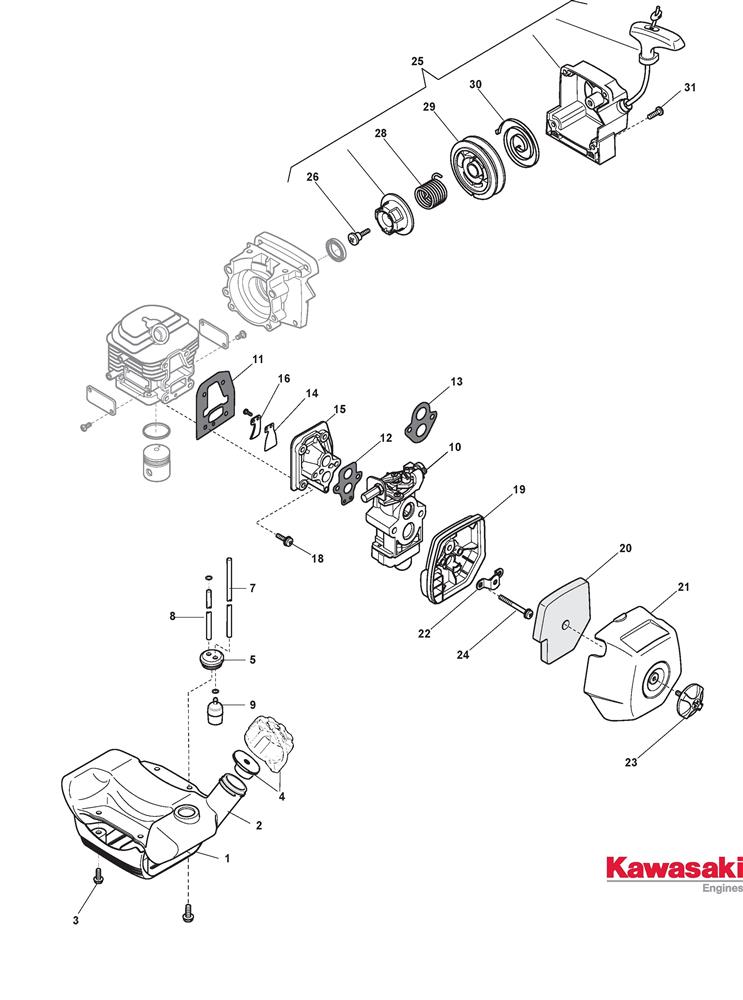

Engine 2 assembly details for Stiga SBC 645 K 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801857/0TANK SUPPORT£7.92 Add to
002118801892/0FUEL TANK£61.25 Add to
0032135030TORX SCREW M5 x 20£1.79 Add to
004118801957/0FUEL CAP & BREATHER£31.89 Add to
005118801926/0GROMMET-FUEL TANK£5.06 Add to
007118801949/0FUEL LINE 3 x 5 x 200£3.56 Add to
008118801954/0TUBE 3 x 6 x 105£10.79 Add to
009183520004/0INTAKE FILTER£18.36 Add to
010118801827/0CARBURETTOR£201.95 Add to
011118801973/0CYLINDER GASKET£7.92 Add to
012118801967/0CARBURETTOR GASKET£2.93 Add to
013118801971/0GASKET£2.87 Add to
014118801791/0BREATHER VALVE ASSEMBLY£11.12 Add to
015118801832/0INSULATOR£14.50 Add to
016118801854/0STOPPER£2.47 Add to
0182135060TORX SCREW M5 x 25£2.00 Add to
019118801765/0AIR FILTER BASE£16.91 Add to
020118801769/0AIR FILTER£5.85 Add to
021118801785/0FILTER COVER£6.32 Add to
022118801834/0BaffleN/A POA
023118801939/0BOLT£6.63 Add to
0242135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
025118801878/0RECOIL ASSEMBLY [BLACK]£90.98 Add to
026118801945/0SCREW£2.61 Add to
028118801998/0SPRING£2.87 Add to
029118801902/0RECOIL PULLEY£15.59 Add to
030118801937/0RECOIL SPRING£22.05 Add to
0312135030TORX SCREW M5 x 20£1.79 Add to
