Transmission

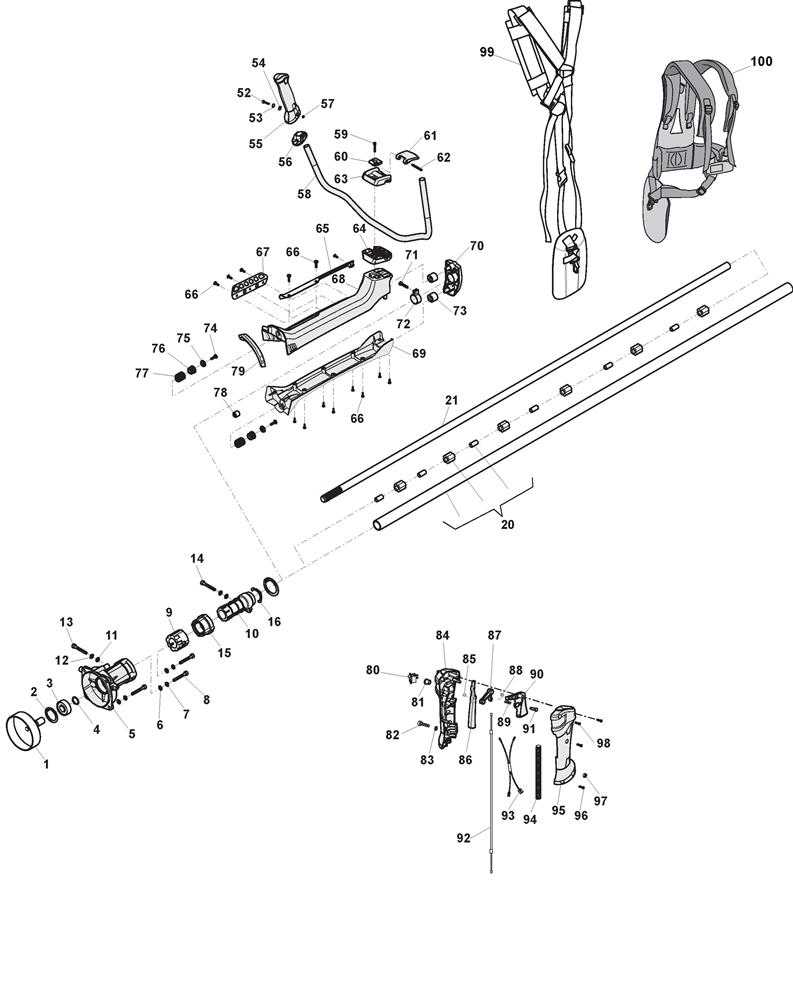

Transmission assembly details for Stiga SBC 645 KD 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802495/0CLUTCH DRUM£16.78 Add to
002112610800/0CIRCLIP D=35£2.06 Add to
003119216048/0BEARING£18.27 Add to
004112609200/0CIRCLIP D=15£2.06 Add to
005118802497/0OUTPUT BLOCK£31.89 Add to
006112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
007112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0082132590SCREW TCCE M6X18£2.00 Add to
009118802553/0REAR SHOCK ABSORBER£2.06 Add to
010118802554/0TUBE£9.54 Add to
011112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
013112727794/0CHEESE-HEAD SCREW M6 x 12£1.79 Add to
0142132180SCREW TCCE M6 x 25£1.79 Add to
015118802552/0FRONT SHOCK ABSORBER£2.06 Add to
016118802555/0SMALL TUBE RETAINER£2.87 Add to
020118803479/0TRANSMISSION PIPE D.28£49.76 Add to
021118802457/0TRANSMISSION SHAFT£13.91 Add to
0522122520ScrewN/A POA
053112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
054112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
055118802563/0LEFT HANDGRIP£16.91 Add to
056118802564/0HANDGRIP SUPPORT£3.55 Add to
057112291000/0HEXAGON NUT M5£2.06 Add to
058118802482/0OPERATING HANDLE£22.93 Add to
059118802577/0BRACKET LOCKING SCREW£3.55 Add to
060118802575/0LOCKING PLATE£2.06 Add to
061118802574/0LOCKING HANDLE£3.81 Add to
062118802576/0SHAFT£1.79 Add to
063118805150/0HANDLE LOCK ASSEMBLY£18.27 Add to
064118805150/0HANDLE LOCK ASSEMBLY£18.27 Add to
065118802507/0CABLE COVER£3.69 Add to
066112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
067118802567/0HANGING PLATE£10.33 Add to
068118802505/0UPPER GUARD£27.41 Add to
069118802506/0LOWER GUARD£13.91 Add to
070118802566/0DAMPING SUPPORT BASE£6.23 Add to
071112728519/0SELF-TAP SCREW TCB 5.5 x 16£1.79 Add to
072118802565/0LOCKING COLLAR£3.96 Add to
073118802569/0FRONT BUMPER£2.06 Add to
074112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
0752312150WASHER 5.5 x 15 x 1.5£1.79 Add to
076118802570/0SHOCK ABSORBER£2.06 Add to
077118802568/0SHOCK ABSORBER SPRING£2.18 Add to
078118802571/0SHOCK ABSORBER£2.06 Add to
079118802527/0RUBBER GUARD£3.41 Add to
080118800202/0EXTINCTION SWITCH£2.18 Add to
081118802524/0CONCENTRATED BUTTON£2.06 Add to
0822123110SCREW 4.8 x 35£1.79 Add to
083112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
084118802557/0LEFT HANDLEBAR COVER£14.90 Add to
085118802562/0TRIGGER TORSION SPRING£2.06 Add to
086118802561/0SAFETY LEVER£2.06 Add to
087118802559/0ADJUSTMENT LEVER£2.06 Add to
088118802560/0TORSION SPRING£2.18 Add to
089118802525/0CONCENTRATED BUTTON SPRING£2.06 Add to
090118802558/0TRIGGER£2.06 Add to
091118802526/0CONCENTRATED BUTTON PIN£2.06 Add to
092118802483/0THROTTLE CABLE£7.10 Add to
093118802598/0EARTH CABLE£5.87 Add to
094118802598/0EARTH CABLE£5.87 Add to
095118802556/0RIGHT HANDLEBAR COVER£17.59 Add to
096112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
097112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
098123878020/0TORX SCREW M4 x 10£1.79 Add to
099118801312/0HarnessN/A POA
100123046002/0Harness£81.56 Add to
