Engine 1

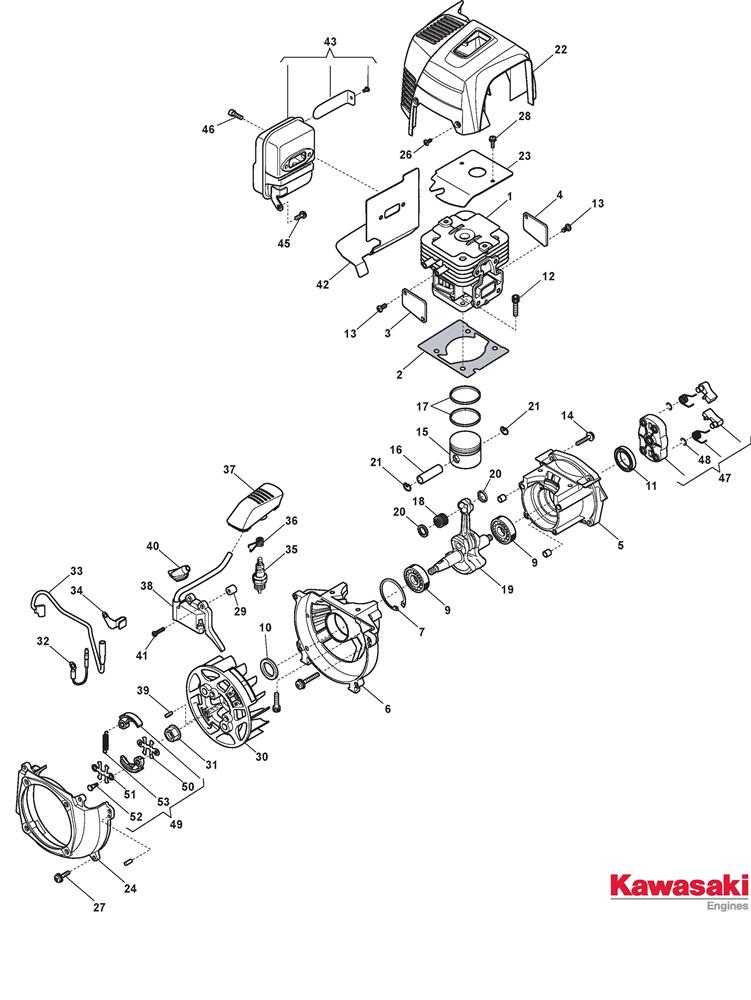

Engine 1 assembly details for Stiga SBC 653 K 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801960/0CYLINDER£231.86 Add to
002118801779/0CYLINDER GASKET£9.31 Add to
003118801818/0PLATE£2.06 Add to
004118801979/0PLATE£2.06 Add to
005118801823/0CRANKCASE£113.98 Add to
006118801984/0CRANKCASE£146.13 Add to
007118801915/0CIRCLIP£1.58 Add to
009118801919/0BEARING£17.72 Add to
010118801923/0OIL SEAL£13.64 Add to
011118801995/0OIL SEAL£11.98 Add to
012118801940/0BOLT£1.38 Add to
013118801946/0SCREW 4 x 8£1.31 Add to
0142135120SCREW TX M5 x 40£1.79 Add to
015118801794/0PISTON£59.19 Add to
016118801799/0PISTON PIN£6.55 Add to
017118801804/0PISTON RING SET£23.54 Add to
018118801808/0BEARING-SMALL END£14.74 Add to
019118801888/0CRANKSHAFT£492.25 Add to
020118801910/0SPACER£3.00 Add to
021118801916/0PISTON PIN CIRCLIP£1.38 Add to
022118802007/0CYLINDER COVER [YELLOW]£48.96 Add to
023118801992/0CYLINDER PLATE£7.78 Add to
024118801898/0HOUSING-FAN£98.40 Add to
026123878020/0TORX SCREW M4 x 10£1.79 Add to
0272135040TORX SCREW M5 x 18£1.79 Add to
0282135180TORX SCREW M5 x 12£1.79 Add to
029118801831/0INSULATOR£2.06 Add to
030118801840/0FLYWHEEL£153.95 Add to
031123120005/0Nut£4.01 Add to
032118801852/0EARTH CABLE£3.00 Add to
033118801987/0COIL SWITCH CABLE£5.73 Add to
034118801948/0CLAMP£2.18 Add to
0353210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0363657050SPARK PLUG SPRING£3.83 Add to
037118801844/0SPARK PLUG CAP£8.04 Add to
038118801849/0IGNITION COIL£136.64 Add to
0393151050FLYWHEEL KEY 3 x 5 x 12.65£6.14 Add to
040118801927/0GROMMET£2.06 Add to
0412132510SCREW TCCE M4 x 22 - NLA£1.79 Add to
042118801780/0MUFFLER GASKET£28.90 Add to
043118801871/0MUFFLER£106.73 Add to
0452135010TORX SCREW M5 x 14 - NLA£1.79 Add to
0462135040TORX SCREW M5 x 18£1.79 Add to
047118801874/0STARTER CUP ASSEMBLY£12.14 Add to
048118801912/0CIRCLIP£1.38 Add to
049118801977/0CLUTCH ASSEMBLY£80.76 Add to
050118801813/0PLATE£4.78 Add to
051118801978/0PLATE£5.06 Add to
052118801918/0PIN£8.28 Add to
053118801933/0SPRING£3.56 Add to
