Engine 2

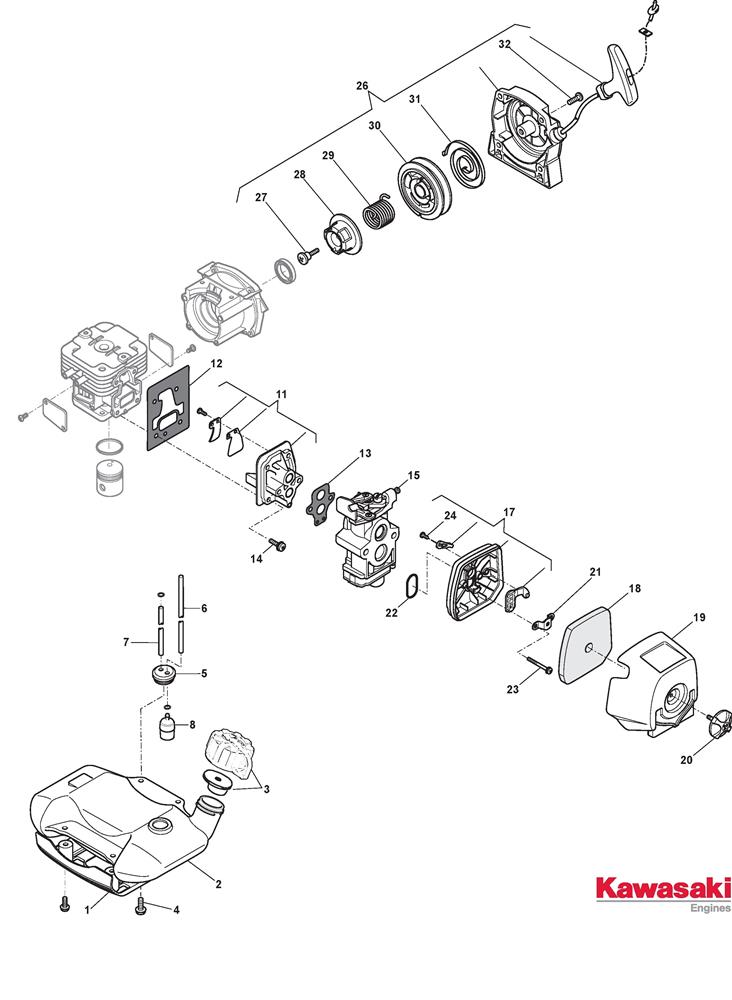

Engine 2 assembly details for Stiga SBC 653 KD [288421002-14] 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801858/0FUEL TANK SUPPORT£8.04 Add to
002118801893/0FUEL TANK£61.25 Add to
003118801894/0Oil CapN/A POA
0042135030TORX SCREW M5 x 20£1.79 Add to
005118801925/0GROMMET£9.82 Add to
006118801949/0FUEL LINE 3 x 5 x 200£3.56 Add to
007118802000/0TUBE 3 x 5.5 x 100£10.79 Add to
008183520004/0INTAKE FILTER£18.36 Add to
011118801790/0BREATHER VALVE ASSEMBLY£28.59 Add to
012118801781/0CYLINDER GASKET£9.62 Add to
013118801972/0CARBURETTOR GASKET£3.00 Add to
0142135060TORX SCREW M5 x 25£2.00 Add to
015118801828/0CARBURETTOR£245.56 Add to
017118801770/0AIR FILTER BASE£18.36 Add to
018118801963/0AIR FILTER£5.85 Add to
019118801786/0AIR FILTER COVER [GREY]£13.95 Add to
020118801941/0BOLT 5 x 30£4.27 Add to
021118801835/0BAFFLE£3.56 Add to
022118801924/0O RING£1.90 Add to
0232135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
024112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
026118801879/0RECOIL ASSEMBLY£90.98 Add to
027118801947/0SCREW£4.52 Add to
028118801866/0CAM PLATE£30.48 Add to
029118801997/0DAMPER SPRING£13.77 Add to
030118801903/0RECOIL PULLEY£15.41 Add to
031118801938/0RECOIL SPRING£22.69 Add to
0322132180SCREW TCCE M6 x 25£1.79 Add to
