Gear case

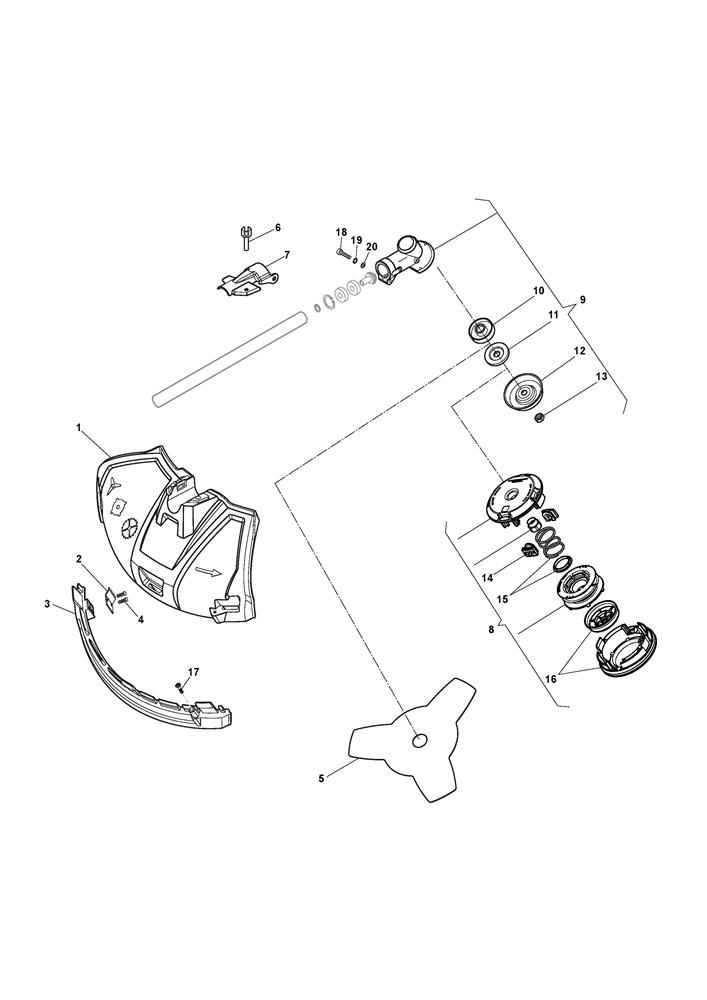

Gear case assembly details for Stiga SBC 653 KF 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118802323/1	SAFETY COVER ASSEMBLY	£24.95	Add to
002	118802578/0	LINE CUTTER BLADE	£3.55	Add to
003	118802580/1	SAFETY COVER GUARD	£8.21	Add to
004	112728099/1	SELF-TAPPING SCREW 4.2 x 16	£2.06	Add to
005	1911-9148-01	BLADE 3 TEETH D=255mm	£21.67	Add to
006	118802579/0	BOLT	£4.78	Add to
007	118803481/0	CONNECTION PLATE	£5.73	Add to
008	1911-9227-01	NYLON HEAD [M10-FEMALE LH-THREAD] 130mm	£21.26	Add to
009	118803482/0	GEAR CASE ASSEMBLY	£61.60	Add to
010	118803485/0	BLADE PLATE	£13.00	Add to
011	118803484/0	BLADE LOWER PLATE	£5.46	Add to
012	118803483/0	GEAR CASE DUST COVER	£7.63	Add to
013	2452090	LEFT SELF-LOCKING NUT	£5.73	Add to
014	118804890/0	LINE RETAINER	£5.73	Add to
015	118804889/0	SPRING	£3.83	Add to
016	118804888/0	COVER & KNOB	£12.27	Add to
017	118804822/0	SCREW	£1.79	Add to
018	2132180	SCREW TCCE M6 x 25	£1.79	Add to
019	112582100/0	LOCK WASHER M6	£2.06	Add to
020	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
