FRAME

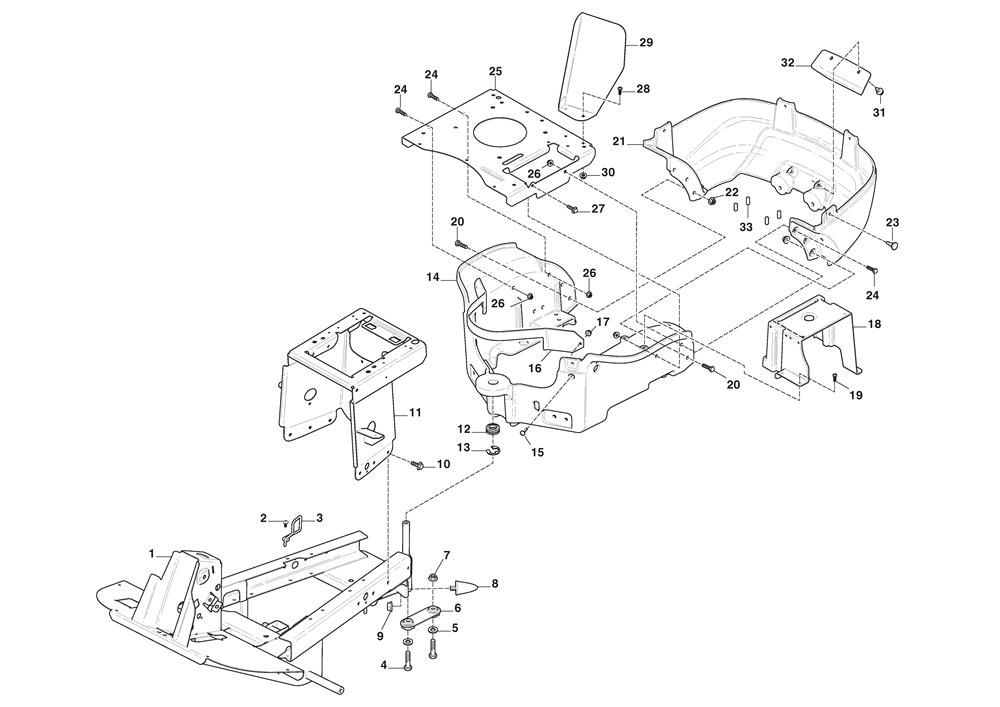

FRAME assembly details for Stiga PARK 300 (2F5820421/ST2P) 2022 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387800019/2	FRONT FRAME ASSEMBLY	£433.32	Add to
002	9945-0816-16	SCREW M8 X 16	£2.54	Add to
003	137600037/0	PULLEY PROTECTION GUIDE	£17.45	Add to
004	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
005	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
006	1137-0963-01	LINK PLATE	£40.71	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	1137-0064-01	RUBBER CONE	£42.53	Add to
009	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
010	9945-0816-16	SCREW M8 X 16	£2.54	Add to
011	387785213/1	SEAT BRACKET ASSEMBLY	£156.99	Add to
012	9547-0008-01	BEARING	£10.25	Add to
013	112610200/0	CIRCLIP D=30	£1.79	Add to
014	387800029/1	REAR FRAME FRONT SIDE	£504.47	Add to
015	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
017	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
018	1137-0914-01	TANK BRACKET	£31.10	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
020	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
021	387800031/1	REAR FRAME REAR SIDE	£378.23	Add to
022	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
023	127275000/0	RUBBER GROMMET FOR BRAKE PEDAL	£3.55	Add to
024	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
025	1137-0777-01	ENGINE PLATE	£84.77	Add to
026	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
027	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
030	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
031	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
032	387547039/0	HITCH PLATE	£53.69	Add to
033	112390007/0	ROUND THREAD INSERT	£1.58	Add to
