PTO - 2WD

PTO - 2WD assembly details for Stiga PARK 500 (2F6120545/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

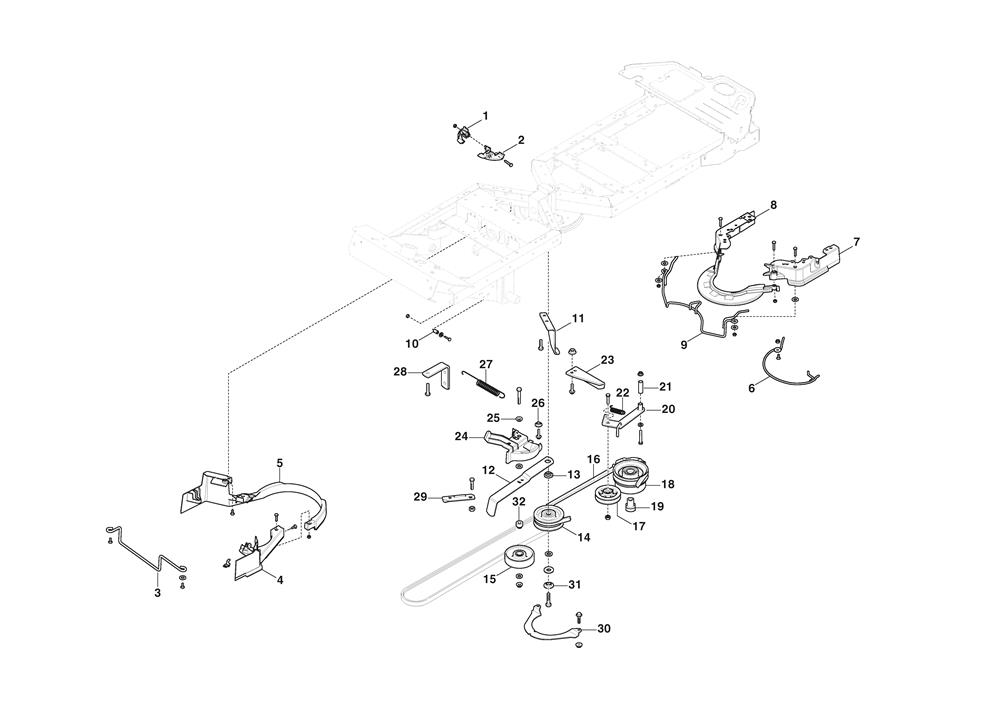

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337600010/0RIGHT PULLEY GUARD£4.52 Add to
002337600011/0LEFT PULLEY GUARD£4.37 Add to
003137294100/0BELT GUIDE£27.27 Add to
004337060003/0FRONT LEFT BELT GUARD£7.10 Add to
005337060002/0FRONT RIGHT BELT GUARD£11.04 Add to
006137294105/0CENTRAL BELT GUIDE£33.42 Add to
007337060001/1REAR LEFT BELT GUARD£7.23 Add to
008337060000/2REAR RIGHT BELT GUARD£7.92 Add to
009337785113/1CENTRAL SUPPORT RODN/A POA
0121137-1124-01TENSION WHEEL ARM£83.40 Add to
0131134-5548-01SPACER£14.32 Add to
014387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
015387605007/0TENSION ROLLER PULLEY£56.84 Add to
0161134-9047-01PTO DRIVE BELT£47.97 Add to
017387605009/0TENSION PULLEY ASSY£50.80 Add to
0181134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
0191134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
0201134-3658-02TENSIONING ARM£91.58 Add to
0211134-1565-10SPACER£8.73 Add to
0221134-3379-01SPRING£18.27 Add to
023387773575/0BRACKET£18.84 Add to
024337600000/1PULLEY PROTECTION GUARD£7.73 Add to
025122041980/0SPACER ROLLER BUSH£2.06 Add to
0271134-5111-01SPRING£18.53 Add to
0281134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
029337546547/0PLATE£5.64 Add to
0301134-3654-01GUARD£35.71 Add to
0311134-0222-00TENSION WASHER£14.45 Add to
0321134-1888-04SPACER£9.41 Add to
