CHASSIS

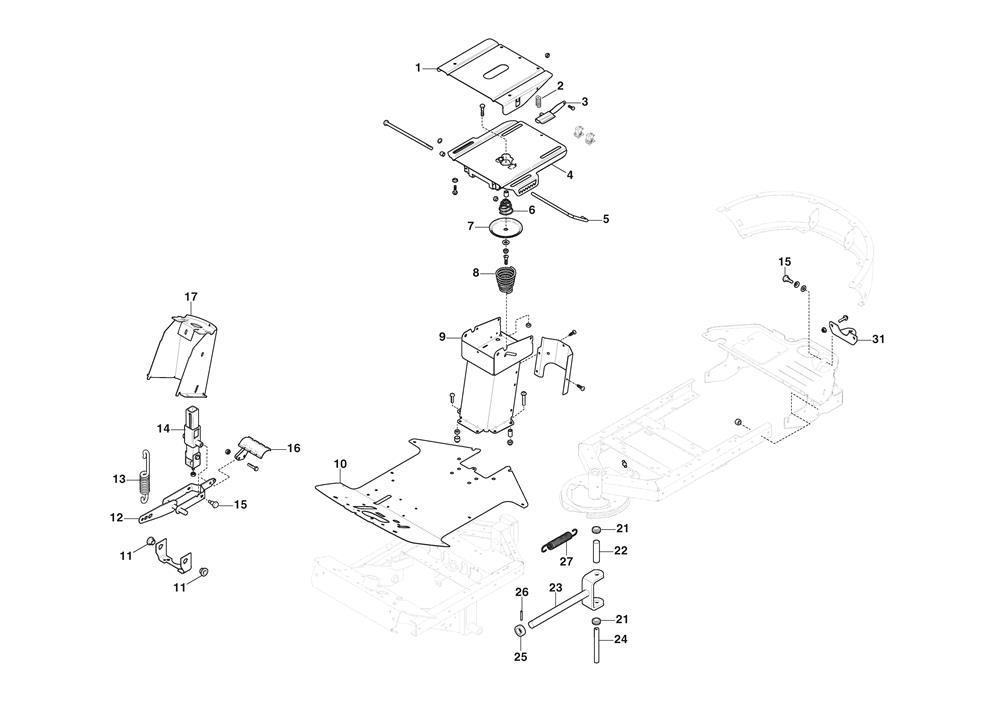

CHASSIS assembly details for Stiga PARK 500 W (2F6120645/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387507505/0	FOOTBOARD	£187.14	Add to
001	387507505/1	FLOOR PLATE	N/A	POA
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	9403-0048-70	COVER PLUG	£9.68	Add to
005	387785275/0	SEAT SUPPORT ASSEMBLEY [BLACK]	£114.96	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
008	1134-1565-08	SPACER	£9.94	Add to
009	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
010	1134-4117-01	BRACKET	£32.99	Add to
011	1134-2684-01	BUSH	£7.10	Add to
012	387256055/0	LIFT LEVER ASSEMBLY	£94.31	Add to
013	4231-0013-00	SPRING	£8.87	Add to
014	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
015	1134-0240-00	SCREW	£9.14	Add to
016	387500013/0	LIFTING DECK PEDAL	£26.46	Add to
018	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
019	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
020	387785243/0	STEERING COLUMN COVER	£102.06	Add to
022	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
023	387800011/0	FRONT FRAME ASSEMBLY [2WD]	£811.06	Add to
025	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
026	9595-0262-00	LOCATING PIN	£2.06	Add to
028	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
029	1134-2171-01	SPRING	£20.53	Add to
031	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
032	1134-5705-01	SPACER	£19.36	Add to
033	9547-0001-00	BEARING	£24.95	Add to
034	1134-5988-01	CENTRE SHAFT	£22.76	Add to
035	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
036	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
037	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
038	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
039	9945-0816-16	SCREW M8 X 16	£2.54	Add to
040	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
041	1134-5512-01	TOWING PLATE	£20.72	Add to
042	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
043	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
044	1134-0240-00	SCREW	£9.14	Add to
045	9665-0002-00	BOWL WASHER	£2.61	Add to
046	1134-4242-01	SPACER WASHER	£4.78	Add to
047	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
048	1134-4100-01	PLUG	£4.78	Add to
049	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
051	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
052	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
053	9893-0616-16	SCREW M6 x 16	£2.47	Add to
054	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
055	1134-3262-01	SPRING	£8.73	Add to
056	1134-6068-01	LOWER SLIDE PLATE	£114.96	Add to
057	1134-5179-01	CATCH ROD	£13.77	Add to
058	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
059	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
060	1134-1565-06	SPACER	£11.32	Add to
061	1134-5302-01	SPRING	£8.87	Add to
062	1134-5299-01	PUSH PLATE	£17.86	Add to
063	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
064	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
066	1134-5626-03	SPACER	£2.87	Add to
067	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
068	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
070	137160001/0	SPACER WASHER	£10.26	Add to
071	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
