TRANSMISSION - 2WD

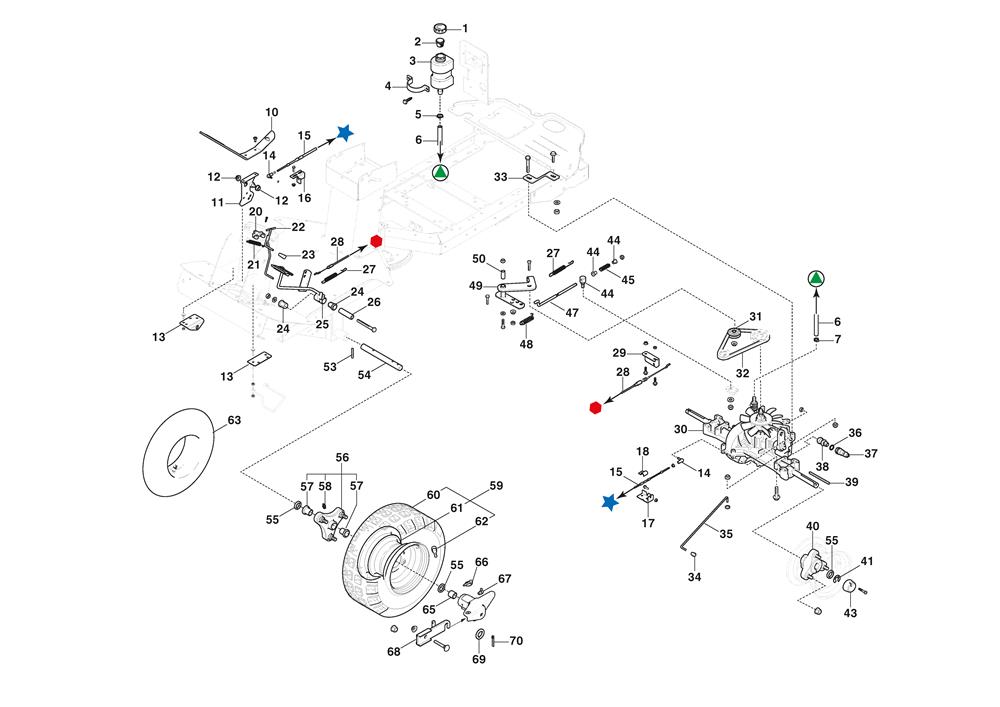

TRANSMISSION - 2WD assembly details for Stiga PARK 500 W (2F6120645/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-2777-02	OIL TANK CAP	£16.78	Add to
002	1134-3734-01	VENT PLUG	£11.18	Add to
003	1134-2765-02	OIL TANK	£45.26	Add to
004	1134-2778-01	BAND	£14.18	Add to
005	9578-0036-01	HOSE CLAMP	£3.41	Add to
006	1134-2779-03	TUBE	£35.71	Add to
007	9578-0023-04	HOSE CLAMP	£5.32	Add to
008	9852-8013-16	SCREW	£2.47	Add to
009	9893-0616-16	SCREW M6 x 16	£2.47	Add to
010	387500011/0	BP PC/PCH PEDAL	£34.76	Add to
011	387773583/1	PEDAL SUPPORT BRACKET	£22.85	Add to
012	1134-6313-01	BEARING	£7.36	Add to
013	337785069/0	PEDAL FIX SUPPORT	£8.02	Add to
014	9570-0001-00	ELBOW LINK	£18.90	Add to
015	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
016	1134-6317-01	WIRE BRACKET	£8.73	Add to
017	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
018	1134-2021-01	CLAMP	£7.36	Add to
019	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
020	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
021	1131-1497-01	BRAKE SPRING	£10.50	Add to
022	1134-5353-01	BRAKE ROD	£29.61	Add to
023	1134-2786-01	PLASTIC KNOB	£6.42	Add to
024	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
025	1134-5655-01	BRAKE/CLUTCH PEDAL	£58.87	Add to
026	1134-5677-02	SPACER	£11.04	Add to
027	4231-0013-00	SPRING	£8.87	Add to
028	187000211/1	BRAKE CABLE	£35.71	Add to
029	1134-6467-01	CABLE HOLDER	£6.55	Add to
030	1137-0126-01	TRANSAXLE K57V	£1,165.38	Add to
031	387605028/0	TENSION ROLLER	£46.79	Add to
032	1134-9058-01	TRANSMISSION BELT	£23.04	Add to
033	1134-3913-01	STRUT BRACKET	£17.59	Add to
034	1134-4014-01	KNOB	£5.19	Add to
035	1134-4015-01	PULL ROD	£11.59	Add to
036	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
037	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
038	1134-7245-01	HYDRAULIC COUPLING-STRAIGHT	£11.59	Add to
039	1134-2471-01	KEY	£9.41	Add to
040	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
041	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
042	9947-0540-19	SCREW	£2.06	Add to
043	1134-4796-01	HUB CAP	£5.46	Add to
044	1134-3456-01	BUSH	£6.14	Add to
045	1134-4183-01	COMPRESSION SPRING	£8.73	Add to
046	1134-4171-01	PIVOT PIN	£17.45	Add to
046	137510345/0	PIVOT PIN	N/A	POA
047	1134-3377-02	CONTROL ROD	£16.91	Add to
048	1134-6414-01	SPRING	£5.73	Add to
049	387205001/0	TENSION ARM ASSEMBLY	£46.61	Add to
050	137038008/0	TRANSMISSION PULLEY BUSH	£9.00	Add to
051	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
052	9960-0860-12	SCREW M8 x 60	£2.32	Add to
054	1134-0075-00	FRONT AXLE	£19.09	Add to
055	1134-0341-01	WASHER	£7.10	Add to
056	1134-4844-05	WHEEL HUB ASSEMBLY	£60.24	Add to
057	137038009/0	WHEEL BUSH	£6.09	Add to
058	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
059	387680311/0	WHEEL ASSEMBLEY	£140.36	Add to
060	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
061	187000454/0	WHEEL RIM 5.5" x 8"	£84.77	Add to
062	9545-0500-00	VALVE ASSY.	£5.73	Add to
063	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
065	9548-0026-01	BEARING 20E7x26-20	£32.99	Add to
066	1137-0077-01	LOCKING PIN	£3.81	Add to
067	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
068	1134-7465-01	ATTACHMENT HOOK PLATES [LH & RH]	£53.42	Add to
069	1134-0341-01	WASHER	£7.10	Add to
070	9599-0080-02	COTTER PIN	£2.47	Add to
072	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
073	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
074	112794117/0	SCREW MF6S M10 X 40 DIN7991	£0.37	Add to
075	9739-1031-22	NUT M10	£2.32	Add to
076	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
077	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
078	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
080	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
081	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
082	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
083	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
085	112793905/0	HEX-HEAD SCREW M8 x 70	£2.32	Add to
086	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
087	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
088	9739-0531-22	NUT M5	£2.47	Add to
089	9959-0620-16	SCREW	£2.32	Add to
090	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
091	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
092	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
093	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
094	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
095	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
096	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
097	9898-1035-16	SCREW 10 x 35	£3.15	Add to
098	9739-1031-22	NUT M10	£2.32	Add to
099	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
100	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
101	9739-1031-22	NUT M10	£2.32	Add to
102	112815210/0	SCREW M6 x 20	£2.06	Add to
103	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
104	112815270/0	SCREW M6 x 25	£2.06	Add to
105	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
106	1134-4282-01	HYDRAULIC NIPPLE	£46.61	Add to
