ENGINE - STIGA ST 600 TWIN

ENGINE - STIGA ST 600 TWIN assembly details for Stiga PARK 700 W (2F6220745/ST2) 2022 model

Parts list

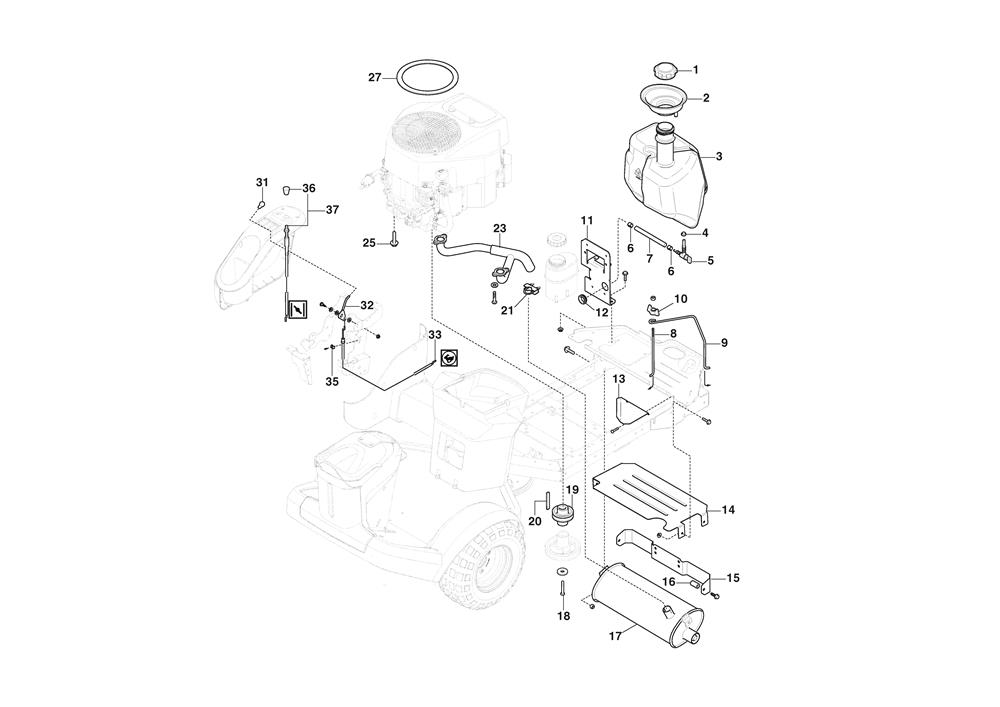

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
001137793051/0FUEL TANK CAP£13.00 Add to
002337207106/0REAR FUEL TANK COVER [BLACK]£6.68 Add to
003337735115/0FUEL TANK [12 LITRES]£132.33 Add to
004337260156/0GROMMET£8.84 Add to
0051134-3224-01FUEL SHUT-OFF VALVE£24.95 Add to
005118563206/0FUEL SHUT-OFF VALVE (LONCIN)N/A POA
0069578-0023-02HOSE CLAMP£5.73 Add to
0071134-2975-15FUEL HOSE (L=1400)£32.99 Add to
0081134-5996-01TANK LOOP£7.10 Add to
0091134-5942-01TANK LOOP£9.54 Add to
0101134-4481-02WING NUT£6.14 Add to
0121134-3203-01GROMMET£5.60 Add to
0131134-6234-01HEAT DEFLECTOR£17.86 Add to
0141134-6251-01HEAT DEFLECTOR£39.80 Add to
0159959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
016112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
017187751507/0MUFFLER ASSY£342.17 Add to
018112737315/0THREADED SCREW 7/16" x 2½" 20 UNF£6.27 Add to
0191134-6139-01ENGINE BELT PULLEY£85.54 Add to
0209600-0251-00KEY L=3/4"£4.91 Add to
0219578-0011-01TUBE CLAMP£14.58 Add to
022112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
023387869535/0EXHAUST PIPE V-TWIN£160.41 Add to
025112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
026112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
027125730031/0INTAKE SEPARATOR STIGA£32.99 Add to
0281134-4078-01KNOB£5.87 Add to
0291134-4077-02THROTTLE CONTROL LEVER£27.27 Add to
030137065324/0THROTTLE CABLE£25.39 Add to
0311137-0115-01WIRE CLAMP£2.18 Add to
032112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0339959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
034112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
035112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
036112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0379945-0825-16SCREW M6SF M8 x 25£2.32 Add to
038387602503/0HEAT PROTECTION GUARD£54.79 Add to
0391134-1565-09SPACER£13.90 Add to
0401134-4338-01CHOKE CONTROL BUTTON£15.81 Add to
041137090202/0CHOKE CONTROL CABLE£24.19 Add to
0421134-0240-00SCREW£9.14 Add to
0439665-0002-00BOWL WASHER£2.61 Add to
0441134-4242-01SPACER WASHER£4.78 Add to
045112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
