PTO - 2WD

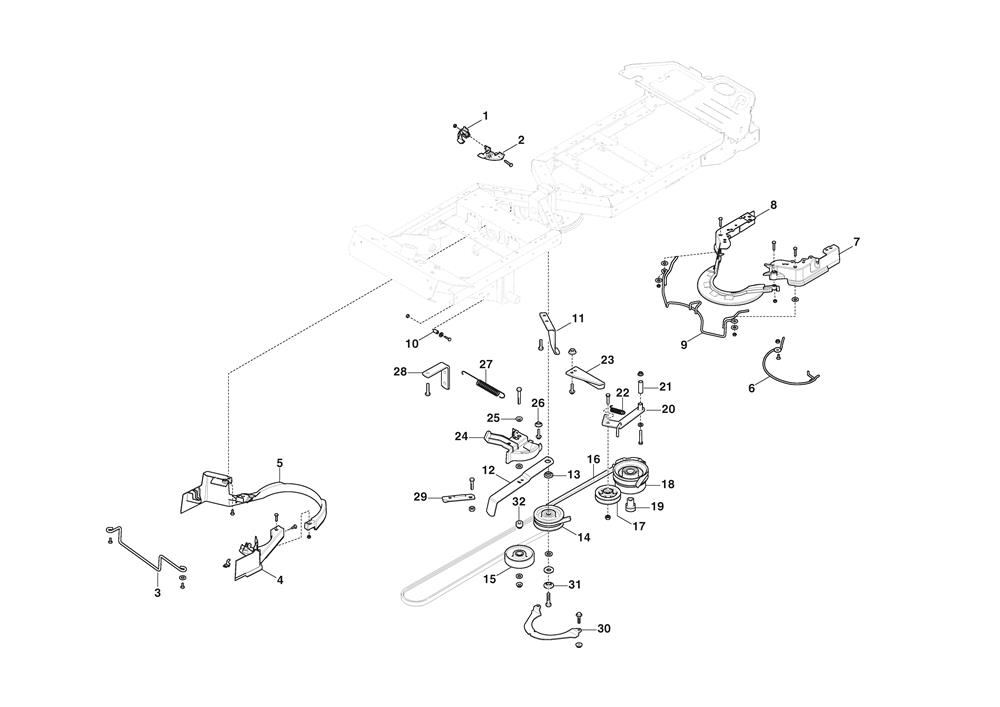

PTO - 2WD assembly details for Stiga PARK 700 W (2F6220745/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337600010/0RIGHT PULLEY GUARD£4.52 Add to
002337600011/0LEFT PULLEY GUARD£4.37 Add to
003137294100/0BELT GUIDE£27.27 Add to
004337060003/0FRONT LEFT BELT GUARD£7.10 Add to
005337060002/0FRONT RIGHT BELT GUARD£11.04 Add to
006137294105/0CENTRAL BELT GUIDE£33.42 Add to
007337060001/1REAR LEFT BELT GUARD£7.23 Add to
008337060000/2REAR RIGHT BELT GUARD£7.92 Add to
009337785113/1CENTRAL SUPPORT RODN/A POA
010112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
0121137-1124-01TENSION WHEEL ARM£83.40 Add to
0131134-5548-01SPACER£14.32 Add to
014387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
015387605007/0TENSION ROLLER PULLEY£56.84 Add to
0161134-9047-01PTO DRIVE BELT£47.97 Add to
017387605009/0TENSION PULLEY ASSY£50.80 Add to
0181134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
0191134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
0201134-3658-02TENSIONING ARM£91.58 Add to
0211134-1565-10SPACER£8.73 Add to
0221134-3379-01SPRING£18.27 Add to
023387773575/0BRACKET£18.84 Add to
024337600000/1PULLEY PROTECTION GUARD£7.73 Add to
025122041980/0SPACER ROLLER BUSH£2.06 Add to
0271134-5111-01SPRING£18.53 Add to
0281134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
029337546547/0PLATE£5.64 Add to
0301134-3654-01GUARD£35.71 Add to
0311134-0222-00TENSION WASHER£14.45 Add to
0321134-1888-04SPACER£9.41 Add to
0419945-0816-16SCREW M8 X 16£2.54 Add to
0429893-0616-16SCREW M6 x 16£2.47 Add to
043112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
045112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
046322545159/0FIXING PLATE£2.06 Add to
048112674550/0SCREW TE M6 x 30£2.06 Add to
049112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
050112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
051112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
052112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
053112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
054112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
0559945-0816-16SCREW M8 X 16£2.54 Add to
0569893-0616-16SCREW M6 x 16£2.47 Add to
057112691900/0HEX-HEAD SCREW£1.91 Add to
058112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
059112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
060112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
061112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
062112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0649959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
065112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0669959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
067112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0689959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0699699-0109-02WASHER 10.5 x 40 x 2£2.32 Add to
070112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0719997-1040-16SCREW M6S 10 x 40£7.23 Add to
0729739-1031-22NUT M10£2.32 Add to
073112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
074112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
075112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
