CHASSIS

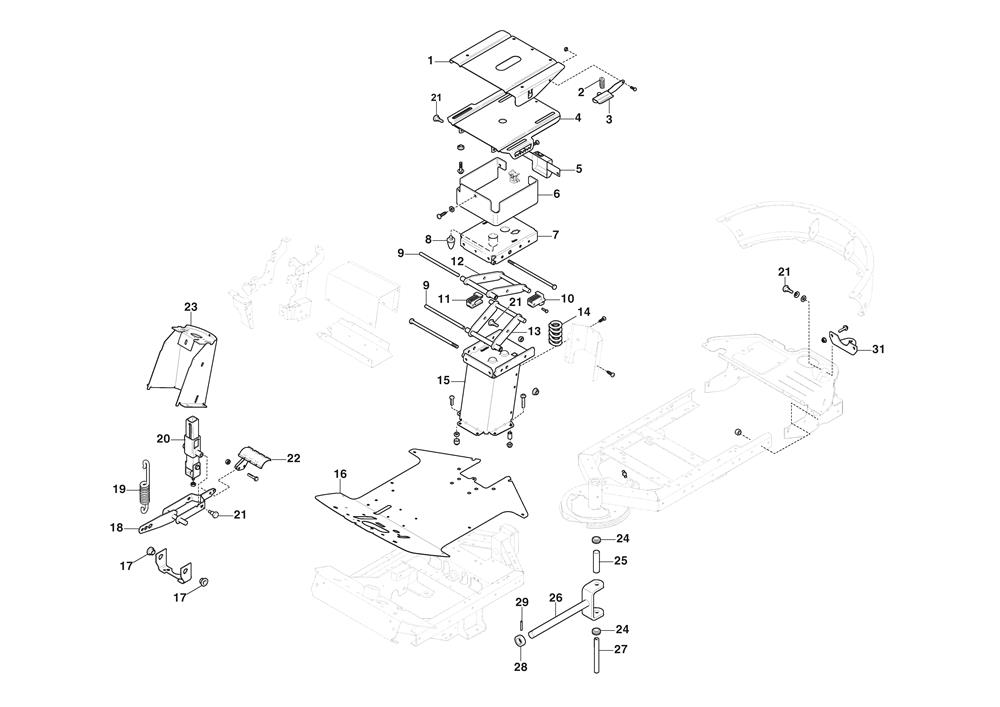

CHASSIS assembly details for Stiga PARK 900 WX (2F6230625/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387507505/0	FOOTBOARD	£187.14	Add to
001	387507505/1	FLOOR PLATE	N/A	POA
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	9403-0048-70	COVER PLUG	£9.68	Add to
005	387785277/0	SEAT SUPPORT ASSEMBLEY [BLACK]	£86.89	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
008	1134-1565-08	SPACER	£9.94	Add to
009	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
010	1134-4117-01	BRACKET	£32.99	Add to
011	1134-2684-01	BUSH	£7.10	Add to
012	387256055/0	LIFT LEVER ASSEMBLY	£94.31	Add to
013	4231-0013-00	SPRING	£8.87	Add to
014	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
015	1134-0240-00	SCREW	£9.14	Add to
016	387500013/0	LIFTING DECK PEDAL	£26.46	Add to
018	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
019	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
020	387785243/0	STEERING COLUMN COVER	£102.06	Add to
022	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
023	387800039/0	FRONT FRAME ASSEMBLY [4WD]	£933.72	Add to
025	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
026	9595-0262-00	LOCATING PIN	£2.06	Add to
028	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
031	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
032	1134-5705-01	SPACER	£19.36	Add to
033	9547-0001-00	BEARING	£24.95	Add to
034	1134-5988-01	CENTRE SHAFT	£22.76	Add to
035	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
036	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
037	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
038	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
039	9945-0816-16	SCREW M8 X 16	£2.54	Add to
040	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
041	1134-5512-01	TOWING PLATE	£20.72	Add to
042	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
043	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
044	1134-0240-00	SCREW	£9.14	Add to
045	9665-0002-00	BOWL WASHER	£2.61	Add to
046	1134-4242-01	SPACER WASHER	£4.78	Add to
047	1134-4100-01	PLUG	£4.78	Add to
048	1134-4100-01	PLUG	£4.78	Add to
049	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
050	1134-4160-01	SEAT SPRING	£24.95	Add to
051	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
052	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
053	9893-0616-16	SCREW M6 x 16	£2.47	Add to
054	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
055	1134-3262-01	SPRING	£8.73	Add to
056	1134-0240-00	SCREW	£9.14	Add to
057	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
058	387773513/0	LOWER SLIDE PLATE	£95.67	Add to
059	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
060	387602511/0	OPC MICRO PROTECION COVER	£35.71	Add to
061	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
062	387785267/0	SEAT SUSPENSION SUPPORT	£41.44	Add to
063	137510304/0	PUSH PIN	£16.50	Add to
064	137430101/0	OPC SPRING	£13.77	Add to
065	387773509/2	UPPER PLATE	£92.23	Add to
066	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
067	1137-0064-01	RUBBER CONE	£42.53	Add to
069	1137-0033-02	BLOCK	£3.41	Add to
070	1137-0033-01	BLOCK	£3.41	Add to
071	1137-0263-01	TUBE	£9.68	Add to
073	387111515/0	PCH ARMREST COVER BLACK	N/A	POA
074	387547069/0	LOWER COVER [BLACK]	N/A	POA
075	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
076	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
078	1134-4156-01	INNER PANEL BRACKET	£60.24	Add to
079	1134-6328-01	SPACER	£19.93	Add to
080	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
081	9893-0616-16	SCREW M6 x 16	£2.47	Add to
082	1134-6327-01	FRONT PLATE	£21.82	Add to
083	9893-0616-16	SCREW M6 x 16	£2.47	Add to
085	1137-0260-01	LINK ASSEMBLY A	£65.69	Add to
086	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
