PTO - 4WD

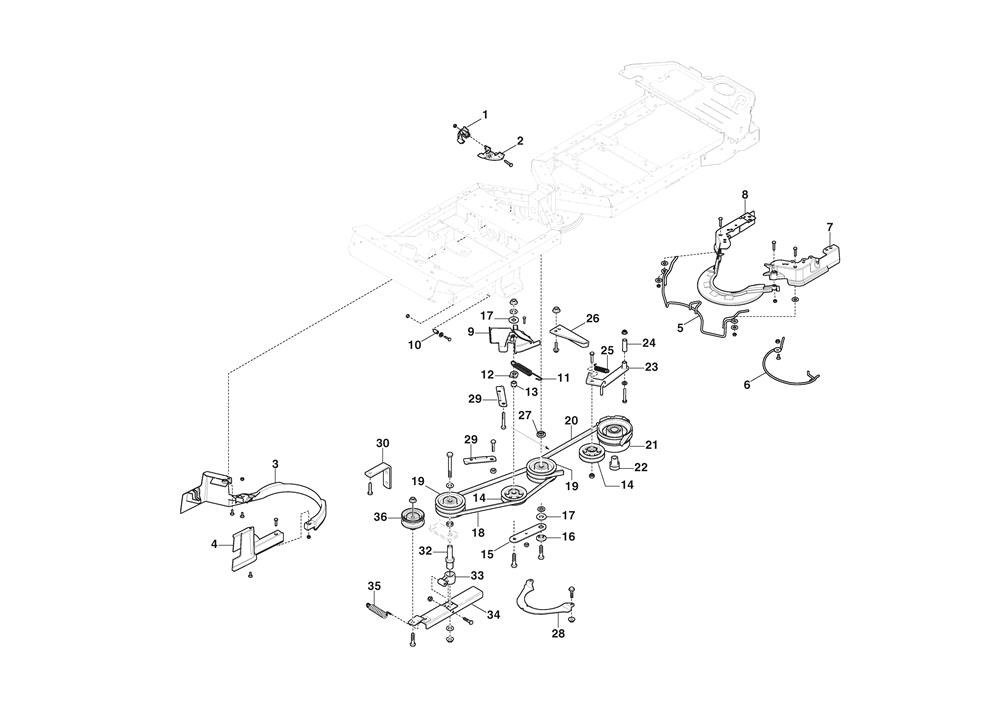

PTO - 4WD assembly details for Stiga PARK 900 WX (2F6230625/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337600010/0	RIGHT PULLEY GUARD	£4.52	Add to
002	337600011/0	LEFT PULLEY GUARD	£4.37	Add to
003	337060002/0	FRONT RIGHT BELT GUARD	£11.04	Add to
004	337060036/1	FRONT LEFT BELT GUARD	£7.23	Add to
005	337785113/1	CENTRAL SUPPORT ROD	N/A	POA
006	137294105/0	CENTRAL BELT GUIDE	£33.42	Add to
007	337060001/1	REAR LEFT BELT GUARD	£7.23	Add to
008	337060000/2	REAR RIGHT BELT GUARD	£7.92	Add to
009	337600001/2	PULLEY PROTECTION GUARD	£9.31	Add to
010	1134-1565-14	SPACER	£2.18	Add to
011	1134-5713-04	SPRING	£7.73	Add to
012	337546545/0	SPRING HOOKING PLATE	£5.60	Add to
013	1134-1888-06	SPACER	£9.41	Add to
014	387605009/0	TENSION PULLEY ASSY	£50.80	Add to
015	1134-1730-02	TENSIONING WHEEL ARM	£42.53	Add to
016	1134-0222-00	TENSION WASHER	£14.45	Add to
017	137038000/0	BUSH	£5.46	Add to
018	1134-9239-01	TRANSMISSION BELT X17 ZS31	£66.84	Add to
019	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
020	1134-9047-01	PTO DRIVE BELT	£47.97	Add to
021	1134-7526-01	MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )	£287.40	Add to
022	1134-5016-01	BUSH (FOR ELECTRIC PTO-CLUTCH)	£31.63	Add to
023	1134-3658-02	TENSIONING ARM	£91.58	Add to
024	1134-1565-10	SPACER	£8.73	Add to
025	1134-3379-01	SPRING	£18.27	Add to
026	387773575/0	BRACKET	£18.84	Add to
027	1134-5548-01	SPACER	£14.32	Add to
028	1134-3654-01	GUARD	£35.71	Add to
029	337546547/0	PLATE	£5.64	Add to
030	1134-5112-01	SPRING ATTACHMENT BRACKET	£27.27	Add to
031	1134-0052-00	SPACER	£8.87	Add to
032	1134-5663-01	SHAFT	£43.93	Add to
033	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
034	1134-5660-01	TENSION ARM	£42.83	Add to
035	1134-5824-01	SPRING	£5.87	Add to
036	387605013/0	TENSION PULLEY ASSY	£41.44	Add to
042	9893-0616-16	SCREW M6 x 16	£2.47	Add to
045	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
048	112674550/0	SCREW TE M6 x 30	£2.06	Add to
049	112524010/0	WASHER M8 8.4 x 24 x 4	£1.91	Add to
050	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
051	112727796/0	SCREW TCB TORX M5 x 12	£2.06	Add to
052	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
053	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
054	112735669/0	SCREW TCB TORX M6 x 50	£2.06	Add to
055	9945-0816-16	SCREW M8 X 16	£2.54	Add to
056	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
057	9739-1031-22	NUT M10	£2.32	Add to
058	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
059	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
060	9739-1031-22	NUT M10	£2.32	Add to
061	1134-0052-00	SPACER	£8.87	Add to
062	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
063	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
064	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
065	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
066	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
067	9739-1031-22	NUT M10	£2.32	Add to
068	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
069	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
070	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
071	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
072	9739-1031-22	NUT M10	£2.32	Add to
073	112792410/0	HEX-HEAD SCREW M6 x 40	£2.06	Add to
074	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
076	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
077	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
079	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
080	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
081	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
082	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
083	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
