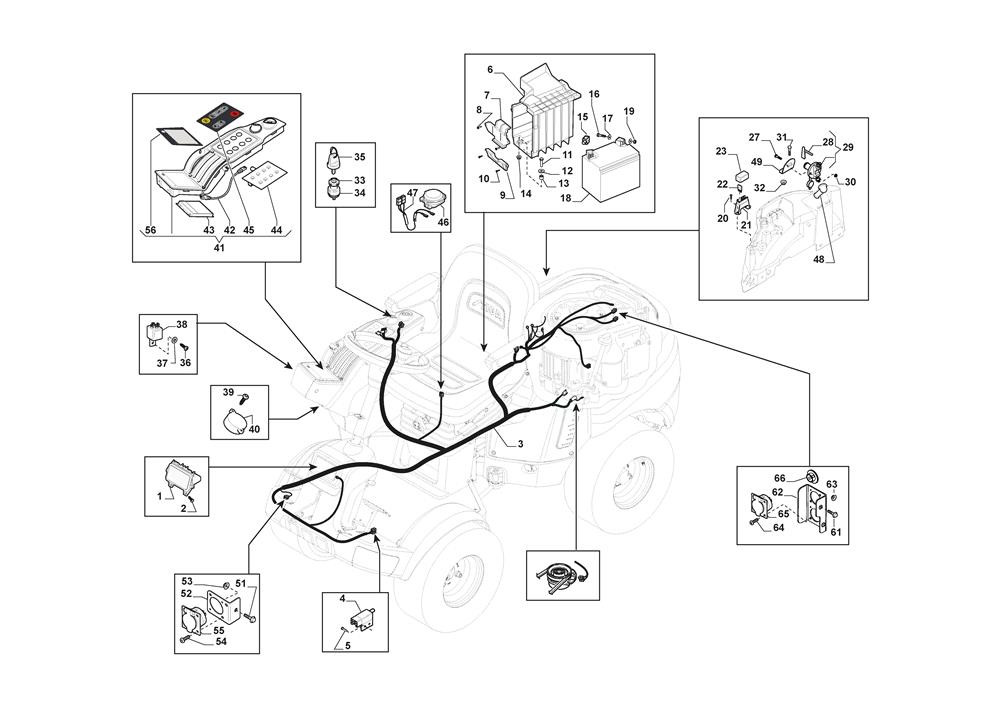

ELECTRIC EQUIPMENT assembly details for Stiga PARK PRO 900 AWX (2F6430931/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387184250/0	FRONT LED LIGHT	£191.06	Add to
002	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
003	187040318/2	WIRING HARNESS HONDA GXV660	£394.34	Add to
004	1134-3399-01	SWITCH	£45.26	Add to
005	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
006	337109500/0	BATTERY HOUSING [BLACK]	£60.24	Add to
007	337245200/0	BATTERY STOP	£6.55	Add to
008	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
009	337580470/0	BATTERY SLIDE PLATE	£8.73	Add to
010	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
012	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	118564861/2	RED RUBBER TERMINAL COVER	£7.10	Add to
016	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
017	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
018	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
019	112292100/0	HEXAGON NUT M6	£1.47	Add to
020	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
021	1134-3491-01	FUSE HOLDER	£13.90	Add to
022	1134-3496-06	FUSE 20A	£2.06	Add to
022	133340036/0	FUSE 25A	£2.06	Add to
023	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
027	112791213/1	SCREW M6 X 18	£1.74	Add to
027	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
028	118830001/0	MAIN SWITCH KEY	£8.60	Add to
029	9400-0316-01	MAIN SWITCH	£76.59	Add to
030	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
031	112791213/1	SCREW M6 X 18	£1.74	Add to
031	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
032	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
033	1134-4749-01	NUT	£5.05	Add to
034	118210026/0	IGNITION SWITCH	£76.59	Add to
036	112728124/0	SELF-TAP SCREW TCB TORX 4.2 X 16	£1.74	Add to
037	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
038	133567002/0	OPC DELAYED RELAY	£57.48	Add to
039	112728124/0	SELF-TAP SCREW TCB TORX 4.2 X 16	£1.74	Add to
040	337031585/0	BUZZER SOUND AMPLIFIER	£50.70	Add to
041	387150002/1	DASHBOARD & PC BOARD ASSY	£1,015.92	Add to
042	137065302/0	PCB CONNECTING CABLE	£15.06	Add to
043	118803492/0	PCB DISPLAY BOARD(NO RETURNS ON THIS ITEM)	£280.72	Add to
044	118803496/1	OPC N.L PC BOARD	£374.29	Add to
045	137795500/0	KEYBOARD MEMBRANE	£110.95	Add to
046	119410619/0	SEAT SWITCH	£49.34	Add to
047	137065301/0	SEAT SWITCH SAFETY CABLE	£20.09	Add to
048	118564861/2	RED RUBBER TERMINAL COVER	£7.10	Add to
049	337785025/0	BATTERY SWITCH BRACKET	£15.54	Add to
051	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
052	337546755/0	PLATE	N/A	POA
053	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
054	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
055	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
056	137420100/0	DISPLAY MEMBRANCE PCB	£45.44	Add to
061	9945-0816-16	SCREW M8 X 16	£2.54	Add to
062	387785217/0	SUPPORT PLATE	£31.63	Add to
063	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
064	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
065	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
066	118802897/0	PLUG CAP	£2.06	Add to
