ENGINE - HONDA

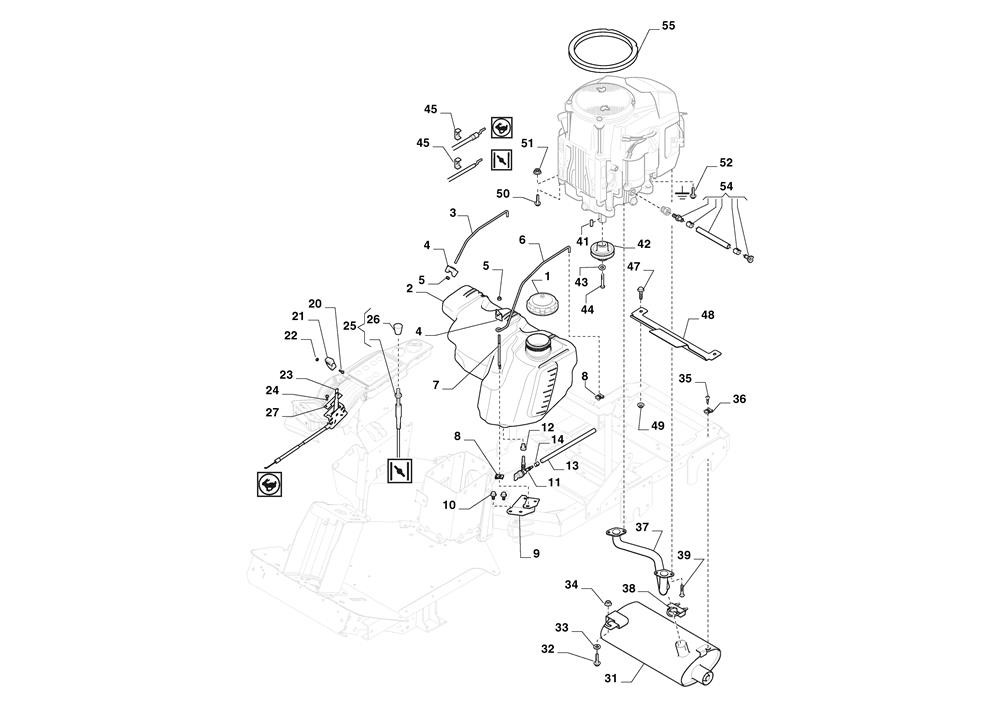

ENGINE - HONDA assembly details for Stiga PARK PRO 900 AWX (2F6430931/ST2P) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001137793050/0FUEL TANK CAP£44.00 Add to
002337735110/1FUEL TANK [15 LITRES]£132.33 Add to
003137840001/0FUEL TANK ROD£20.18 Add to
0041134-4481-02WING NUT£6.14 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006137840002/0FUEL TANK ROD£19.90 Add to
007137840003/0FUEL TANK ROD SUPPORT£5.46 Add to
0081134-4176-01CLIP£5.19 Add to
009337785023/0TANK SUPPORT BRACKET£31.17 Add to
0109945-0816-16SCREW M8 X 16£2.54 Add to
0111134-3224-01FUEL SHUT-OFF VALVE£24.95 Add to
011118563206/0FUEL SHUT-OFF VALVE (LONCIN)N/A POA
012337260156/0GROMMET£8.84 Add to
0131134-2975-15FUEL HOSE (L=1400)£32.99 Add to
0149578-0023-02HOSE CLAMP£5.73 Add to
020112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
021337592150/0THROTTLE KNOB [BLACK]£3.41 Add to
022112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
023187000202/1THROTTLE CABLE£52.13 Add to
024112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
025137090200/0CHOKE CONTROL CABLE£71.14 Add to
0261134-4338-01CHOKE CONTROL BUTTON£15.81 Add to
027325547371/0THROTTLE STOP PLATE£6.14 Add to
0311137-0179-01MUFFLER£534.69 Add to
0329959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
033112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
034112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0359893-0616-16SCREW M6 x 16£2.47 Add to
0361137-1130-01SQUARE WASHER£4.23 Add to
037118738260/1EXHAUST PIPE HONDA GXV660£211.50 Add to
038084-351-01TUBE CLAMP£10.23 Add to
039112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
0419600-0251-00KEY L=3/4"£4.91 Add to
0421137-0207-01ENGINE PULLEY£38.44 Add to
043112543000/0SAFETY WASHER D=7/16£2.06 Add to
044112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
0451137-0115-01WIRE CLAMP£2.18 Add to
0479959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
049112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
050112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0519731-1031-22LOCK NUT M6MF M10£2.47 Add to
0529945-0816-16SCREW M8 X 16£2.54 Add to
054387598001/0EXTENSION OIL DRAIN ASSY (HONDA)£30.75 Add to
055137108502/0AIR DUCT SPONGE-HONDA GXV660£27.27 Add to
