ELECTRICAL PARTS

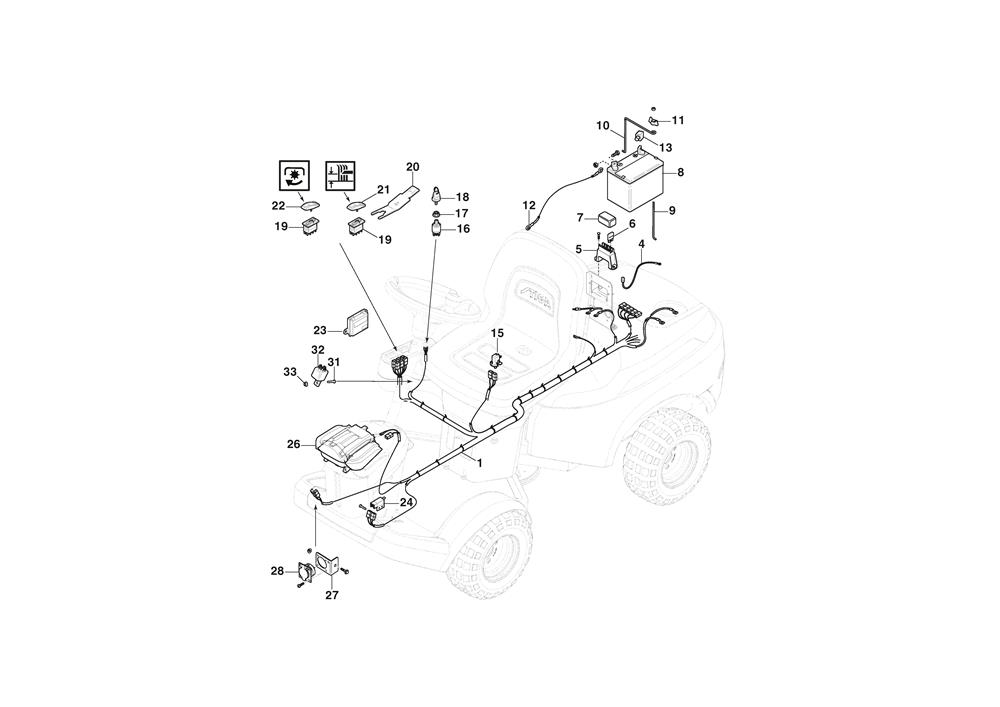

ELECTRICAL PARTS assembly details for Stiga PARK SPECIAL EDITION (2F6130535/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001187040335/0WIRING HARNESS [HONDA]£340.87 Add to
0041134-4970-02CABLE£23.45 Add to
0051134-3491-01FUSE HOLDER£13.90 Add to
0061134-3496-01FUSE 10AN/A POA
0061134-3496-06FUSE 20A£2.06 Add to
0071134-3631-01COVER-FUSE HOLDER£12.96 Add to
008118120065/0BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM£109.58 Add to
0091134-5995-01BATTERY LOOP£6.55 Add to
0101134-5994-01BATTERY LOOP£9.82 Add to
0111134-4481-02WING NUT£6.14 Add to
0121134-0234-02BATTERY CABLE (+)£24.95 Add to
0131134-2310-01GUARD CAP (+)£9.28 Add to
0151134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0161134-4093-01IGNITION SWITCH£67.05 Add to
0171134-4749-01NUT£5.05 Add to
0199400-0282-01SWITCH C/W DIODE No returns on this item£76.59 Add to
0209400-0290-01TOOL£27.27 Add to
0219400-0280-03SWITCH COVER-HEIGHT ADJUST£18.27 Add to
0229400-0343-01SWITCH COVER-PTO£9.28 Add to
023387722401/0PC BOARD BLUETOOTH£96.24 Add to
0241134-3399-02SWITCH£45.26 Add to
026387184254/0FRONT LED LIGHT & CABLE£207.19 Add to
027337546755/0PLATEN/A POA
028387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
031112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
031112789000/0SCREW TE M5 x 12£2.06 Add to
0321134-2871-03STARTER RELAY [5 SPADE]£45.26 Add to
0339739-0531-22NUT M5£2.47 Add to
