TRANSMISSION - 4WD

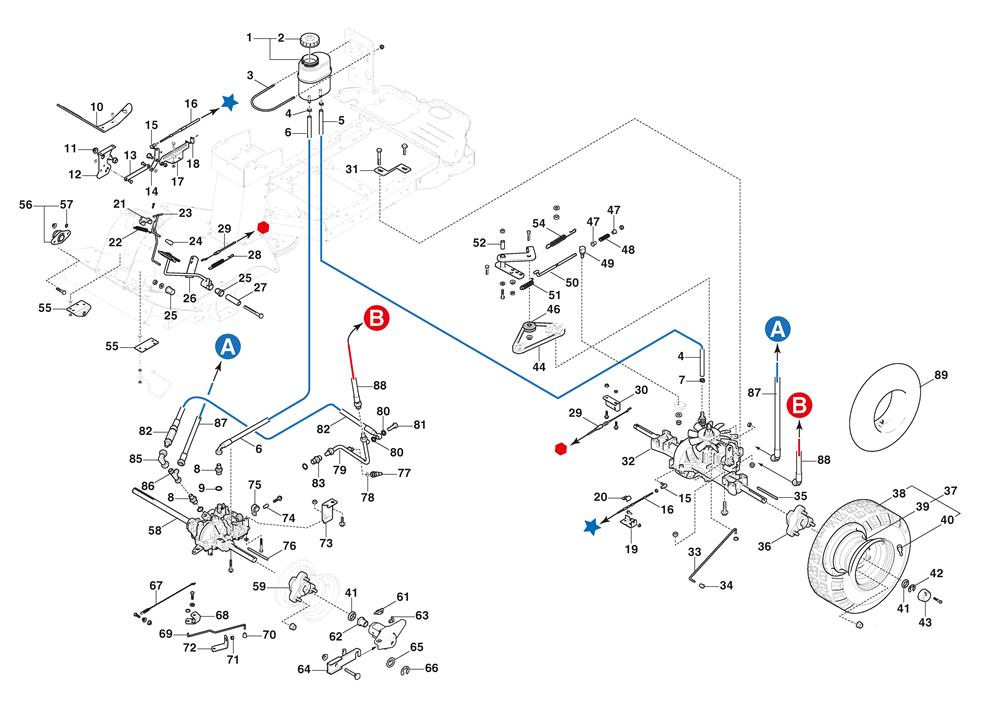

TRANSMISSION - 4WD assembly details for Stiga PARK SPECIAL EDITION (2F6130535/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387735257/1HYDRAULIC OIL TANK£126.99 Add to
0021137-0272-01TANK CAP£34.35 Add to
0031134-5943-01TANK LOOP£7.78 Add to
0049578-0036-01HOSE CLAMP£3.41 Add to
0051134-2779-03TUBE£35.71 Add to
006387869523/1HYDRAULIC HOSE£81.53 Add to
0079578-0023-04HOSE CLAMP£5.32 Add to
0081134-5810-01HYDRAULIC COUPLING£17.86 Add to
0099404-0029-01O RING 16.36 x 2.21£5.46 Add to
010387500011/0BP PC/PCH PEDAL£34.76 Add to
0111134-6313-01BEARING£7.36 Add to
012387773583/0PEDAL SUPPORT BRACKET£1.30 Add to
012387773583/1PEDAL SUPPORT BRACKET£22.85 Add to
013337056017/0PEDAL LINK ARM£9.08 Add to
014337315023/0ADVANCE LEVER£4.94 Add to
0159570-0001-00ELBOW LINK£18.90 Add to
016187000222/0ADVANCE CABLE ASSEMBLEY£73.52 Add to
017337785067/0ADVANCE CABLE SUPPORT£8.15 Add to
018322981467/0FIXING CABLE PLATE£2.06 Add to
0191134-3395-01ATTACHMENT BRACKET£30.26 Add to
0201134-2021-01CLAMP£7.36 Add to
0211134-4002-01BRAKE ROD ATTACHMENT£12.27 Add to
0221131-1497-01BRAKE SPRING£10.50 Add to
0231134-5353-01BRAKE ROD£29.61 Add to
0241134-2786-01PLASTIC KNOB£6.42 Add to
0251134-9024-01PLASTIC BUSH (4 PCS)£19.66 Add to
0261134-5655-01BRAKE/CLUTCH PEDAL£58.87 Add to
0271134-5677-02SPACER£11.04 Add to
0284231-0013-00SPRING£8.87 Add to
029187000211/1BRAKE CABLE£35.71 Add to
0301134-6467-01CABLE HOLDER£6.55 Add to
0311134-3913-01STRUT BRACKET£17.59 Add to
032118401000/0TRANSAXLE K574T£2,011.78 Add to
0331134-4015-01PULL ROD£11.59 Add to
0341134-4014-01KNOB£5.19 Add to
0351134-2471-01KEY£9.41 Add to
0361134-4844-02WHEEL HUB ASSEMBLY£57.52 Add to
037387680311/0WHEEL ASSEMBLEY£140.36 Add to
0389545-0116-00TYRE 16 x 7.50-8£86.13 Add to
039187000454/0WHEEL RIM 5.5" x 8"£84.77 Add to
0409545-0500-00VALVE ASSY.£5.73 Add to
0411134-0341-01WASHER£7.10 Add to
0429653-0001-04CIRCLIP 3/4"£2.61 Add to
0431134-4796-01HUB CAP£5.46 Add to
0441134-9058-01TRANSMISSION BELT£23.04 Add to
045112794117/0SCREW MF6S M10 X 40 DIN7991£0.37 Add to
046387605028/0TENSION ROLLER£46.79 Add to
0471134-3456-01BUSH£6.14 Add to
0481134-4183-01COMPRESSION SPRING£8.73 Add to
0491134-4171-01PIVOT PIN£17.45 Add to
049137510345/0PIVOT PINN/A POA
0501134-3377-02CONTROL ROD£16.91 Add to
0511134-6414-01SPRING£5.73 Add to
052387205001/0TENSION ARM ASSEMBLY£46.61 Add to
053137038008/0TRANSMISSION PULLEY BUSH£9.00 Add to
0549739-1031-22NUT M10£2.32 Add to
055337785069/0PEDAL FIX SUPPORT£8.02 Add to
0561134-5703-01FLANGE BEARING UNIT£24.95 Add to
057112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
058118400996/1FRONT TRANSAXLE (KTM10M)£1,965.00 Add to
0591134-4844-03WHEEL HUB ASSEMBLY£58.87 Add to
0609739-1031-22NUT M10£2.32 Add to
0611137-0077-01LOCKING PIN£3.81 Add to
0621134-5686-01BEARING BUSH D= 25.4mm£14.58 Add to
0639501-0502-00GREASE JOINT£8.87 Add to
0641134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£53.42 Add to
065137670203/0WASHER DEST=45 DINT=25.6£5.05 Add to
0669653-0002-04CIRCLIP 1"£3.69 Add to
067137065320/0FRONT TRANSMISSION RELEASE CABLE£20.31 Add to
068337774119/0UNLOCK BRACKET£16.50 Add to
0691134-6083-01CONTROL ROD£7.27 Add to
070112604896/0STARLOCK WASHER D=6£2.06 Add to
0711134-2790-01RUBBER GROMMET£6.95 Add to
0721134-6084-01CONTROL BRACKET£10.09 Add to
073387773551/0SUPPORT BRACKET£32.99 Add to
0749578-0028-01TUBE CLAMP£9.31 Add to
0751134-1565-09SPACER£13.90 Add to
0761134-3383-02KEY (L=51 MM)£9.41 Add to
0771134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
079387869527/0HYDRAULIC HOSE ASSY£197.87 Add to
0801134-4948-01SEAL WASHER 1/4"£2.59 Add to
081112320450/01/4 BANJO DRILLED NUT£8.45 Add to
082387869533/2BY-PASS HYDRAULIC HOSE£167.09 Add to
082387869533/2BY-PASS HYDRAULIC HOSE£167.09 Add to
0831134-5875-01HYDRAULIC COUPLING£71.14 Add to
0849959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
085112146034/090 HYDRAULIC COUPLING£41.44 Add to
086112140800/0SPECIAL F.RUN T.SWIVEL£76.19 Add to
087387869531/0TRASM.LINK HYDR.HOSE ASSY PC-PCH£99.76 Add to
0881137-0212-01HYDRAULIC HOSE L=1210mm£86.13 Add to
0899545-0203-00INNER TUBE 16 x 6.50£26.18 Add to
090112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0919997-1040-16SCREW M6S 10 x 40£7.23 Add to
092112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0939959-0620-16SCREW£2.32 Add to
094112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
095112815210/0SCREW M6 x 20£2.06 Add to
096112815270/0SCREW M6 x 25£2.06 Add to
097137295200/0CENTRAL HOSE FIXING GUIDE£20.58 Add to
0989739-0531-22NUT M5£2.47 Add to
099122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
100112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
1019960-0860-12SCREW M8 x 60£2.32 Add to
102112692050/0HEX-HEAD SCREW£1.91 Add to
103112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
1049945-0816-16SCREW M8 X 16£2.54 Add to
1059699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
106112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
1079959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
108112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
1099699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
1109947-0540-19SCREW£2.06 Add to
112112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
113112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
114122519820/0PIN£2.47 Add to
115112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
116112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
1179893-0616-16SCREW M6 x 16£2.47 Add to
1189997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
1199699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
1209898-1035-16SCREW 10 x 35£3.15 Add to
121112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
1229939-0612-16SCREW M6 x 12£2.32 Add to
123112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
