ENGINE - HONDA GCV530

ENGINE - HONDA GCV530 assembly details for Stiga PARK SPECIAL EDITION (2F6130535/ST2P) 2022 model

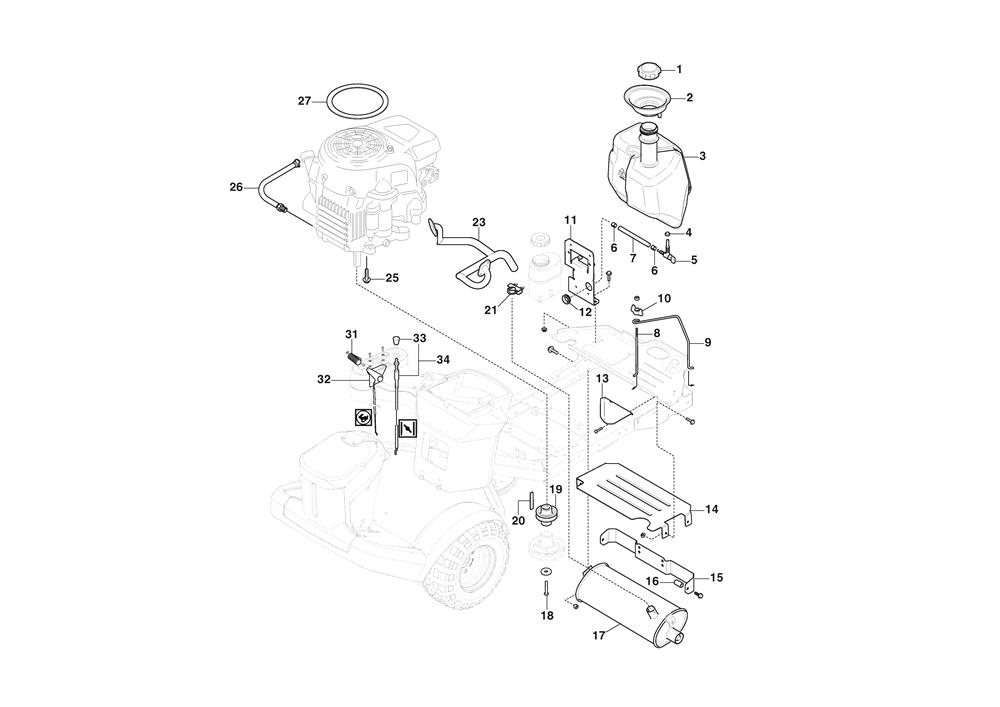

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
001	137793051/0	FUEL TANK CAP	£13.00	Add to
002	337207106/0	REAR FUEL TANK COVER [BLACK]	£6.68	Add to
003	337735115/0	FUEL TANK [12 LITRES]	£132.33	Add to
004	337260156/0	GROMMET	£8.84	Add to
005	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
006	9578-0023-02	HOSE CLAMP	£5.73	Add to
007	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
008	1134-5996-01	TANK LOOP	£7.10	Add to
009	1134-5942-01	TANK LOOP	£9.54	Add to
010	1134-4481-02	WING NUT	£6.14	Add to
012	1134-3203-01	GROMMET	£5.60	Add to
013	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
014	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
015	387602503/0	HEAT PROTECTION GUARD	£54.79	Add to
016	1134-1565-09	SPACER	£13.90	Add to
017	187751507/0	MUFFLER ASSY	£342.17	Add to
018	112737315/0	THREADED SCREW 7/16" x 2½" 20 UNF	£6.27	Add to
019	1134-6139-01	ENGINE BELT PULLEY	£85.54	Add to
020	9600-0251-00	KEY L=3/4"	£4.91	Add to
021	9578-0011-01	TUBE CLAMP	£14.58	Add to
023	387869549/0	EXHAUST PIPE [HONDA GCV530]	£69.51	Add to
025	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
026	1134-5827-01	OIL DRAIN ASSEMBLY	£41.16	Add to
027	125730031/0	INTAKE SEPARATOR STIGA	£32.99	Add to
031	325592000/1	LEVER KNOB	£2.32	Add to
032	187000223/0	THROTTLE CABLE	£44.84	Add to
033	1134-4338-01	CHOKE CONTROL BUTTON	£15.81	Add to
034	137090202/0	CHOKE CONTROL CABLE	£24.19	Add to
