HANDLE, LOWER PART

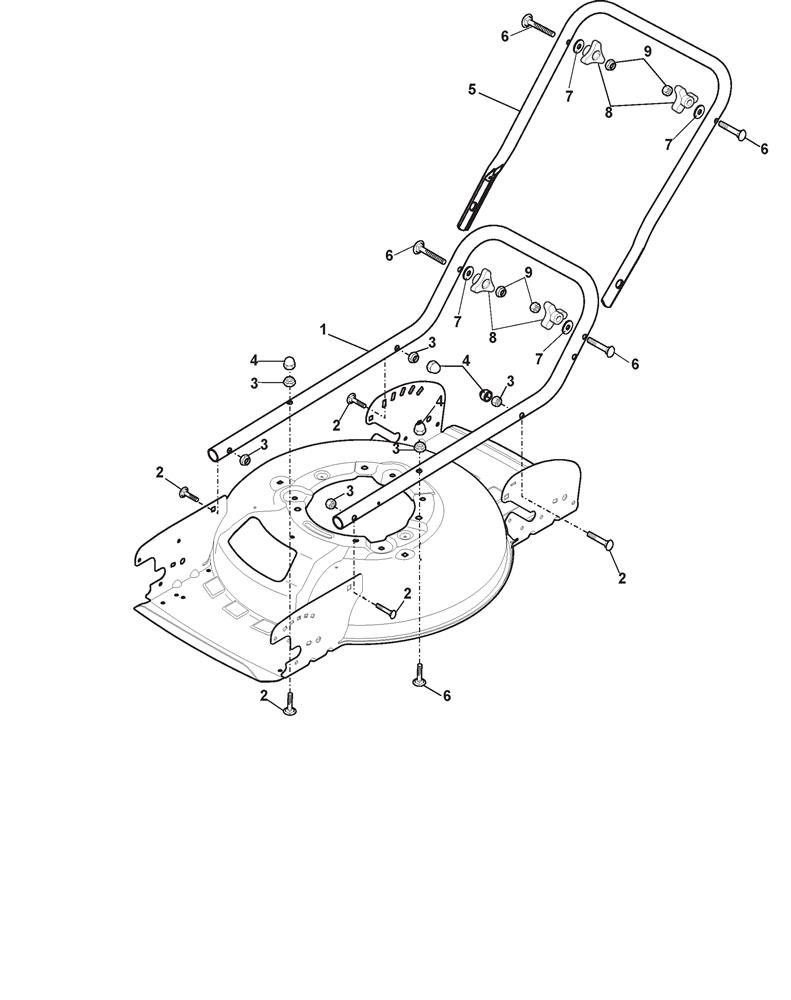

HANDLE, LOWER PART assembly details for Stiga MULTICLIP 47 SQ B (B&S 450E) 298472828/S15 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381007556/0LOWER HANDLE [YELLOW] MCS 47£39.01 Add to
002112818900/0SCREW TTDQ M8 x 35£1.97 Add to
003112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
004118203854/0NUT CAP M8 [BLACK]£2.06 Add to
005381007542/1MIDDLE HANDLE [YELLOW] MCS 50-47£42.53 Add to
006112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
007122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
008122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
009112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
