Volute Case, Air Filter, Starter Assy

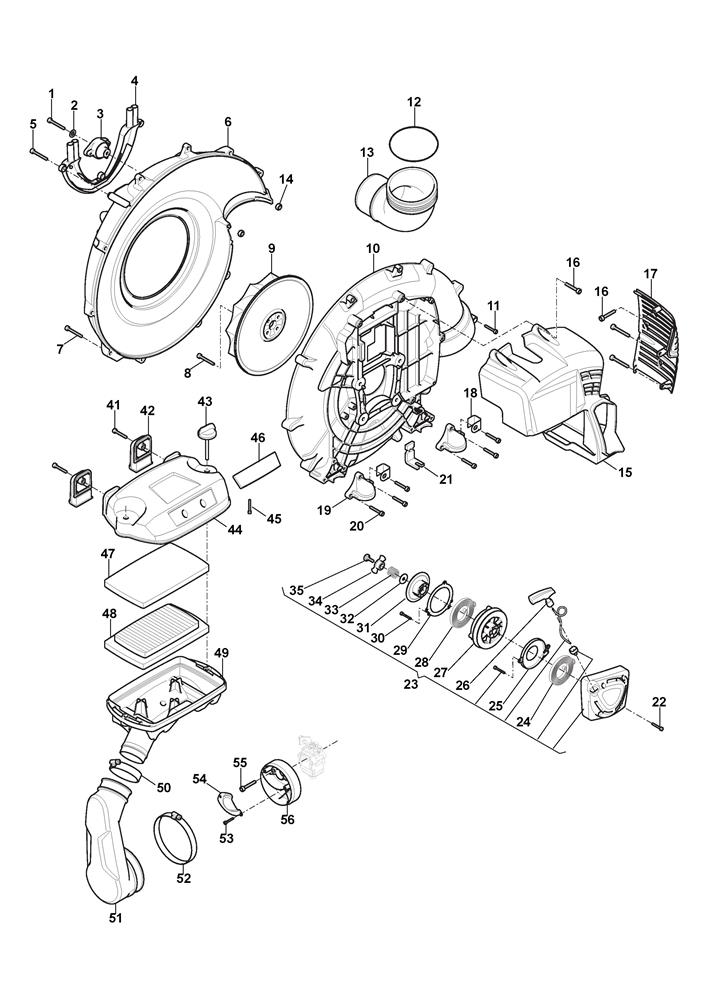

Volute Case, Air Filter, Starter Assy assembly details for Stiga SBP 375 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012135130TORX SCREW M5 x 35£1.79 Add to
002118804473/0WASHER PAD£4.10 Add to
003118804472/0SHOCK ABSORBER£5.38 Add to
004118804476/0COVER£5.52 Add to
005112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
006118804471/0FRONT SEMI-VOLUTE CASE£69.78 Add to
007118804413/0SELF-TAPPING SCREW 5 × 25 (OBSOLETE) (OBSOLETE)N/A
0082132180SCREW TCCE M6 x 25£1.79 Add to
009118804477/0FAN£32.99 Add to
010118804474/0BACK SEMI-VOLUTE CASE£79.98 Add to
0112135220SCREW (OBSOLETE)N/A
012118804502/0O RING 100 × 3.1£2.07 Add to
013118804469/0ELBOW PIPE£13.77 Add to
014112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
015118804428/0ENGINE COVER [YELLOW]£37.40 Add to
016112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
017118804429/0MUFFLER SHIELD£14.58 Add to
018118804417/0THROTTLE CABLE CLIP£3.64 Add to
019118804468/0ANTI-DROPPING CAP£1.58 Add to
020112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
021118804470/0THROTTLE CABLE BRACKET£4.10 Add to
0222135060TORX SCREW M5 x 25£2.00 Add to
023118804505/1RECOIL ASSEMBLY£49.06 Add to
024118804467/0RECOIL SPRING£4.10 Add to
025118804461/0SPRING COVER£2.47 Add to
026118804416/0STARTER HANDLE - STIGA YELLOW£5.21 Add to
027118804459/0RECOIL PULLEY£5.32 Add to
028118804466/0DAMPER SPRING£6.27 Add to
029118804464/0DAMPER SPRING COVER£2.47 Add to
030112735106/0SCREW£2.06 Add to
031118804460/0STARTER HUB£2.32 Add to
032112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
033118804462/0PRESSURE SPRING - NLA£1.50 Add to
034118804463/0STARTER HUB COVER£2.06 Add to
035118804465/0TIGHTENING SCREW£1.58 Add to
041112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
042118804447/0AIR FILTER SIDE COVER [YELLOW]£2.47 Add to
043118804453/0LOCK KNOB£2.74 Add to
044118804446/0AIR FILTER COVER [YELLOW]£21.26 Add to
045112735106/0SCREW£2.06 Add to
046118804448/0MARKING PLATE (STIGA)£2.87 Add to
047118804445/0SPONGE FILTER£3.00 Add to
048118804444/0PAPER AIR FILTER£9.85 Add to
049118804452/0AIR FILTER BASE£22.63 Add to
050118804449/0CLAMP 44-64£3.15 Add to
051118804443/0AIR INTAKE DUCT£16.91 Add to
052118804450/0CLAMP 80-100£3.41 Add to
053112735106/0SCREW£2.06 Add to
054118804442/0BAFFLE PLATE£2.18 Add to
055118810485/0SCREW£3.64 Add to
056118804451/0AIR INTAKE DUCT BASE£8.19 Add to
