Engine

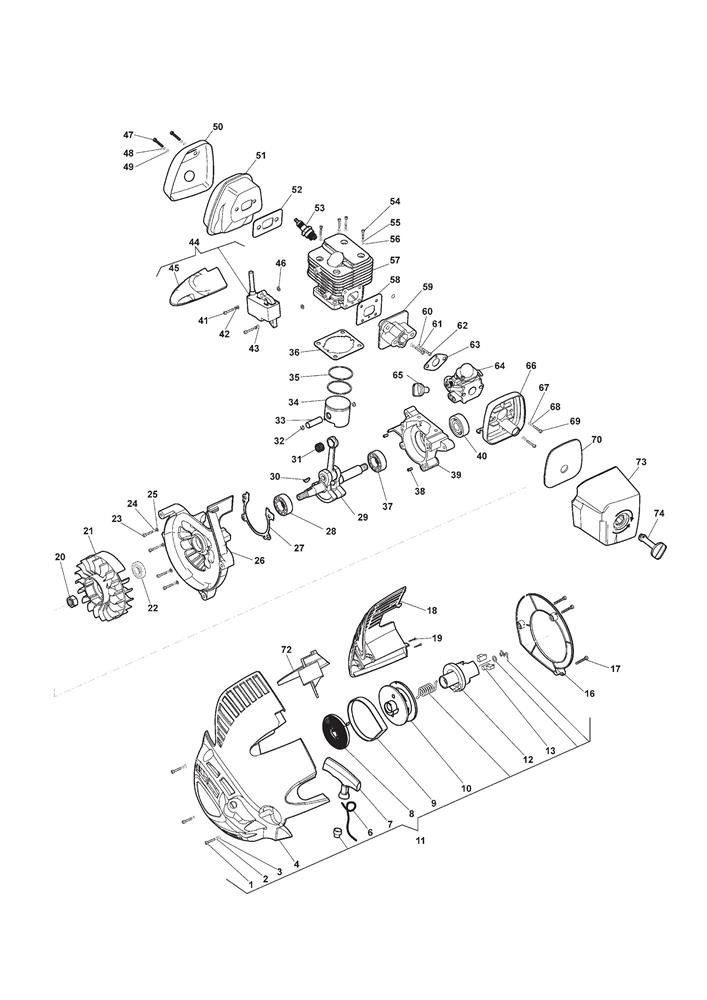

Engine assembly details for Stiga SBL 327 V 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012132550SCREW TCCE M5 x 25£1.79 Add to
003112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
004322055259/0RECOIL HOUSING [YELLOW]£18.35 Add to
006123234005/0STARTER CORD£1.79 Add to
007118803135/0RECOIL HANDLE [YELLOW]£9.15 Add to
008118803058/0RECOIL SPRING£5.46 Add to
009118803059/0COIL SPRING COVER (OBSOLETE)N/A
010118803060/0RECOIL PULLEY£3.69 Add to
011118803134/0RECOIL ASSEMBLY [YELLOW]£53.22 Add to
012118803061/0STARTER GEAR£3.55 Add to
013118803062/0STARTER PAWL£1.79 Add to
016118803063/0AIR DEFLECTOR£4.52 Add to
0172132500SCREW (OBSOLETE)N/A
018118803064/0MUFFLER COVER [GREY]£5.60 Add to
019112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
0201137-0155-01SPACER£4.52 Add to
021118803065/0FLYWHEEL£32.99 Add to
022118550599/0OIL SEAL 12 x 22 x 7£2.18 Add to
0232132550SCREW TCCE M5 x 25£1.79 Add to
025112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
026118803066/0CRANKCASE£20.45 Add to
027118803067/0CRANKCASE GASKET£2.32 Add to
0286981288BALL BEARING (OBSOLETE)N/A
029118803068/0CRANKSHAFT£41.16 Add to
0303151050FLYWHEEL KEY 3 x 5 x 12.65£6.14 Add to
031118803069/0NEEDLE BEARING D=8£3.41 Add to
032123202006/0CIRCLIP£1.79 Add to
033118803070/0PISTON PIN£2.18 Add to
034118803071/0PISTON£10.66 Add to
035118803072/0PISTON RING£2.87 Add to
036118803073/0CYLINDER GASKET£2.00 Add to
0376981288BALL BEARING (OBSOLETE)N/A
038118803074/0PIN 3 x 9£3.64 Add to
039118803075/0CRANKCASE£24.95 Add to
040118550599/0OIL SEAL 12 x 22 x 7£2.18 Add to
0412132510SCREW TCCE M4 x 22 - NLA£1.79 Add to
042112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
043112523000/1WASHER M4 4.3 X 12 X 1£1.98 Add to
044118803076/0IGNITION COIL£27.72 Add to
045118803076/0IGNITION COIL£27.72 Add to
0476981283SCREW OUTFIT£3.64 Add to
049112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
050118803079/0MUFFLER COVER£5.21 Add to
051118803080/0MUFFLER£43.89 Add to
052118803081/0MUFFLER GASKET£2.32 Add to
0533210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0542132550SCREW TCCE M5 x 25£1.79 Add to
056112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
057118803082/0CYLINDER£38.44 Add to
058118803083/0INTAKE MANIFOLD GASKET£2.61 Add to
059118803084/0INTAKE MANIFOLD£7.27 Add to
060112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0622132550SCREW TCCE M5 x 25£1.79 Add to
063118803085/0CARBURETTOR GASKET£2.74 Add to
064118804969/0CARBURETOR ASSY£29.78 Add to
065118803087/0KNOB - NLA£2.18 Add to
066118803088/0AIR FILTER BASE£7.92 Add to
067112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0696981104SCREW SET (OBSOLETE)N/A
070118803089/0AIR FILTER£4.90 Add to
072118804611/0RUBBER PAD£6.01 Add to
073322055261/0AIR FILTER COVER [YELLOW] (OBSOLETE)N/A
074118803090/0AIR FILTER KNOB£1.79 Add to
