Back-Pack Support, Harness, Fuel Tank

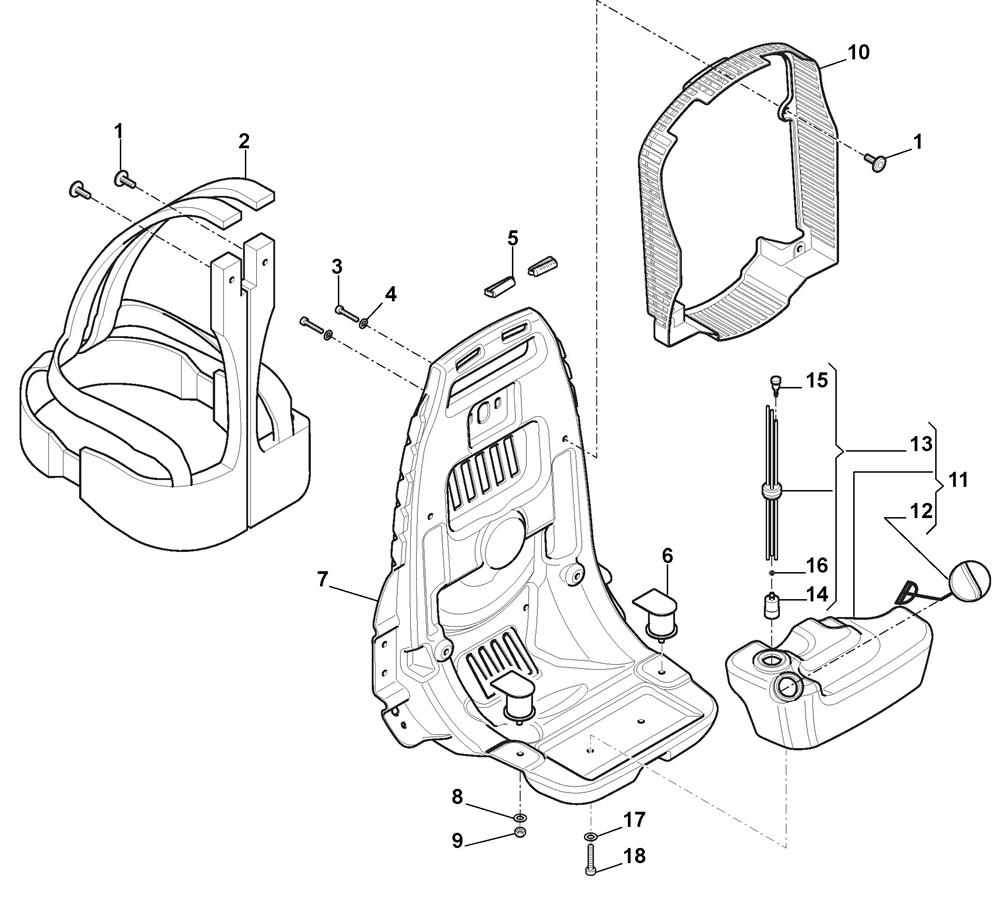

Back-Pack Support, Harness, Fuel Tank assembly details for Stiga SBP 375 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804500/0ROCK RIVET£1.50 Add to
002118804501/0BACK PAD HARNESS£67.70 Add to
003112760475/0SCREW TC M5 x 20£2.06 Add to
004112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
005118804499/0HARNESS RETAINER - NLA£1.50 Add to
006118804475/0ANTI-VIBRATION RUBBER£5.82 Add to
007118804497/0BACK-PACK SUPPORT£76.59 Add to
008112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010118804498/0BARRIER£14.58 Add to
011118804508/0FUEL TANK ASSEMBLY£46.61 Add to
012118804510/0FUEL TANK CAP£4.52 Add to
013118804509/0FUEL TANK HOSE£11.67 Add to
014118804414/0FUEL FILTER£5.12 Add to
015118804415/0VENT VALVE£4.35 Add to
016118804354/0TUBE CLAMP£3.89 Add to
017112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
0182135180TORX SCREW M5 x 12£1.79 Add to
