Crankshaft, Cylinder-Piston Assy, Carburetor

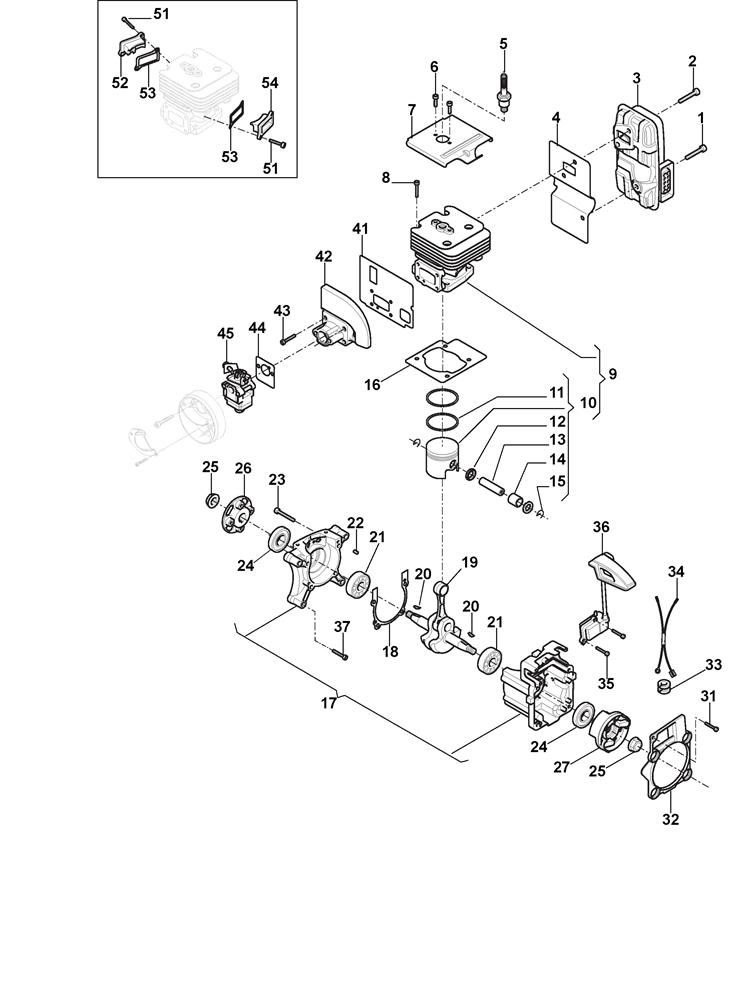

Crankshaft, Cylinder-Piston Assy, Carburetor assembly details for Stiga SBP 375 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012132180SCREW TCCE M6 x 25£1.79 Add to
0022132180SCREW TCCE M6 x 25£1.79 Add to
003118804454/0MUFFLER£78.39 Add to
004118804426/0MUFFLER GASKET£1.91 Add to
005123051000/0SPARK PLUG-CHAMPION RZ7C£5.21 Add to
0062653090SCREW M5X11,5£1.79 Add to
007118804423/0FLOW GUIDING PLATE£5.87 Add to
0082135060TORX SCREW M5 x 25£2.00 Add to
009118804507/0CYLINDER-PISTON ASSEMBLY£132.01 Add to
010118804506/0PISTON ASSEMBLY£27.88 Add to
011118804436/0PISTON RING£5.21 Add to
012118804439/0RETAINING RING£1.58 Add to
013118804437/0PISTON PIN£2.06 Add to
014118804440/0NEDDLE BEARING 12 × 16 × 15£5.87 Add to
015118804438/0RETAINING RING£1.74 Add to
016118804422/0CYLINDER GASKET£2.18 Add to
017118804504/0CRANKCASE KIT-NLA£98.08 Add to
018118804435/0CRANKCASE GASKET£2.18 Add to
019118804441/0CRANKSHAFT£70.06 Add to
0203151050FLYWHEEL KEY 3 x 5 x 12.65£6.14 Add to
021118800368/0BEARING£21.12 Add to
022118801158/0PIN 5x10£1.79 Add to
0232135130TORX SCREW M5 x 35£1.79 Add to
024118804418/0SEAL 15 × 30 × 7£4.82 Add to
0259739-1031-22NUT M10£2.32 Add to
026118804427/0OUTPUT CONNECTION£9.54 Add to
027118804458/0ROTATOR£23.54 Add to
0312122080SCREW TE M8 x 40£3.64 Add to
032118804431/0IGNITION COVER£5.73 Add to
033118804456/0IGNITION CABLE JACKET£1.74 Add to
034118804457/0WIRE£5.05 Add to
035123878021/0TORX SCREW M4 x 14£1.79 Add to
036118804455/0IGNITION COIL£35.67 Add to
037118804430/0SCREW M6 × 45£3.64 Add to
041118804424/0AIR INTAKE GASKET£3.69 Add to
042118804433/0AIR INTAKE FLANGE£17.02 Add to
0432135050TORX SCREW M5 x 30£1.79 Add to
044118804425/0CARBURETTOR GASKET£1.79 Add to
045118804434/0CARBURETTOR£60.46 Add to
0512122080SCREW TE M8 x 40£3.64 Add to
052118804420/0CYLINDER REAR PLUG£4.52 Add to
053118804421/0PLUG GASKET£1.58 Add to
054118804419/0CYLINDER FRONT PLUG£4.52 Add to
