Transmission (1)

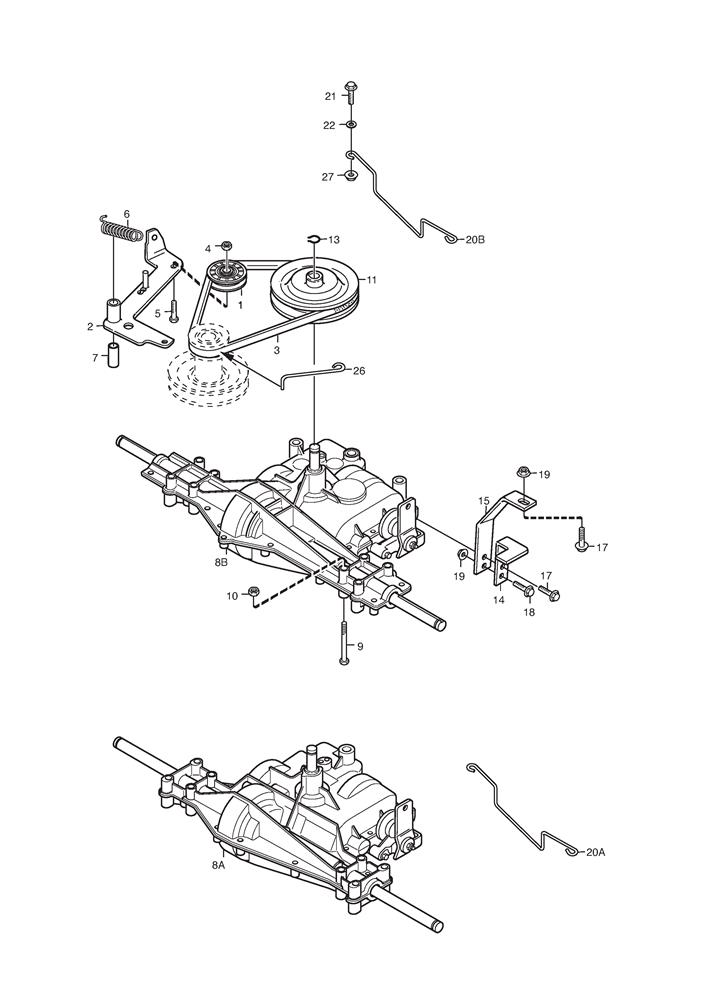

Transmission (1) assembly details for Stiga Park Compact 13. 13-6101-19 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387605008/0TENSION PULLEY [GREY]£35.71 Add to
0021134-2015-04TENSION ARM£41.97 Add to
0031134-9013-01TRANSMISSION BELT£27.27 Add to
004112295200/0HEXAGON NUT M10£1.79 Add to
0059997-1030-16SCREW M6S M10 x 30£3.00 Add to
0061134-4337-01SPRING£11.98 Add to
0071134-1565-01SPACER£14.58 Add to
008A1134-6349-01TRANSAXLE (DANA 6800-8)£1,409.14 Add to
008B1134-6349-01TRANSAXLE (DANA 6800-8)£1,409.14 Add to
0099960-0860-12SCREW M8 x 60£2.32 Add to
0099997-0870-16SCREW M6S M8 x 70£2.47 Add to
010112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0111134-3182-01BELT PULLEY£252.38 Add to
013112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
017112735595/0SCREW£4.01 Add to
0189959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0219959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
022112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0261134-3289-02BELT GUIDE£21.40 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
