Wheels

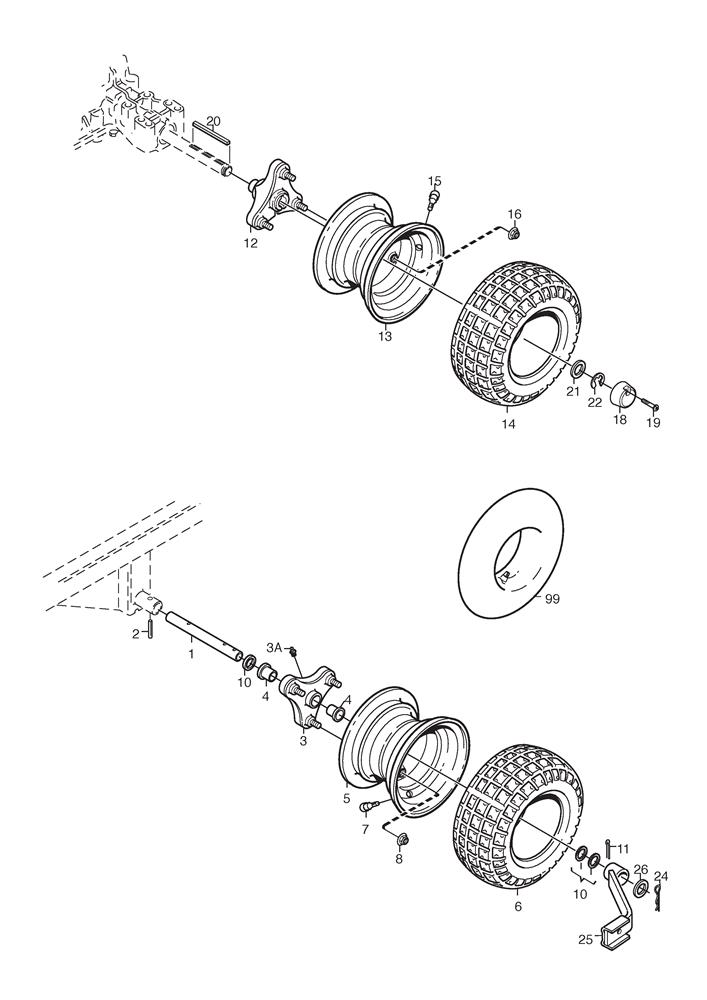

Wheels assembly details for Stiga Park Compact 13. 13-6101-19 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-0075-01	FRONT AXLE	£45.26	Add to
002	112645710/0	ROLL PIN D=6 x 32	£2.47	Add to
003	1134-4844-05	WHEEL HUB ASSEMBLY	£60.24	Add to
003A	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
004	137038009/0	WHEEL BUSH	£6.09	Add to
005	1134-5255-01	RIM	£107.93	Add to
006	9545-0126-01	TYRE 16 x 6.00-8	£72.50	Add to
007	125950000/0	PNEUMATIC VALVE	£5.73	Add to
008	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
010	1134-0341-01	WASHER	£7.10	Add to
011	9599-0080-02	COTTER PIN	£2.47	Add to
012	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
013	1134-5255-01	RIM	£107.93	Add to
014	9545-0126-01	TYRE 16 x 6.00-8	£72.50	Add to
015	125950000/0	PNEUMATIC VALVE	£5.73	Add to
016	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
018	1134-4796-01	HUB CAP	£5.46	Add to
019	9947-0540-19	SCREW	£2.06	Add to
020	1134-2471-01	KEY	£9.41	Add to
020	1134-2471-03	KEY	£8.87	Add to
021	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
022	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
024	9598-0003-02	SPRING PIN	£2.32	Add to
025	1134-3710-01	ATTACHMENT ARM [2WD]	£34.64	Add to
026	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
