Frame

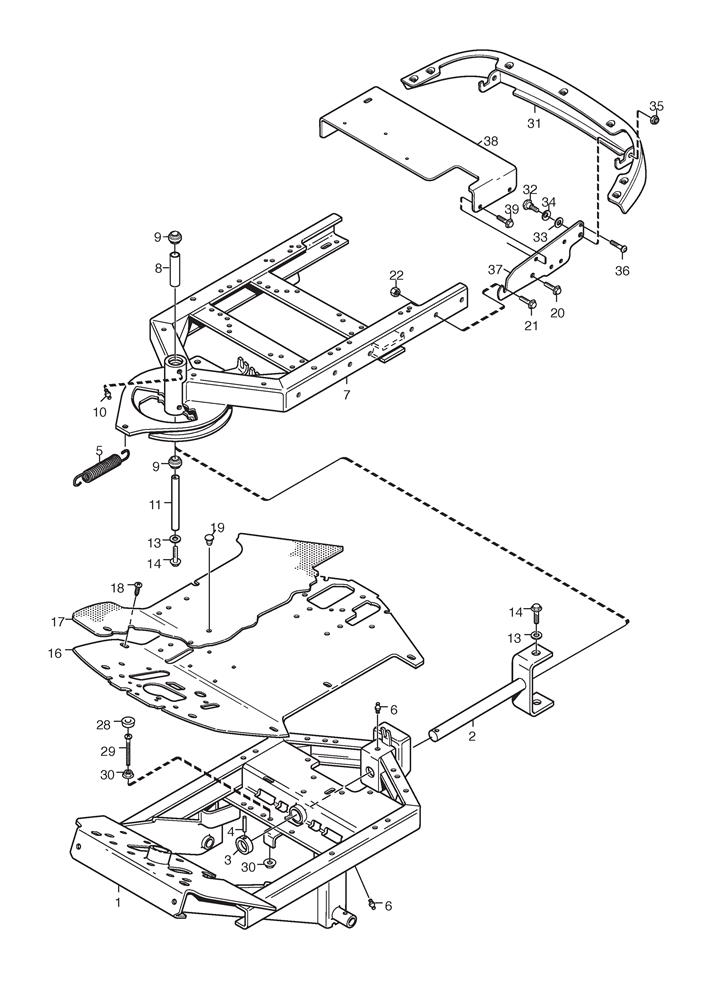

Frame assembly details for Stiga Park Compact 14 (13-6102-19) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387800011/0	FRONT FRAME ASSEMBLY [2WD]	£811.06	Add to
002	1137-1119-02	CLEVIS FORK	£170.61	Add to
003	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
005	1134-2171-01	SPRING	£20.53	Add to
006	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
007	1134-6466-02	REAR FRAME ASSEMBLY	£490.85	Add to
007	1134-6466-02	REAR FRAME ASSEMBLY	£490.85	Add to
008	1134-5705-01	SPACER	£19.36	Add to
009	9547-0001-00	BEARING	£24.95	Add to
010	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
011	1134-5988-01	CENTRE SHAFT	£22.76	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
016	1134-6586-01	FLOOR PLATE	£170.61	Add to
017	114369182/3	SAFETY FLOOR MAT	£64.32	Add to
017	114369182/3	SAFETY FLOOR MAT	£64.32	Add to
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	9403-0048-70	COVER PLUG	£9.68	Add to
020	9945-0816-16	SCREW M8 X 16	£2.54	Add to
021	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
029	9950-0570-12	SCREW M5 x 70	£2.74	Add to
030	9739-0531-22	NUT M5	£2.47	Add to
031	1134-5337-02	REAR BUMPER [GREY]	£211.50	Add to
032	1134-0240-00	SCREW	£9.14	Add to
033	1134-4242-01	SPACER WASHER	£4.78	Add to
034	9665-0002-00	BOWL WASHER	£2.61	Add to
035	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
036	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
039	9945-0816-16	SCREW M8 X 16	£2.54	Add to
