Body Work

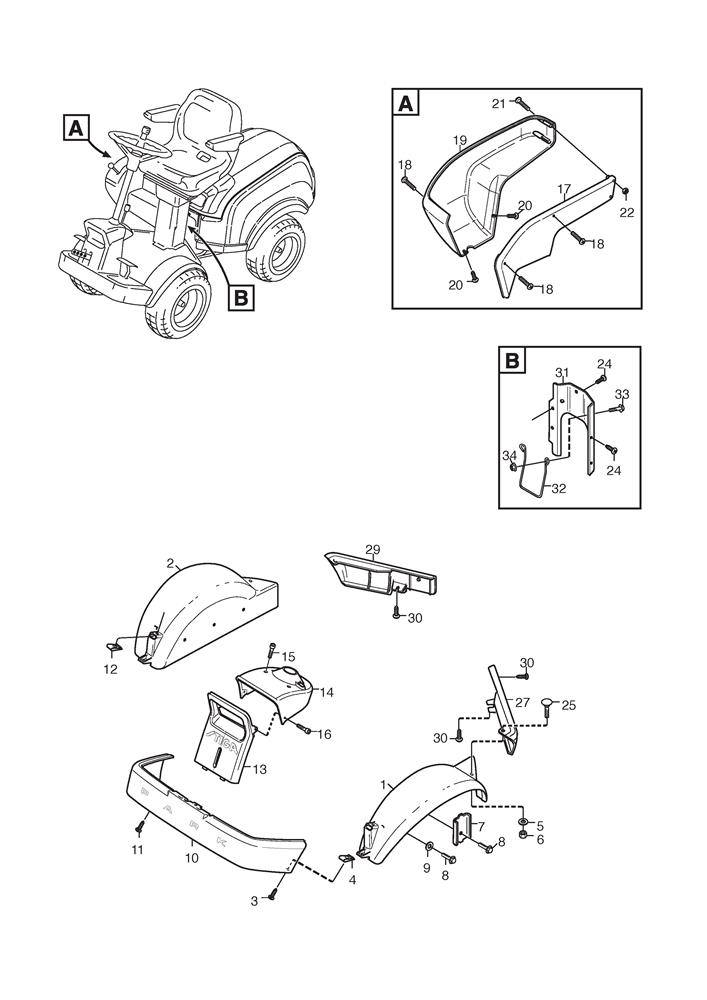

Body Work assembly details for Stiga Park Prestige 4WD (13-6185-14) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3943-01	MUD GUARD-LEFT	£117.47	Add to
002	1134-3943-02	MUD GUARD-RIGHT	£117.47	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-4176-01	CLIP	£5.19	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	1134-0225-00	SUPPORT PLATE	£11.18	Add to
008	9945-0816-16	SCREW M8 X 16	£2.54	Add to
009	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
011	9893-0616-16	SCREW M6 x 16	£2.47	Add to
012	9893-0616-16	SCREW M6 x 16	£2.47	Add to
013	1134-4216-05	FRONT PLATE-YELLOW (W/O HOLE)	£68.42	Add to
014	1134-3984-03	UPPER FRONT PLATE-YELLOW	£64.32	Add to
015	9946-0525-16	SCREW M5 x 25	£2.47	Add to
016	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
016	9840-8019-16	SCREW	£2.47	Add to
017	1134-4360-01	INNER COVER	£67.05	Add to
018	9946-0525-16	SCREW M5 x 25	£2.47	Add to
019	1134-3979-01	OUTER COVER	£102.48	Add to
020	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
020	9840-8019-16	SCREW	£2.47	Add to
021	9950-0570-12	SCREW M5 x 70	£2.74	Add to
022	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
024	9893-0616-16	SCREW M6 x 16	£2.47	Add to
025	1134-3970-05	LEFT MOULDING [GREY]	£58.87	Add to
027	1134-3970-05	LEFT MOULDING [GREY]	£58.87	Add to
029	1134-3970-02	RIGHT MOULDING [GREY]	£58.87	Add to
030	9893-0616-16	SCREW M6 x 16	£2.47	Add to
031	1134-6461-01	REAR PLATE	£34.35	Add to
032	1134-6460-01	PROTECTIVE LOOP	£13.77	Add to
033	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
034	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
