Power Take-Off

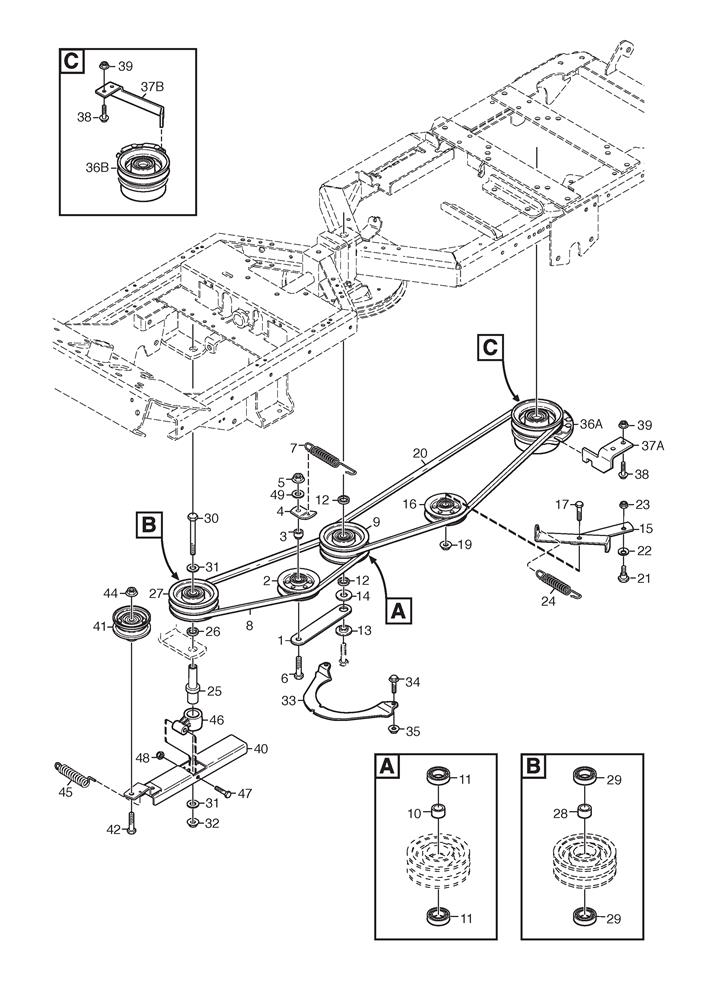

Power Take-Off assembly details for Stiga Park Pro Svan 4WD (13-6241-24) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-1730-01	TENSIONING WHEEL ARM	N/A	POA
002	1134-3663-01	TENSION PULLEY	£56.36	Add to
003	1134-1888-05	SPACER	£9.14	Add to
004	1134-1893-01	SPRING ATTACHMENT	£11.27	Add to
005	9739-1031-22	NUT M10	£2.32	Add to
006	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
007	1134-5713-01	SPRING	£13.08	Add to
008	1134-9098-01	PTO DRIVE BELT [4WD]	£27.27	Add to
009	1134-1769-03	CENTRE BELT PULLEY	N/A	POA
009	1134-1769-03	CENTRE BELT PULLEY	N/A	POA
010	1134-0051-09	SPACER	£14.05	Add to
011	9549-0019-00	BALL BEARING	N/A	POA
012	1134-0052-00	SPACER	£8.87	Add to
013	1134-0222-00	TENSION WASHER	£14.45	Add to
014	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
015	1134-5742-01	TENSION ARM	£41.16	Add to
016	1134-3663-01	TENSION PULLEY	£56.36	Add to
017	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
020	1134-9097-01	PTO DRIVE BELT	£52.06	Add to
021	1134-0240-00	SCREW	£9.14	Add to
022	9665-0002-00	BOWL WASHER	£2.61	Add to
023	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
024	1134-5713-03	SPRING	£13.40	Add to
025	1134-5663-01	SHAFT	£43.93	Add to
026	1134-0052-00	SPACER	£8.87	Add to
028	1134-0051-09	SPACER	£14.05	Add to
030	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
031	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
032	9739-1031-22	NUT M10	£2.32	Add to
033	1134-3654-01	GUARD	£35.71	Add to
034	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
035	9739-0631-22	NUT	N/A	POA
036A	1134-5673-01	MAGNET CLUTCH	N/A	POA
036A	1134-7430-01	MAGNET CLUTCH	£293.25	Add to
037A	1134-5664-01	TORQUE PLATE	£19.93	Add to
038	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	1134-5660-01	TENSION ARM	£42.83	Add to
041	1134-5823-01	TENSION PULLEY	£49.92	Add to
042	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
044	9739-1031-22	NUT M10	£2.32	Add to
045	1134-5824-01	SPRING	£5.87	Add to
046	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
047	9997-0645-12	SCREW	N/A	POA
048	9747-0631-02	LOCK NUT	N/A	POA
049	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
