Seat

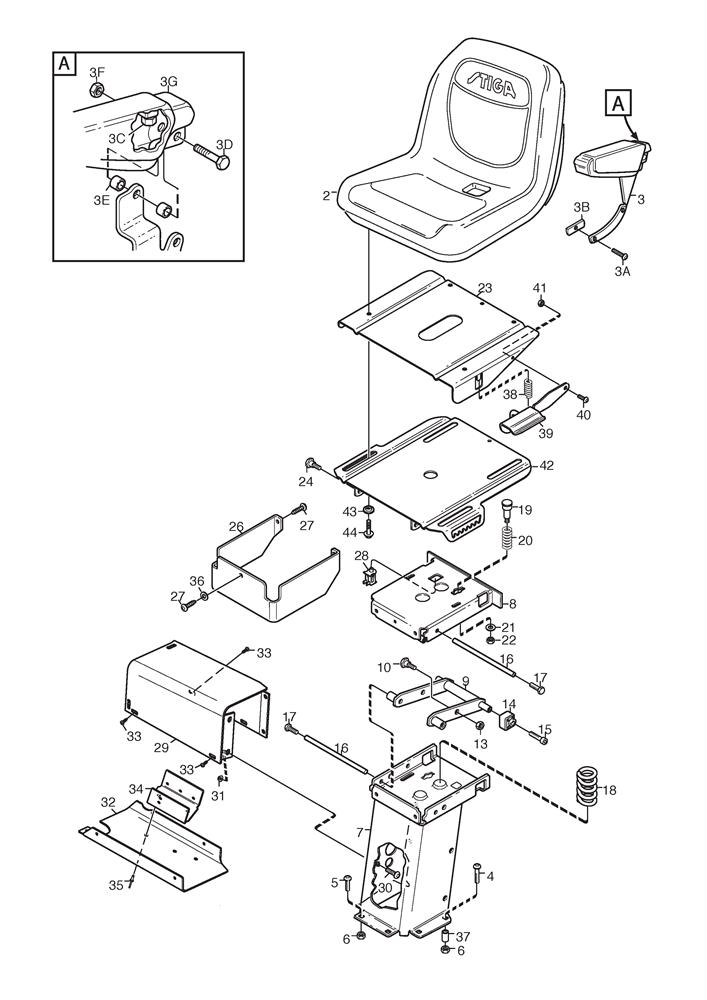

Seat assembly details for Stiga Park Pro Svan 4WD (13-6241-24) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002137722602/1SEAT [PARK]£423.06 Add to
0031134-7831-01ARM REST ASSEMBLY KIT£187.79 Add to
003A1134-5095-01SCREW-ARM RESTS£6.16 Add to
003B1134-5096-01NUT ARM RESTS£3.64 Add to
003C9988-3713-16SCREW U6S 3/8UNCX13£4.59 Add to
003D9988-3745-12SCREW U6S 3/8UNCX45£3.64 Add to
003E1134-5094-01SPACER-ARM RESTS£10.77 Add to
003F9795-3731-02NUT£3.17 Add to
003G1134-7831-01ARM REST ASSEMBLY KIT£187.79 Add to
0049897-0880-12SCREW MVBF 8 x 80£2.32 Add to
0059897-0820-16SCREW M8 x 20£2.32 Add to
006112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0071134-5695-02SEAT BRACKET£266.01 Add to
0081134-6080-01UPPER PLATE£86.13 Add to
0091134-6076-01PIVOT LINK£91.58 Add to
0101134-0240-00SCREW£9.14 Add to
013112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0141134-4084-01SLIDE BLOCK£16.50 Add to
0159939-0816-16SCREW MC6S M8X16£7.23 Add to
0161134-4082-03SHAFT£73.87 Add to
0179959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0181134-4160-01SEAT SPRING£24.95 Add to
0191134-4153-01PUSH PIN£18.27 Add to
0201134-4159-01SPRING£10.65 Add to
021112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
022112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0231134-6090-01UPPER SLIDE PLATE£99.76 Add to
0241134-0240-00SCREW£9.14 Add to
0261134-6121-01COVER£54.48 Add to
0279852-8013-16SCREW£2.47 Add to
0281134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0291134-3990-01ATTACHMENT-SIDE PANEL£164.18 Add to
0309897-0820-16SCREW M8 x 20£2.32 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0321134-4130-01LOWER COVER YELLOW STIGA£41.16 Add to
0339840-8019-16SCREW£2.47 Add to
0341134-4135-01RELAY HOLDER£17.04 Add to
0359632-0522-00POP RIVET£2.47 Add to
0369699-0087-02WASHER 5.3 x 16 x 2£2.47 Add to
0371134-1565-08SPACER£9.94 Add to
0381134-3262-01SPRING£8.73 Add to
0391134-6073-01HANDLE ASSEMBLY£41.16 Add to
0409893-0616-16SCREW M6 x 16£2.47 Add to
041112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0421137-0055-01LOWER SLIDE PLATE£98.40 Add to
0431134-6078-01FLANGE WASHER£5.87 Add to
0449959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
