Body Work 1

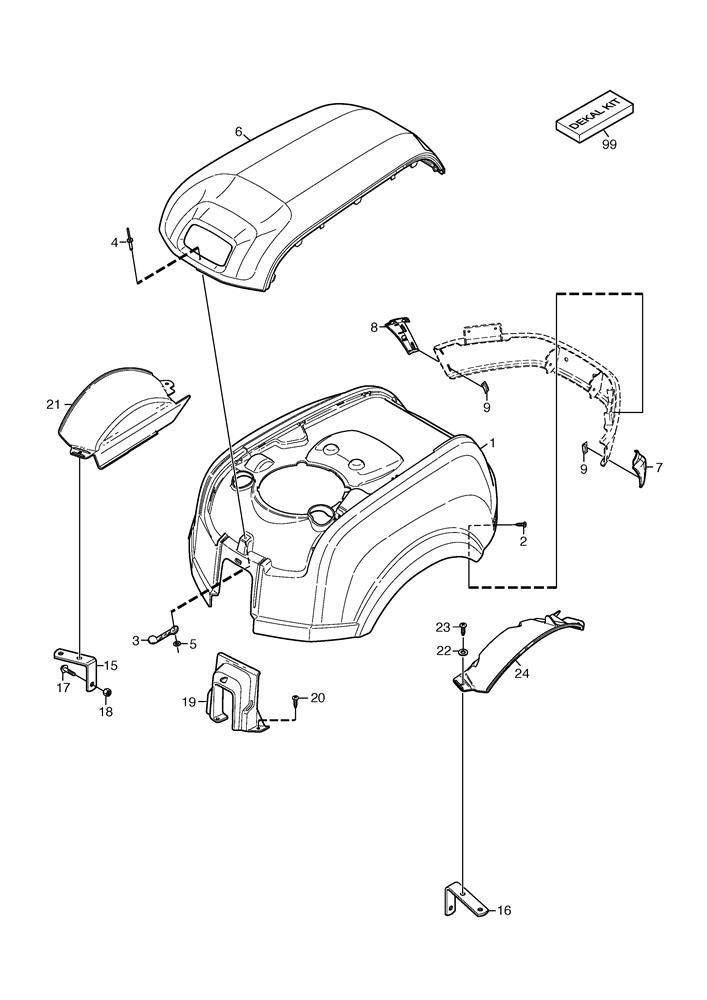

Body Work 1 assembly details for Stiga Park Ranger (13-6179-04) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6025-01	ENGINE HOOD [YELLOW]	£346.76	Add to
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
004	9632-0513-00	POP RIVET 3.2 x 20	£2.06	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
006	1134-6026-01	ENGINE COVER [GREY]	£88.85	Add to
007	1134-6027-01	BUMPER END-LH	£16.38	Add to
008	1134-6027-02	BUMPER END-RH	£15.81	Add to
009	1134-6310-01	CLIP	£2.32	Add to
015	1134-4012-03	RIGHT BRACKET	£18.82	Add to
016	1134-4012-04	LEFT BRACKET	£18.82	Add to
017	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	1134-6241-01	HOOD SUPPORT	£42.53	Add to
020	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	1134-4800-01	INNER MUDGUARD-RH (PARK)	£120.11	Add to
022	9699-0060-02	USE 112523040/0	N/A	POA
023	9893-0616-16	SCREW M6 x 16	£2.47	Add to
024	1134-4801-01	INNER MUDGUARD-LH (PARK)	£120.11	Add to
099	1134-6443-04	LABEL	N/A	POA
