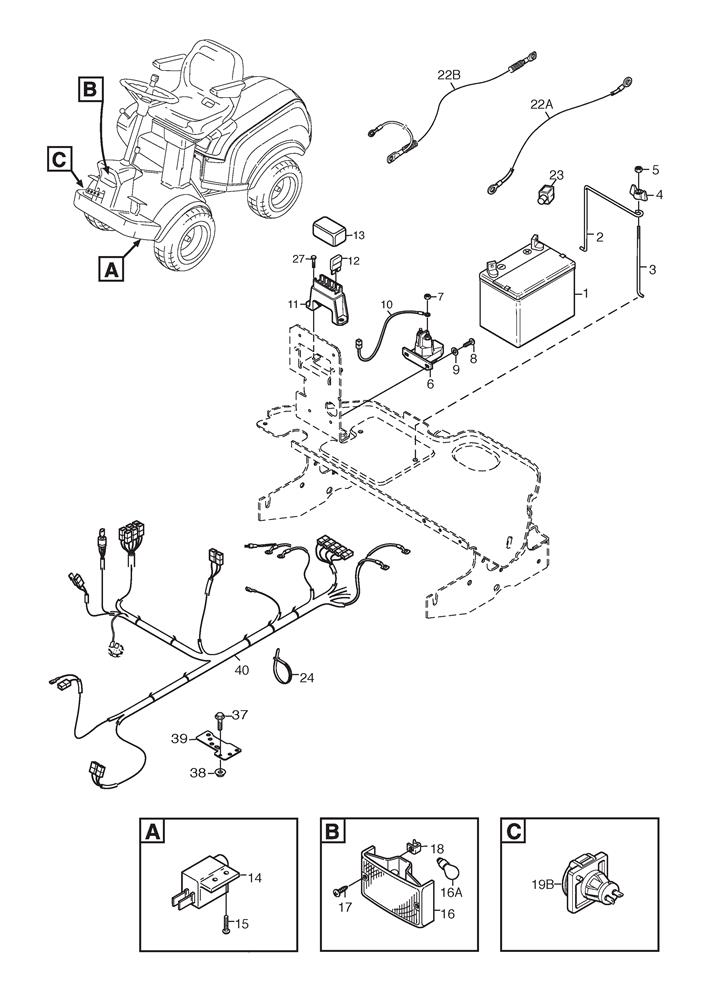

Electrical System assembly details for Stiga Park Ranger (13-6179-04) 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
002	1134-5994-01	BATTERY LOOP	£9.82	Add to
003	1134-5995-01	BATTERY LOOP	£6.55	Add to
004	1134-4481-02	WING NUT	£6.14	Add to
005	9747-0631-02	LOCK NUT	N/A	POA
006	118736112/0	SOLENOID	£39.80	Add to
007	9794-5131-02	Nut	N/A	POA
008	9852-8013-16	SCREW	£2.47	Add to
009	9699-0060-02	USE 112523040/0	N/A	POA
010	1134-4970-02	CABLE	£23.45	Add to
011	1134-3491-01	FUSE HOLDER	£13.90	Add to
012	133340040/0	FUSE 10A	£2.47	Add to
012	1134-3496-06	FUSE 20A	£2.06	Add to
012	1134-3496-07	FUSE 30A	£5.05	Add to
013	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
014	1134-3399-02	SWITCH	£45.26	Add to
015	9943-0516-16	SCREW	£2.40	Add to
016	1134-4172-01	HEADLAMP ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
016A	9400-0293-01	BULB	N/A	POA
017	9849-7819-16	SCREW	N/A	POA
018	1134-4177-01	CLIPS	£5.19	Add to
019B	1134-6291-01	FEMALE CONNECTOR ASSY	N/A	POA
022A	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
023	1134-2310-01	GUARD CAP (+)	£9.28	Add to
024	9579-0003-00	CABLE HOLDER	£2.06	Add to
027	9849-8006-16	SCREW B10 X 6.5 (OBSOLETE)	N/A
037	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
038	9739-0631-22	NUT	N/A	POA
039	1134-6454-01	GROUND PLATE	£15.41	Add to
040	1134-6469-01	WIRE HARNESS	N/A	POA
