Steering

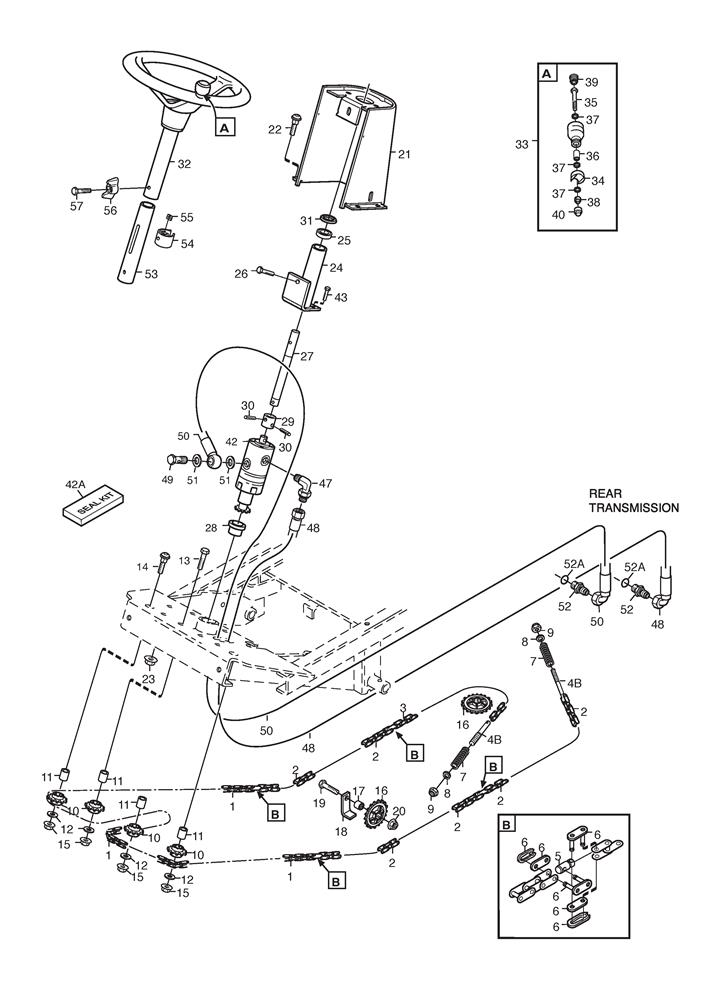

Steering assembly details for Stiga Park Ranger (13-6193-04) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187000351/0	STEERING CHAIN 83M ELITE PC-PCH W/SERVO	£35.71	Add to
002	1134-6374-02	CHAIN 41	N/A	POA
003	1134-6374-04	CHAIN (45 LINKS)	£16.10	Add to
004A	1134-3550-01	END NIPPLE [L=110]	£18.53	Add to
004B	1134-3550-02	END NIPPLE [L=90]	£18.27	Add to
005	137510324/0	CHAIN CONNECTION PIN	£7.10	Add to
006	187060100/1	STEERING CHAIN LOCK	£7.62	Add to
007	1134-3817-02	COMPRESSION SPRING	£12.68	Add to
008	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
009	9747-0831-02	LOCK NUT	N/A	POA
010	1134-2816-01	SPROCKET	£10.77	Add to
011	1134-0041-02	BUSH	£10.09	Add to
012	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
013	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
014	9897-1040-12	SCREW M10 x 40	£3.49	Add to
015	9739-1031-22	NUT M10	£2.32	Add to
016	1134-3547-01	SPROCKET	£12.96	Add to
017	1134-0041-01	BUSH	£9.41	Add to
018	1134-0046-00	BRACKET	£2.14	Add to
019	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
020	9739-1031-22	NUT M10	£2.32	Add to
021	1134-4120-04	STEERING CONSOLE	N/A	POA
022	9897-0820-16	SCREW M8 x 20	£2.32	Add to
023	9739-0831-22	NUT	N/A	POA
024	1134-4113-02	STEERING TUBE- LOWER	N/A	POA
025	9549-0017-00	BALL BEARING	£12.14	Add to
026	9945-0816-16	SCREW M8 X 16	£2.54	Add to
027	1134-4087-01	STEERING ROD	N/A	POA
028	1134-4114-01	BUSH	£19.93	Add to
029	1134-4118-01	COUPLING	£22.49	Add to
030	9595-0256-01	LOCATING PIN	£2.47	Add to
031	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
032	1134-5173-02	STEERING WHEEL C/W KNOB	£191.06	Add to
033	1134-3769-01	STEERING WHEEL BUTTON KIT	£37.08	Add to
034	1134-3752-01	KNOB HOLDER	£7.13	Add to
035	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
036	1134-1565-06	SPACER	£11.32	Add to
037	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
038	9747-0831-02	LOCK NUT	N/A	POA
039	9403-0043-70	PLUG	£5.06	Add to
040	9403-0113-00	RING NUT	N/A	POA
042	1134-6420-01	STEERING BOOSTER	N/A	POA
042A	1139-2074-01	SEAL KIT (STEERING BOOSTER) (OBSOLETE)	N/A
043	9939-0612-16	SCREW M6 x 12	£2.32	Add to
047	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
048	1134-6822-01	HYDRAULIC TUBE	N/A	POA
049	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
050	1134-6821-01	HYDRAULIC TUBE	N/A	POA
051	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
052	1134-4282-01	HYDRAULIC NIPPLE	£46.61	Add to
052A	9404-0028-01	O RING 11.89 x 1.98	£4.78	Add to
053	1134-5216-01	INNER STEERING TUBE	£87.50	Add to
054	1134-5177-01	SLIDE COLLAR	£13.64	Add to
055	9710-0631-12	SQUARE NUT	£3.55	Add to
056	1134-4481-02	WING NUT	£6.14	Add to
057	9997-0630-12	Screw	N/A	POA
